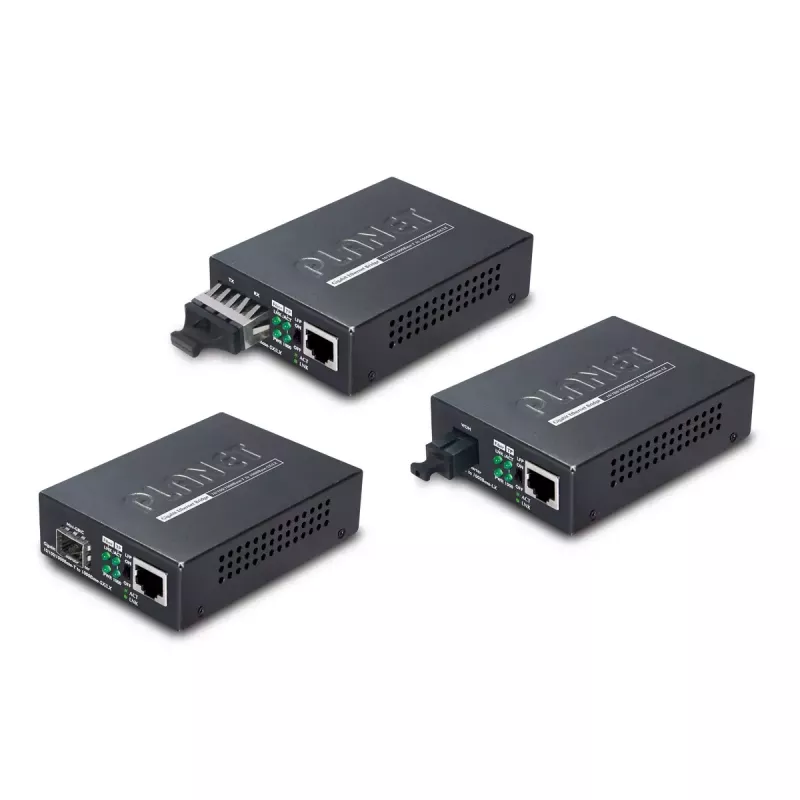

Network Media Converter PLANET GT-806A15

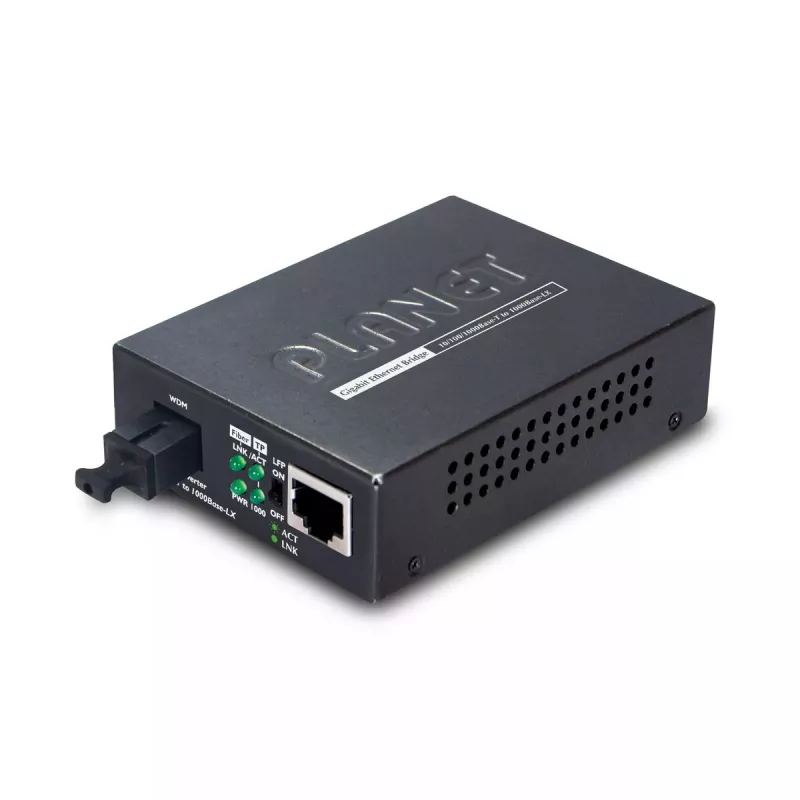

The PLANET GT-806A15 is a Gigabit network media converter that provides conversion between 10/100/1000BASE-T copper Ethernet and 1000BASE-LX fiber links using an SC connector. Designed for long-distance fiber transmission, this model supports a maximum transfer distance of 15,000 m at a wavelength of 1310 nm, complies with IEEE 802.3 standards and is suitable for use as a standalone unit or as a slide-in module for PLANET 19-inch media chassis. It accepts 5 V input and has low power consumption of 4.6 W, offering a compact, black housing with one RJ45 port and SC fiber port.

Advantages

The GT-806A15 enables high-speed Gigabit conversion between copper and fiber with stable long-distance performance and low power consumption. Its compliance with IEEE 802.3 standards ensures interoperability with existing Ethernet equipment. The converter supports auto MDI/MDI-X on the TP port and configurable Link Fault Pass-Through (LFP) via DIP switch, providing immediate link-failure signaling (LLCF/LLR) for more effective network monitoring. Installation is simple with Plug and Play operation and options for standalone power or chassis-mounted deployment.

Suitable for

• Extending Ethernet links over long-distance fiber runs (up to 15,000 m)
• Connecting Gigabit Ethernet devices to 1000BASE-LX fiber networks
• Integration into network racks using 19-inch media converter chassis
• Small office or branch deployments requiring low-power media conversion

Key specifications

• Model: PLANET GT-806A15
• Ethernet LAN (RJ-45) ports: 1
• Ethernet interface: Gigabit Ethernet (10/100/1000 Mbps)
• Fiber connector: SC (1000BASE-LX)
• Maximum transfer distance: 15,000 m
• Wavelength: 1310 nm
• Maximum data transfer rate: 2000 Mbit/s
• Input voltage: 5 V
• Power consumption: 4.6 W
• Product colour: Black
• Weight: 0.2 kg

How to use

Mount the GT-806A15 as a standalone unit using its DC adapter or slide it into a compatible PLANET 19-inch media converter chassis for centralized power and rack installation. Connect the copper device to the RJ45 port and the fiber link to the SC port, ensuring correct fiber type and connectors. Configure the DIP switch to enable or disable Link Fault Pass-Through (LFP) as required for your monitoring setup; use the auto MDI/MDI-X feature on the TP port for straightforward connection to equipment without manual crossover cabling. After connections are made, power the unit and verify link LEDs to confirm successful link negotiation.

Recommendations

Use single-mode fiber and appropriate SC connectors for long-distance runs, verify the 1310 nm wavelength compatibility with remote transceivers, and enable LFP (LLCF/LLR) when you need immediate detection of link failures. Ensure the device is installed in a ventilated area and, when possible, use a PLANET media converter chassis for centralized power and easier maintenance.
