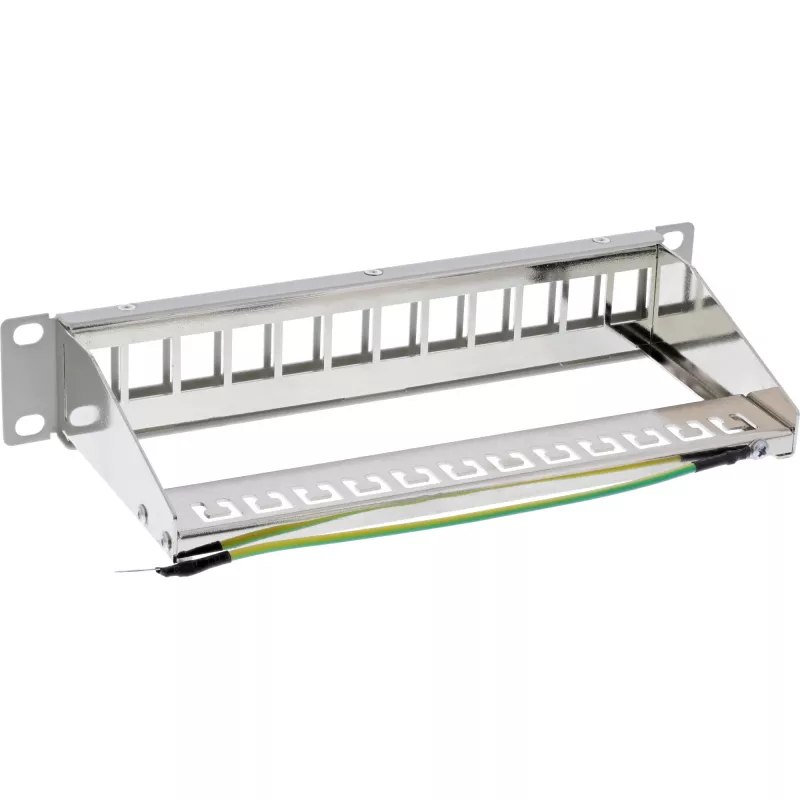

InLine 10 inch Patchpanel empty panel 12-way, for Keystone modules, 1U grey

The InLine 10" 12-way patch panel is an empty panel designed for Keystone snap-in modules. It fits a standard 1U rack space and is suitable for use with Cat5, Cat6 and Cat6a keystone jacks, providing a compact and organized solution for terminating and routing network connections. The panel has a grey finish and supports up to 12 keystone modules for flexible port configuration.

Advantages

The panel allows flexible configuration by accepting standard Keystone snap-in modules and supports common twisted-pair cable categories (Cat5, Cat6, Cat6a). Its 1U form factor is compatible with standard rack systems and helps consolidate multiple connections in a single, space-saving unit. The neutral grey colour provides a professional look suitable for server rooms and telecommunications cabinets.

Suitable for

Key specifications

How to use

Install the patch panel into a standard 19" rack occupying 1U of vertical space. Snap in the desired Keystone modules into the panel openings, then terminate Ethernet cables to the back of each keystone jack following the jack manufacturer's wiring scheme (T568A or T568B). Route and secure patch cords or permanent links from the front ports to network devices or distribution points as required.

Recommendations

Use appropriate cable management and labeling to maintain clear identification of each port. Ensure keystone modules used are rated for the target cable category (Cat5/Cat6/Cat6a) and follow standard installation practices to preserve signal integrity.
