i-tec TB5 Triple Display Docking Station, 2x Thunderbolt 5, DP 2.1, 6x USB, M.2 NVMe slot, 2.5G LAN, SD/microSD, Audio, PD 140W

The i-tec TB5 Triple Display Docking Station (TB5TRIPLEDOCKM2PD) is a high-end Thunderbolt 5 dock that turns a single cable into a complete desktop workstation. With up to 120 Gbps of Thunderbolt 5 bandwidth, it drives up to three external displays, charges your laptop with up to 140 W of Power Delivery, and even adds an internal M.2 NVMe SSD slot for fast on-dock storage.

Advantages

Thunderbolt 5 doubles the headroom of previous generations, so demanding multi-monitor and high-resolution setups run smoothly. A built-in M.2 NVMe PCIe Gen 4x4 slot lets you fit your own SSD for read/write speeds up to 7000 MB/s, while 2.5 Gigabit Ethernet, a full set of USB ports, dual card readers and a combo audio jack cover every accessory on your desk.

Suitable for

• Creative professionals editing 8K video or high-resolution photos on multiple screens
• Engineers, developers and analysts running triple-monitor workstations
• Hybrid and office workers who want one-cable docking with fast charging
• Users who need extra NVMe storage and 2.5G wired networking at the desk

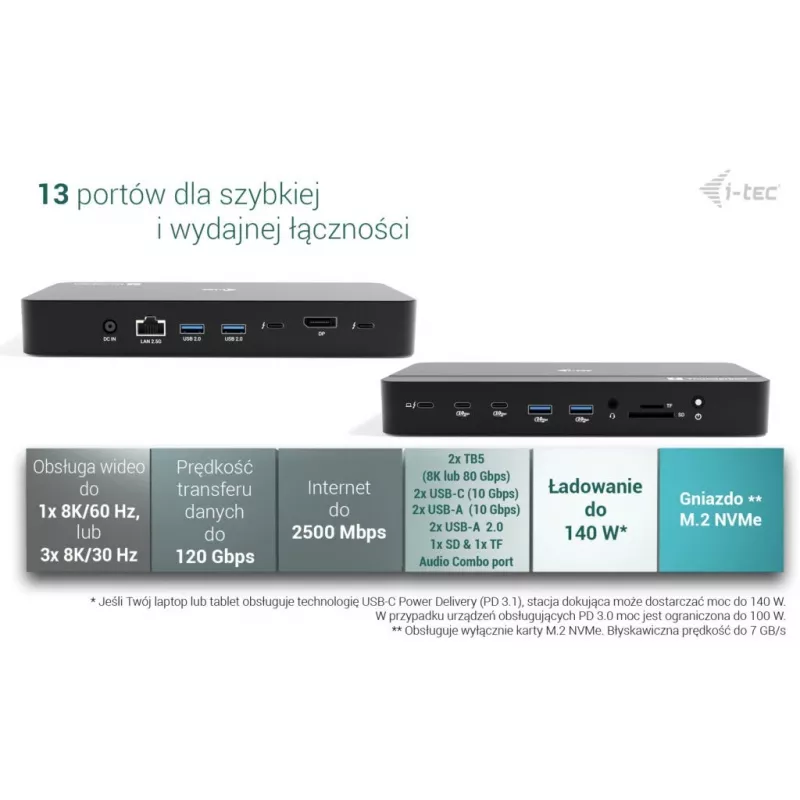

Key specifications

• Brand: i-tec
• Model: TB5 Triple Display Docking Station (TB5TRIPLEDOCKM2PD)
• EAN: 8595611707940

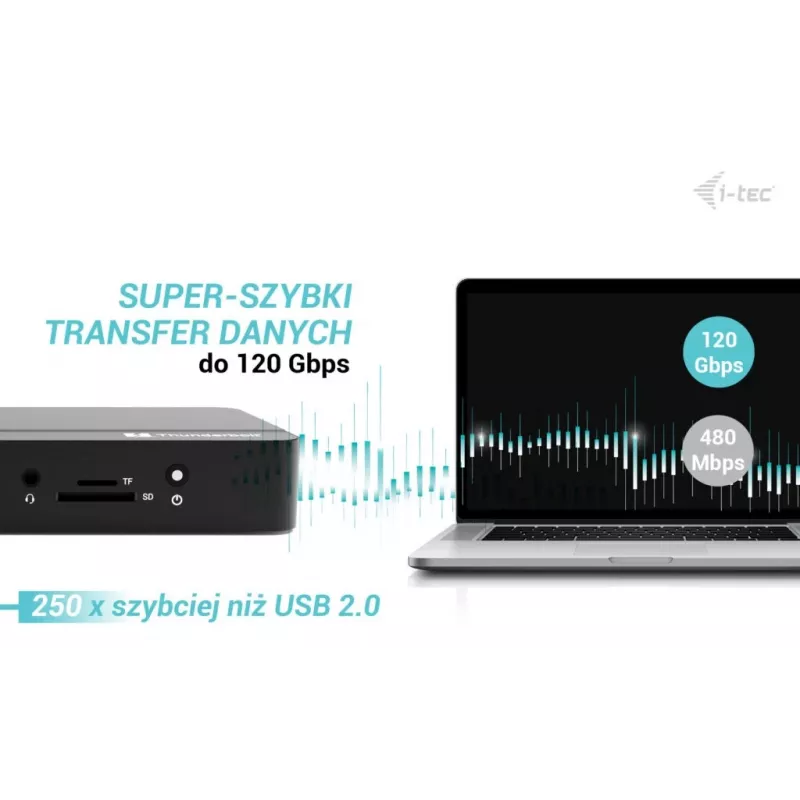

• Host interface: Thunderbolt 5, up to 120 Gbps

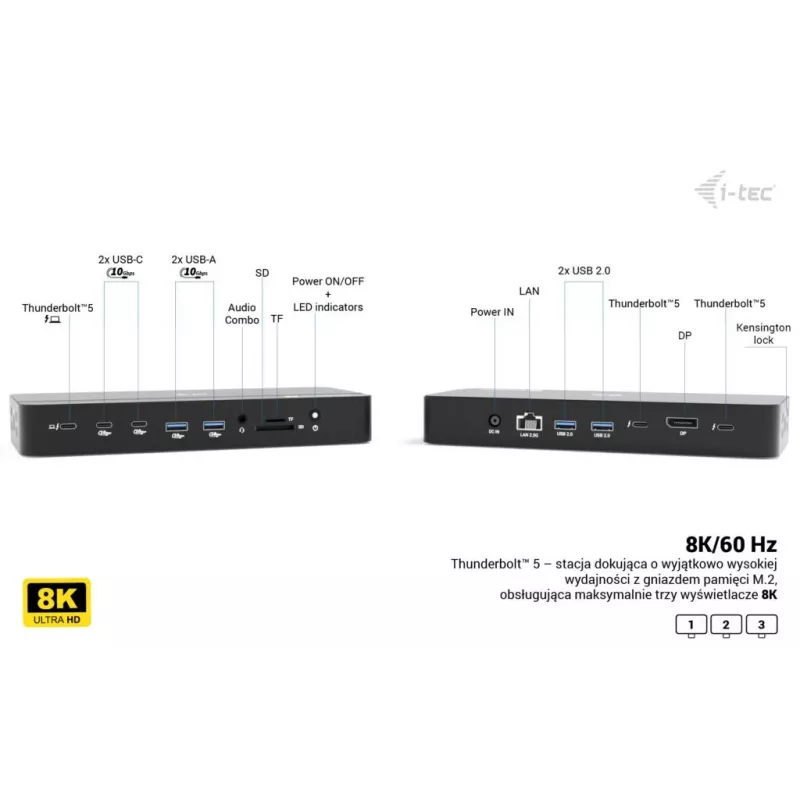

• Thunderbolt 5 ports: 2x (1x host/upstream, used for video and data; downstream daisy-chain)
• Video outputs: 2x Thunderbolt 5 plus 1x DisplayPort 2.1
• Displays supported: up to 3

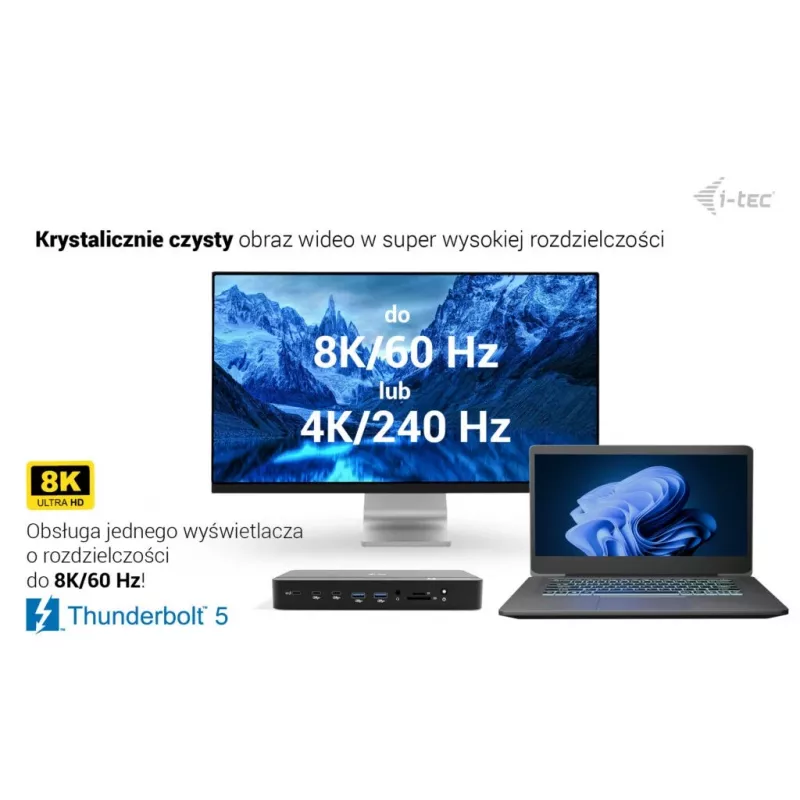

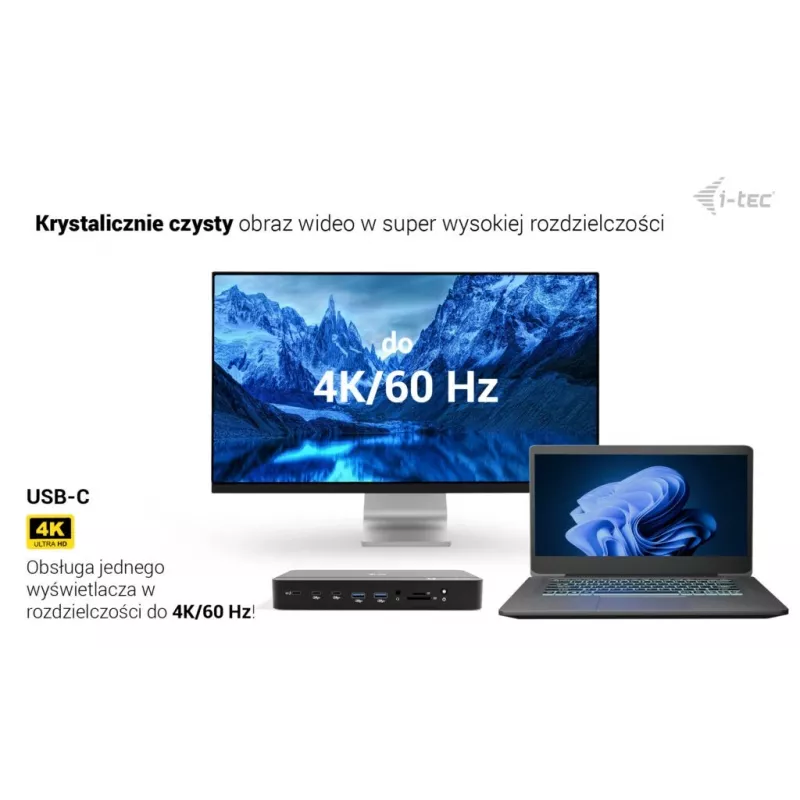

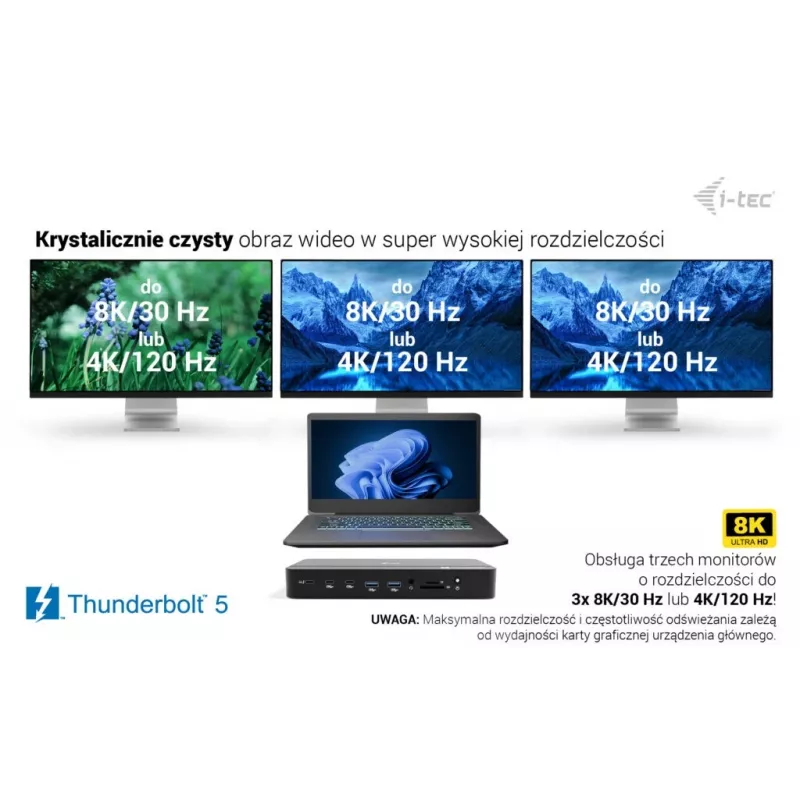

• Max resolution (TB5 host): single up to 8K/60Hz or 4K/240Hz; triple up to 3x 8K/30Hz or 3x 4K/120Hz (DP 1.4 + DSC)
• USB: 2x USB-C 3.2 Gen2 (10 Gbps), 2x USB-A 3.2 Gen2 (10 Gbps), 2x USB-A 2.0
• Network: 2.5 Gigabit Ethernet RJ-45 (10/100/1000/2500)

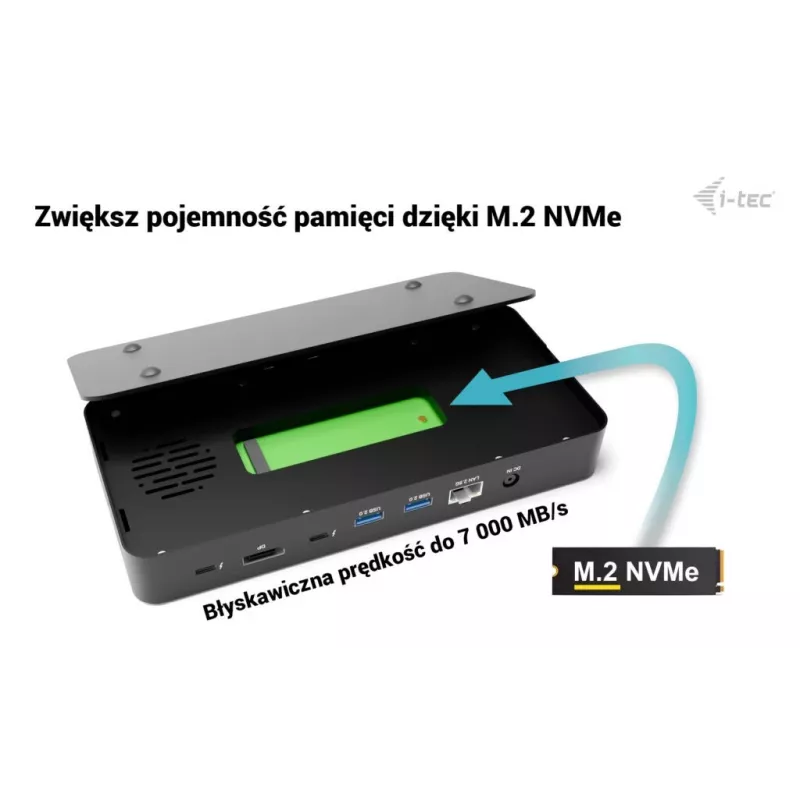

• Storage slot: 1x M.2 NVMe PCIe Gen 4x4 (up to 7000 MB/s)
• Card readers: SD 4.0 and microSD (TF) 4.0
• Audio: 1x 3.5 mm combo headphone/microphone jack

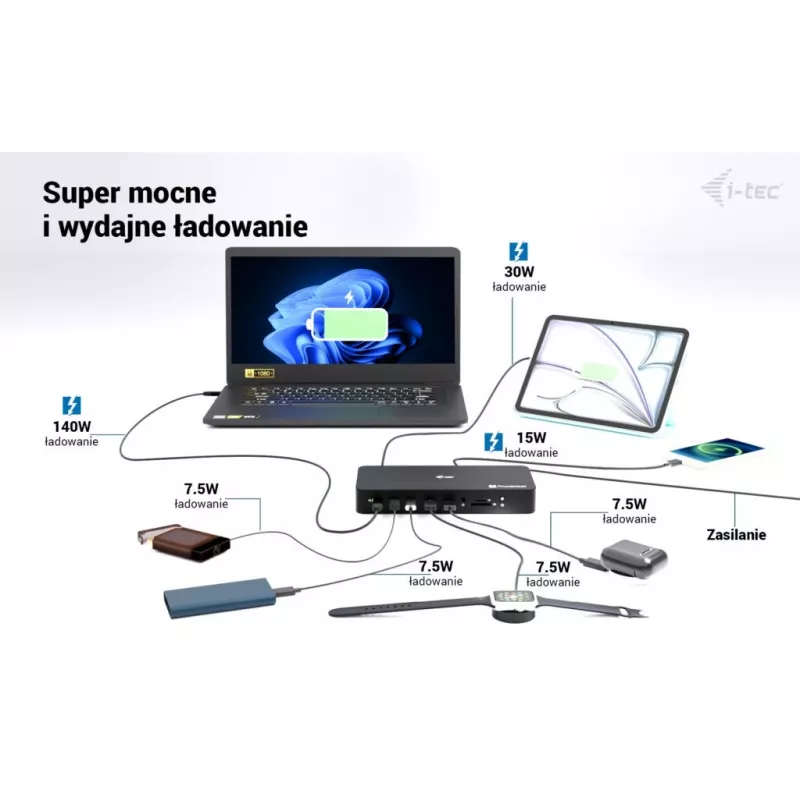

• Power Delivery: up to 140 W (USB PD 3.1) to the host laptop

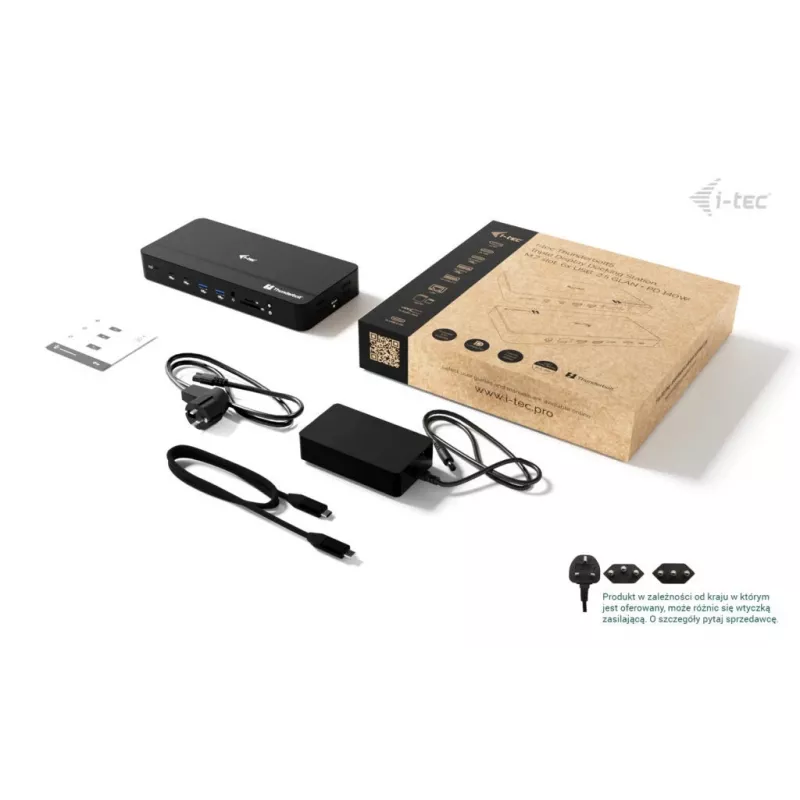

• In the box: docking station, Thunderbolt 5 cable (100 cm), power adapter, user manual
• Dimensions: 215 x 100 x 30 mm; Weight: 360 g
• OS support: Windows and macOS

How to use

Connect the included Thunderbolt 5 cable from the dock to a Thunderbolt 5, Thunderbolt 4/3 or USB4 port on your laptop. Plug in your monitors, network, peripherals and (optionally) an M.2 NVMe SSD, then attach the power adapter. A single cable now delivers video, data, networking and charging to your laptop.

Recommendations

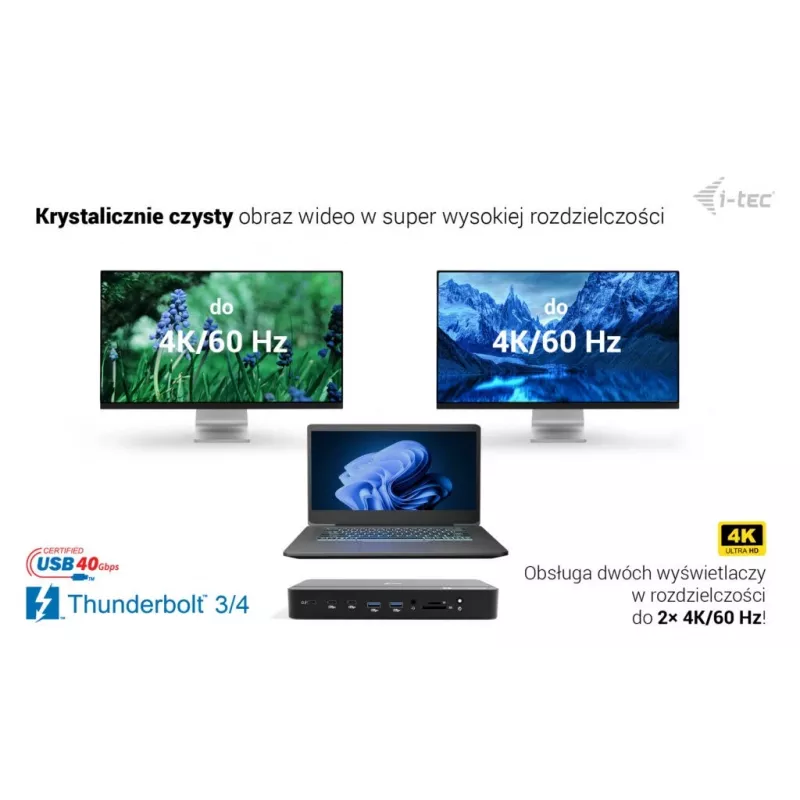

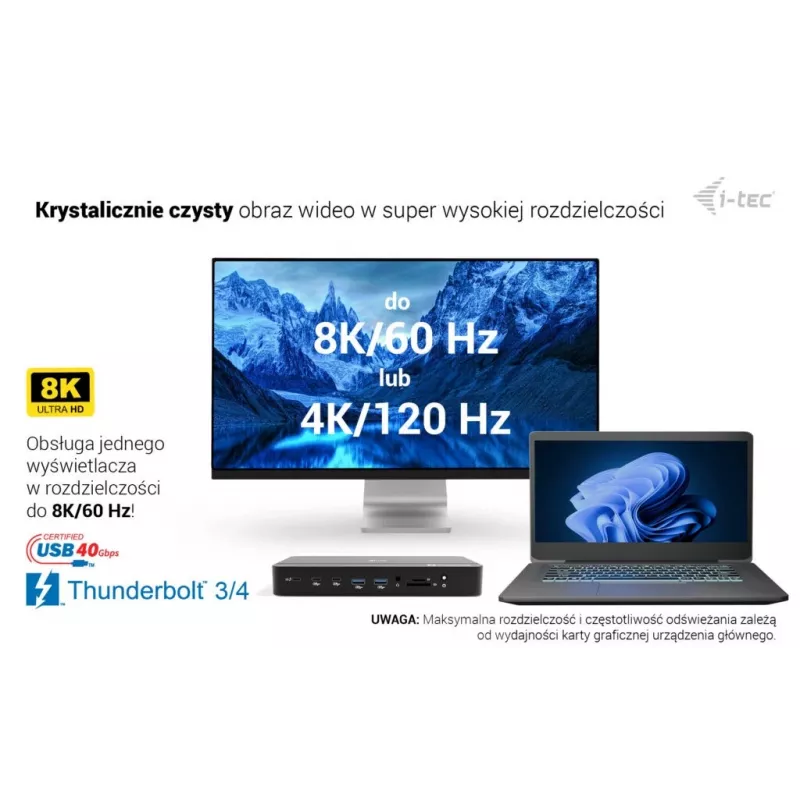

For full triple-display performance and the complete 140 W charging budget, connect to a Thunderbolt 5 host and use the supplied Thunderbolt 5 cable. Older USB-C, Thunderbolt 3/4 or USB4 hosts remain compatible but support fewer displays and lower maximum resolutions.
