Docking Station UNITEK D1079A USB4 Wired Black 100W Power Delivery

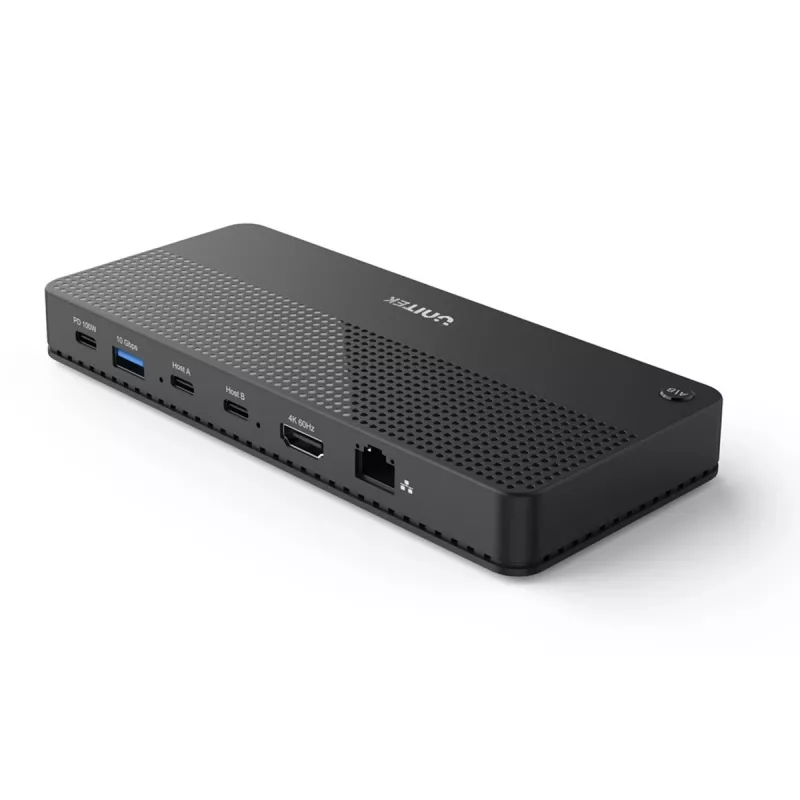

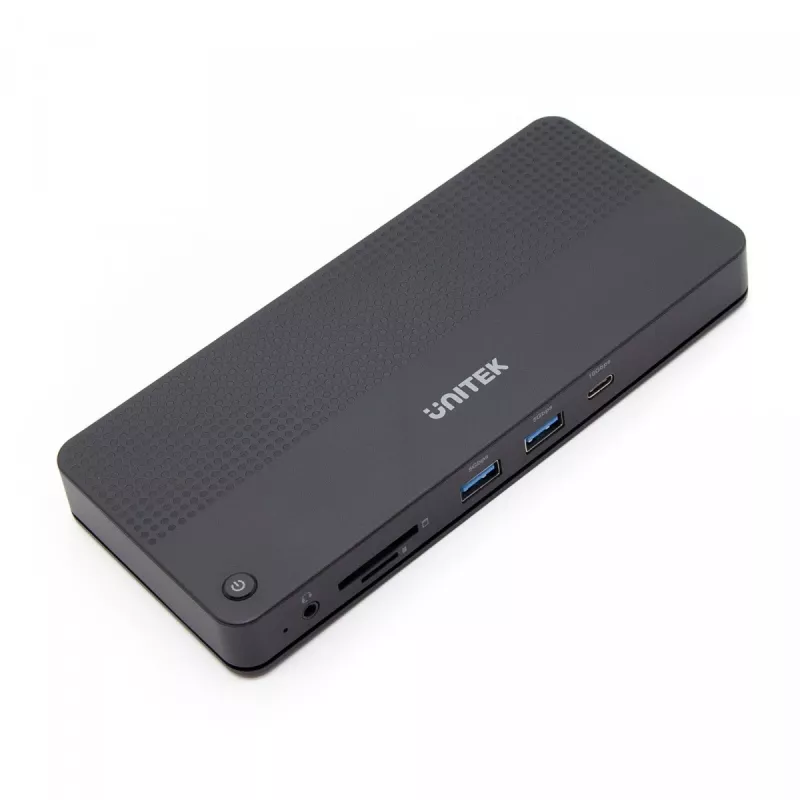

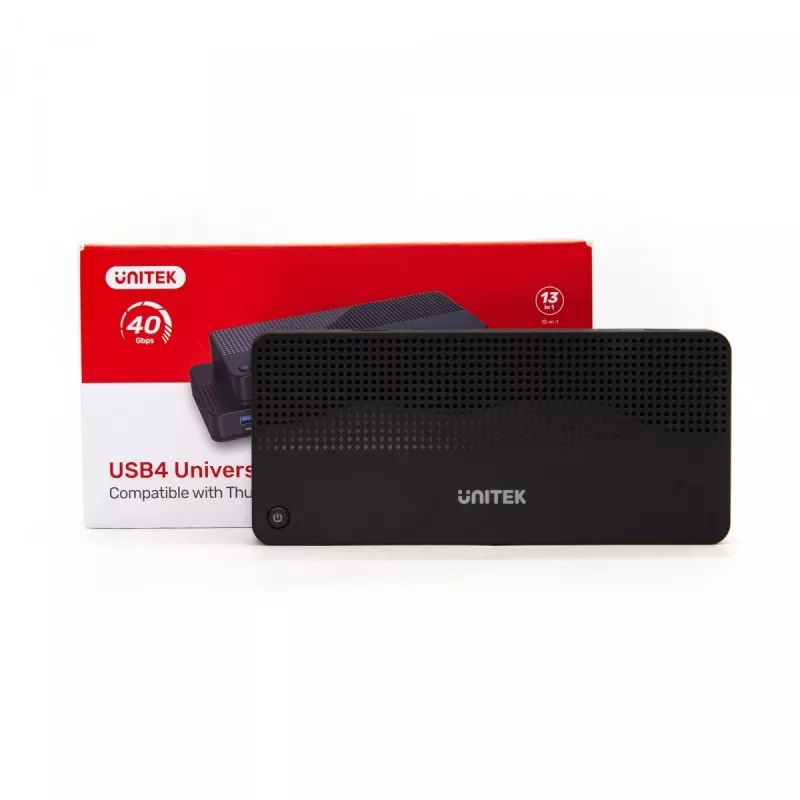

The UNITEK D1079A USB4 8K Multi-Port Hub is a wired docking station that delivers up to 100W power delivery and expands a single USB4 host connection into multiple high-speed ports. The compact black ABS housing includes an Ethernet LAN port (10/100/1000 Mbit/s), SD4.0 and MicroSD3.0 card slots, a 3.5 mm audio/mic jack, an HDMI 2.1 8K output and DisplayPort 1.4, plus multiple USB-A ports for data connectivity.

Advantages

This docking station consolidates power delivery, high-resolution video output and diverse peripheral connectivity into one unit. It supports fast wired network access, SD and microSD card reading, simultaneous use of audio and external displays up to 8K via HDMI 2.1 or DisplayPort 1.4, and multiple USB-A ports for peripherals and high-speed data transfers. Its compact ABS design makes it suitable for desktop and mobile work setups.

Suitable for

• Connecting laptops with USB4 to multiple monitors and peripherals
• Workstations that require wired Gigabit Ethernet access
• Photographers and content creators who need SD/MicroSD card reading
• Users who need high-resolution video output (HDMI 2.1 or DisplayPort 1.4)
• Charging laptops or devices via up to 100W power delivery

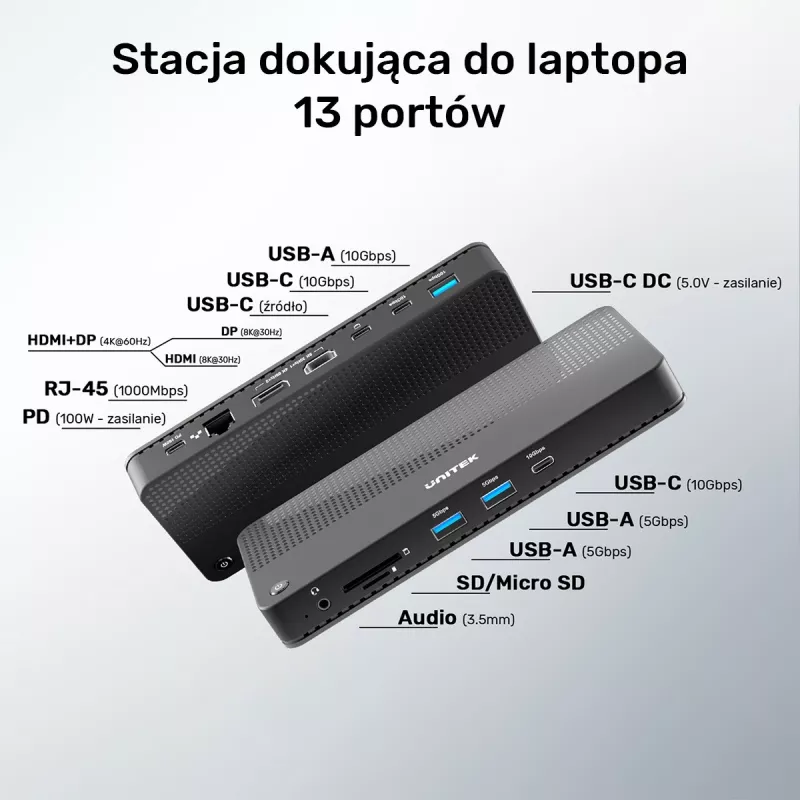

Key specifications

• Model: UNITEK D1079A
• Upstream: USB4 with up to 100W Power Delivery
• USB ports: 3 x USB 10 Gbps (USB 3.2 Gen 2), 2 x USB 5 Gbps (USB 3.2 Gen 1/3.1 Gen 1) — as specified in marketing text
• SD slots: SD4.0 and Micro SD3.0
• Video outputs: 1 x HDMI 2.1 (8K), 1 x DisplayPort 1.4
• Audio: 3.5 mm audio/mic port
• Ethernet: 1 x RJ-45 (10/100/1000 Mbit/s)
• Material and colour: ABS, Black
• Dimensions: 180 mm x 80 mm x 20.5 mm

How to use

Connect the dock to a USB4 host port on your laptop using the supplied upstream cable. Attach monitors to the HDMI 2.1 or DisplayPort 1.4 outputs and plug peripherals into the USB-A ports. Insert SD or microSD cards into the respective slots for file transfer, and connect a wired network cable to the RJ-45 port for Gigabit Ethernet. Use the dock’s 3.5 mm jack for audio output or microphone input. Ensure the host device supports USB4 features and the required display protocols for full video resolution.

Recommendations

For reliable display performance at high resolutions and full power delivery, use a USB4-capable host device and high-quality HDMI/DisplayPort cables. When transferring large media files from SD or microSD cards, use the SD4.0/MicroSD3.0 slots and connect high-speed USB devices to the 10 Gbps ports.
