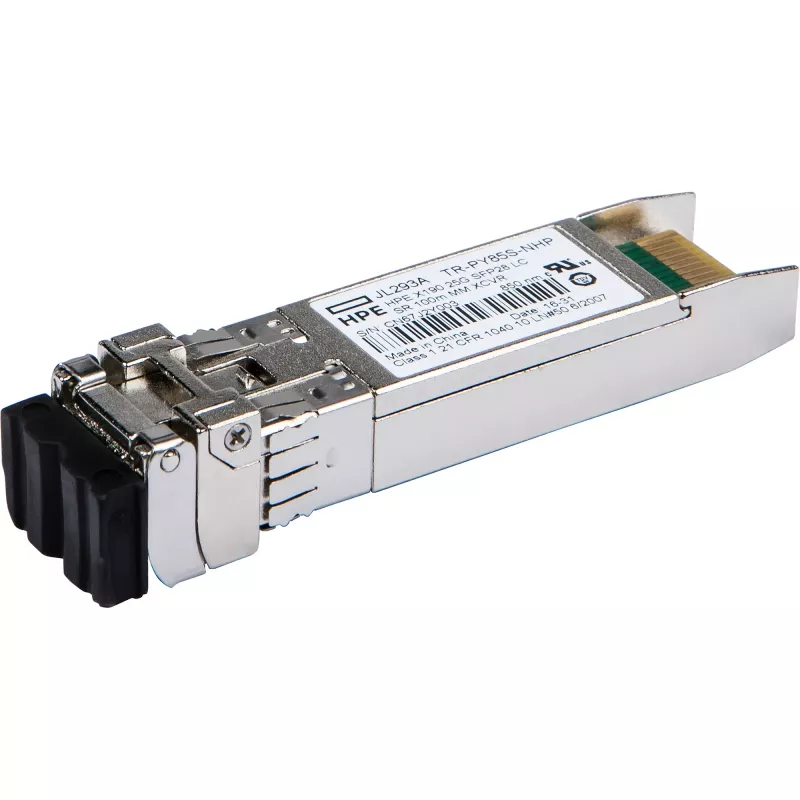

HPE X190 SFP28 25GBase-SR LC Multi-mode Transceiver Module

The HPE X190 SFP28 transceiver module delivers high-performance 25 Gigabit Ethernet connectivity for data centers and enterprise networks. Designed for HPE Aruba switches, this hot-pluggable module supports 25GBase-SR over multi-mode fiber with an LC duplex connector, providing reliable, low-latency links up to 100 meters.

Advantages

• High-speed 25 Gbps data rate for bandwidth-intensive applications
• Hot-swappable SFP28 form factor for easy installation and maintenance
• Digital Diagnostics Monitoring (DDM) for real-time performance tracking
• Low power consumption of only 1 W, reducing operational costs
• Full-duplex operation ensures efficient data transmission

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-performance computing environments
• 25 Gigabit Ethernet uplinks

Key specifications

• Device Type: Transceiver module
• Form Factor: SFP28
• Data Rate: 25 Gbps
• Data Link Protocol: 25 Gigabit Ethernet, 25GBase-SR
• Max Transfer Distance: 100 m
• Wavelength: 850 nm
• Fiber Type: Multi-mode fiber (MMF)
• Connector Type: LC duplex
• Interface: 1 x 25GBase-SR
• Compatibility: HPE Aruba switches and network devices
• Hot Swappable: Yes
• Digital Diagnostics Monitoring (DDM): Yes
• Power Consumption (Max): 1 W
• Operating Temperature Range: 0 to 70 °C (32 to 158 °F)
• Standards Compliance: IEEE 802.3by (25GBASE-SR)
• Duplex Mode: Full-duplex
• Media Type: Optical Fiber

Recommendations

For optimal performance, pair this module with HPE Aruba switches that support SFP28 interfaces and use OM4 multi-mode fiber for distances up to 100 m. Ensure proper fiber cleaning before installation.
