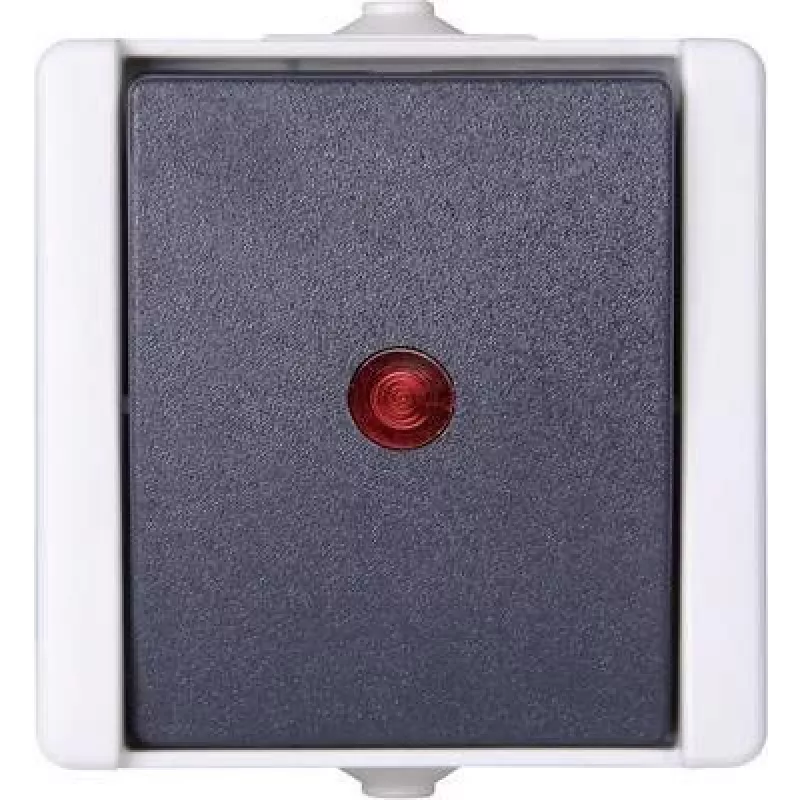

HEINRICH KOPP Control Switch Surface-Mounted Damp-Proof proAQA Grey 10A 250V IP44

The HEINRICH KOPP Control Switch Surface-Mounted Damp-Proof proAQA is a robust and reliable switch designed for damp and wet environments. With its IP44 protection rating and UV-resistant thermoplastic housing, it ensures long-lasting performance in challenging conditions. The integrated glow lamp provides clear visual indication of the switching status, making it ideal for use in basements, garages, workshops, and outdoor areas.

Advantages

This control switch offers several key benefits: it is halogen-free and UV-resistant, ensuring safety and durability. The surface-mounted design simplifies installation, and the screw terminals accommodate conductors up to 2.5 mm². The glow lamp indicator allows easy identification of the switch state, enhancing convenience and safety.

Suitable for

• Damp rooms such as bathrooms and laundry rooms
• Outdoor areas like gardens and terraces
• Industrial environments requiring robust switching
• Commercial buildings with wet areas

Key specifications

• Product Type: Control Switch
• Mounting: Surface-mounted (AP)
• Series: proAQA
• Colour: Grey
• Rated Current: 10 A
• Rated Voltage: 250 V AC
• Switching Function: 1-pole
• Indicator: Glow lamp
• Protection Class: IP44
• Material: Thermoplastic
• Halogen-free: Yes
• UV-resistant: Yes
• Connection: Screw terminals
• Number of Rockers: 1
• Max. Conductor Cross-section: 2.5 mm²
• Operating Temperature: -25 °C to +40 °C
• Impact Resistance: IK07

Recommendations

For optimal performance, ensure that the switch is installed by a qualified electrician and used within its specified ratings. The IP44 rating provides protection against splashing water, but the switch should not be submerged. Regular inspection is recommended to maintain safety.
