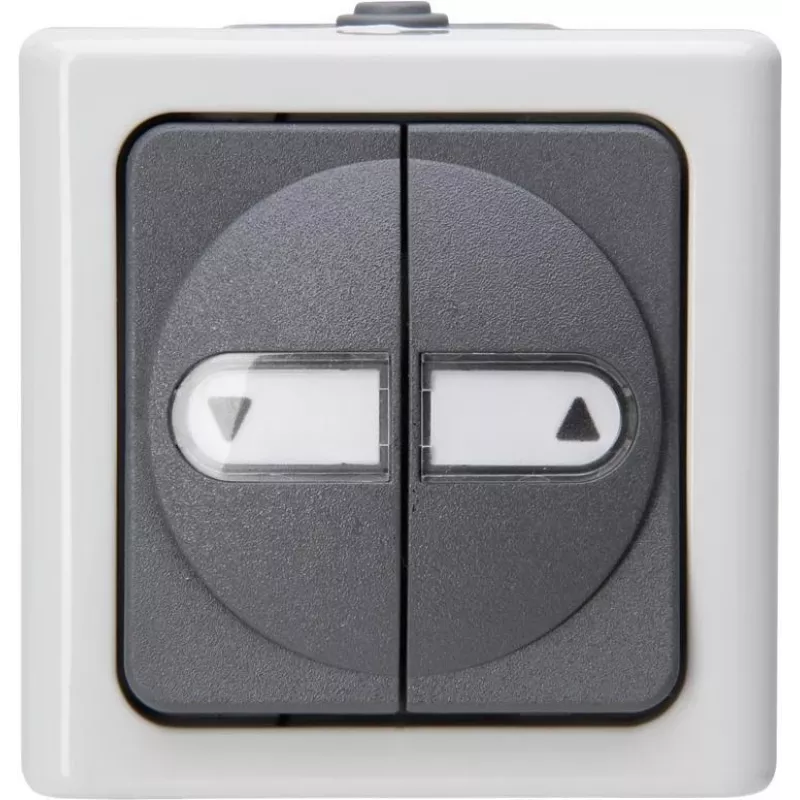

Heinrich Kopp 561556004 Push-Button Switch Insert Black/White Thermoplastic IP44 10A 250V

The Heinrich Kopp 561556004 is a high-quality push-button switch insert designed for momentary switching applications. Crafted from durable thermoplastic, this 1-pole switch insert features a black and white colour scheme and offers IP44 protection, making it suitable for damp rooms and outdoor installations when used with an appropriate IP44 housing. With a rated current of 10 A and voltage of 250 V AC, it provides reliable performance for lighting and other resistive loads. The screw terminals ensure secure and easy wiring, while the normally open (NO) contact type makes it ideal for push-to-make circuits. This component is halogen-free and compatible with Kopp switch ranges, including the Paris series.

Advantages

This push-button switch insert offers several benefits: IP44 ingress protection ensures safe operation in damp environments; thermoplastic construction provides durability and resistance to impact; screw terminals allow for secure and straightforward installation; halogen-free materials contribute to environmental safety; and compatibility with Kopp modular systems enables flexible integration.

Suitable for

• Momentary switching of lighting circuits in residential and commercial buildings
• Use in damp rooms such as bathrooms, kitchens, and laundry areas
• Outdoor applications when installed in a suitable IP44-rated enclosure
• Integration with Kopp Paris series and other compatible switch ranges
• Control of fluorescent loads due to 10 AX switching capacity

Key specifications

• Product Type: Push-Button Switch Insert
• Switch Function: Momentary (Push-Button)
• Number of Poles: 1-Pole
• Rated Current: 10 A
• Rated Voltage: 250 V AC
• Ingress Protection: IP44
• Material: Thermoplastic
• Colour: Black / White
• Mounting Type: Insert
• Connection Type: Screw Terminals
• Contact Type: Normally Open (NO)
• Switching Capacity: 10 AX
• Halogen-free: Yes
• Operating Principle: Mechanical Push-Button

Recommendations

For optimal performance and safety, ensure that the switch insert is installed by a qualified electrician and used within its rated specifications. When used outdoors or in damp locations, pair with an appropriate IP44-rated housing to maintain protection. Always verify compatibility with your existing switch range before installation.
