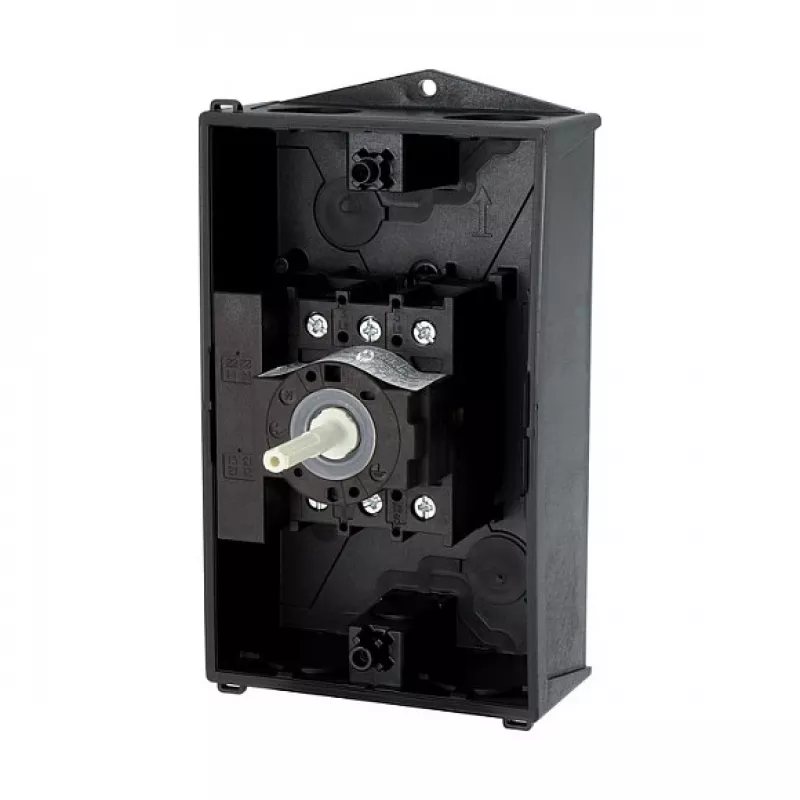

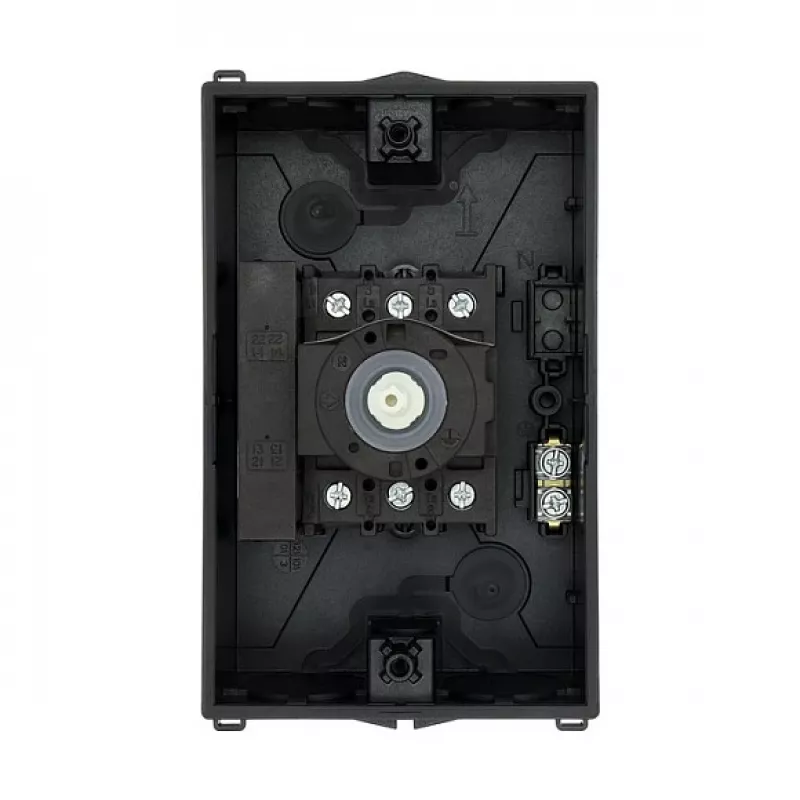

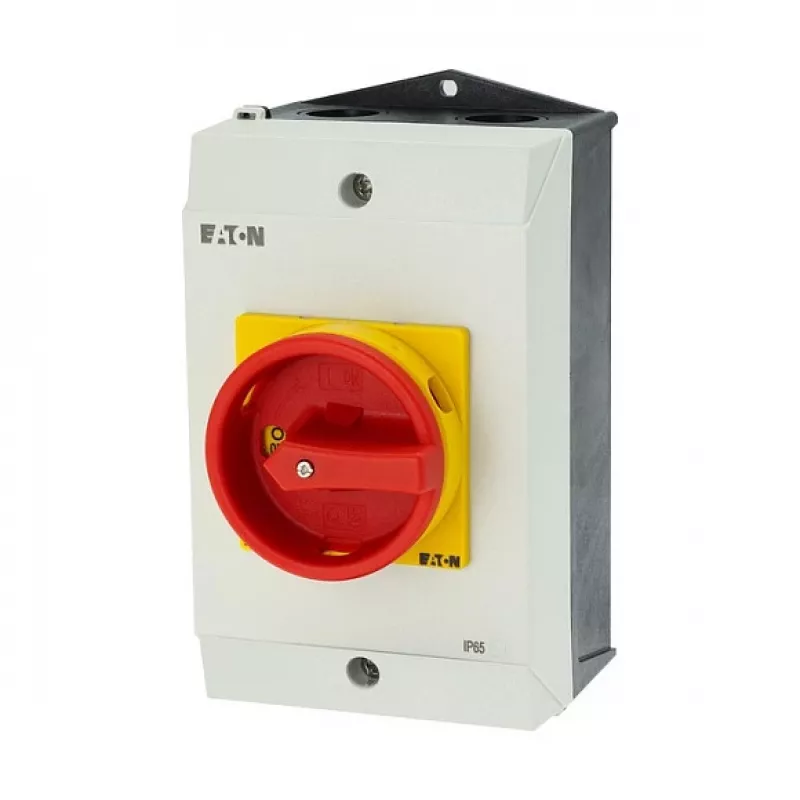

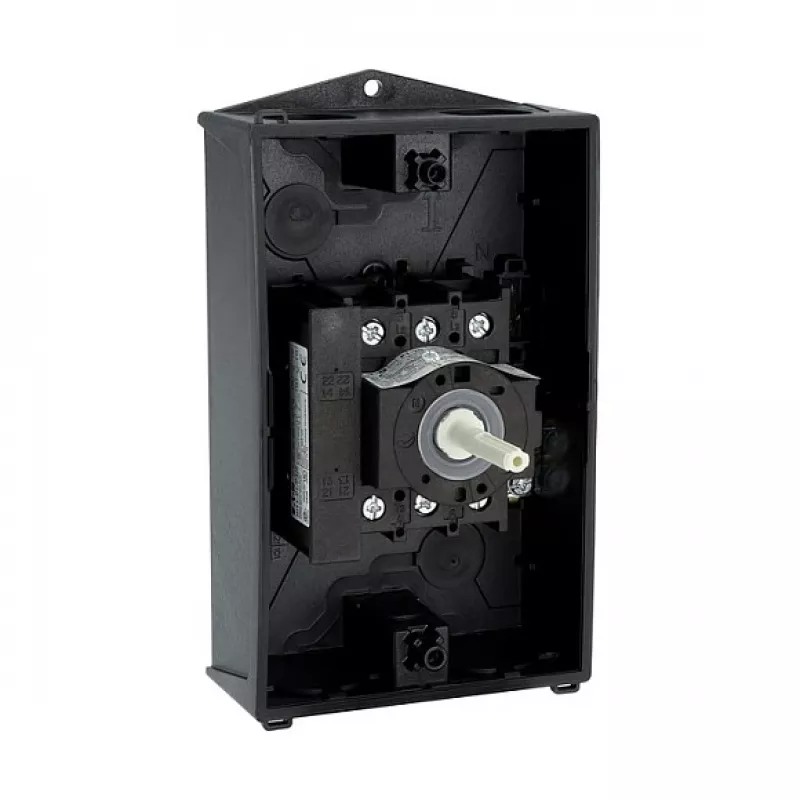

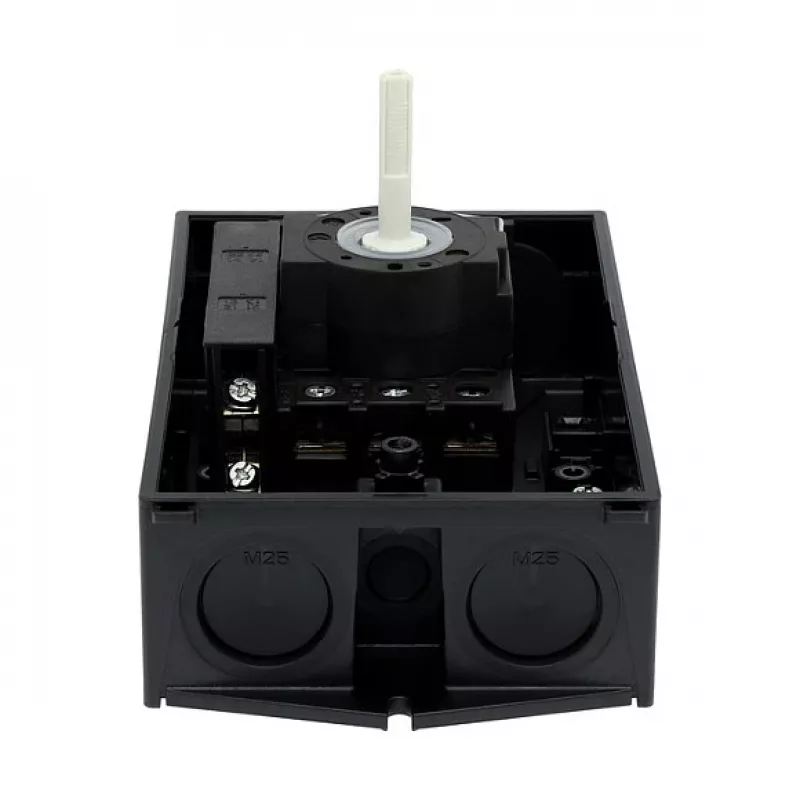

Eaton P1-25/I2/SVB/HI11 25A 3-Pole Main Switch with Emergency Stop, Surface Mount, IP65, Red/Yellow

With a rated operational current of 25 A and a breaking capacity of 690 V AC, the Eaton P1-25/I2/SVB/HI11 main switch delivers uncompromising safety and control for industrial power circuits. This 3-pole surface-mounted switch integrates an emergency stop function and a lockable red/yellow actuator, ensuring rapid, reliable disconnection in critical situations.

Overview

Its IP65 front protection makes it suitable for harsh environments, while the IP20 terminals provide safe wiring access. The switch includes one normally open and one normally closed auxiliary contact, enabling status feedback and interlocking. Built to IEC/EN 60947-3 and VDE 0660 Part 107, it offers a switching angle of 90° and can handle motor loads up to 11 kW at 400 V AC (AC-23A). Screw terminals ensure secure, maintenance-friendly connections.

What stands out

• Integrated emergency stop with lockable red/yellow actuator
• IP65 front protection for harsh industrial environments
• Auxiliary contacts (1 NO + 1 NC) for status feedback
• High breaking capacity: 690 V AC, 25 A
• Complies with IEC/EN 60947-3 and VDE 0660 Part 107

Technical details

• Rated operational current: 25 A
• Number of poles: 3
• Rated operational voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Rated power AC-23A (400 V): 11 kW
• Rated power AC-3 (400 V): 7.5 kW
• Switching angle: 90°
• Terminal type: screw terminals
• Operating temperature: -25 to +50 °C

Our verdict

Whether for machine control panels, conveyor systems, or building installations, this main switch provides a robust, compliant solution for manual power isolation and emergency switching off.
