HDMI Switch 4x1 4K 60Hz HDR Dolby Vision HDCP 2.2 18Gbps Metal

Experience seamless 4K@60Hz switching with full HDR and Dolby Vision support, backed by an 18Gbps bandwidth and HDCP 2.2 compliance. This HDMI switch lets you connect four source devices to one display without constantly swapping cables.

Overview

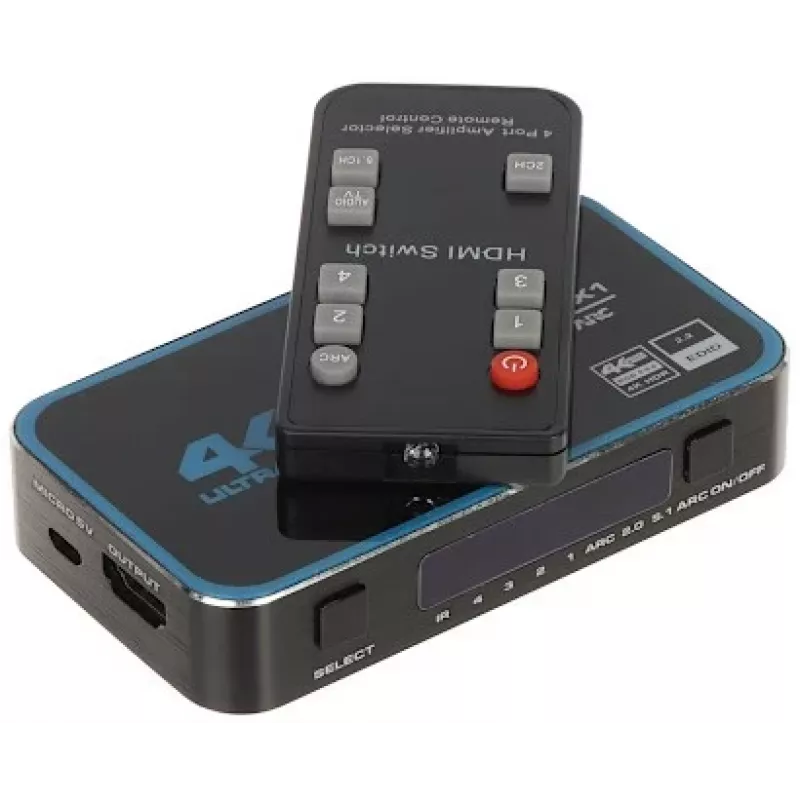

The HDMI-SW-4/1-2.0 is a compact, metal-constructed switch that routes any of four HDMI inputs to a single output. It supports resolutions up to 3840x2160 at 60Hz with 4:4:4 chroma subsampling, ensuring crisp, artifact-free video. Audio passthrough includes DTS-HD, Dolby TrueHD, and DSD for immersive sound. Control is simple via the front-panel button or included IR remote, with LED indicators showing the active input. Power is supplied through a 5V USB connection, making it easy to integrate into existing setups.

What stands out

• 4K@60Hz with HDR10 and Dolby Vision for stunning picture quality
• 18Gbps bandwidth and HDCP 2.2 for compatibility with modern sources
• Durable aluminum alloy housing with efficient heat dissipation
• Plug-and-play operation with manual and remote switching
• Supports deep color up to 12-bit and high-resolution audio formats

Technical details

• HDMI Standard: 2.0
• Max Resolution: 3840x2160 @ 60Hz
• Video Bandwidth: 18 Gbps
• HDCP: 2.2 (backward compatible with 1.4)
• HDR: HDR10, Dolby Vision
• Color Depth: 8/10/12-bit
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Inputs: 4 x HDMI Type A Female
• Output: 1 x HDMI Type A Female
• Audio: DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD
• Control: Manual button, IR remote
• Power: DC 5V/1A via USB or adapter
• LED indicator

Our verdict

A robust 4x1 HDMI switch that delivers exceptional 4K HDR performance with versatile control options, perfect for consolidating multiple sources to a single display.
