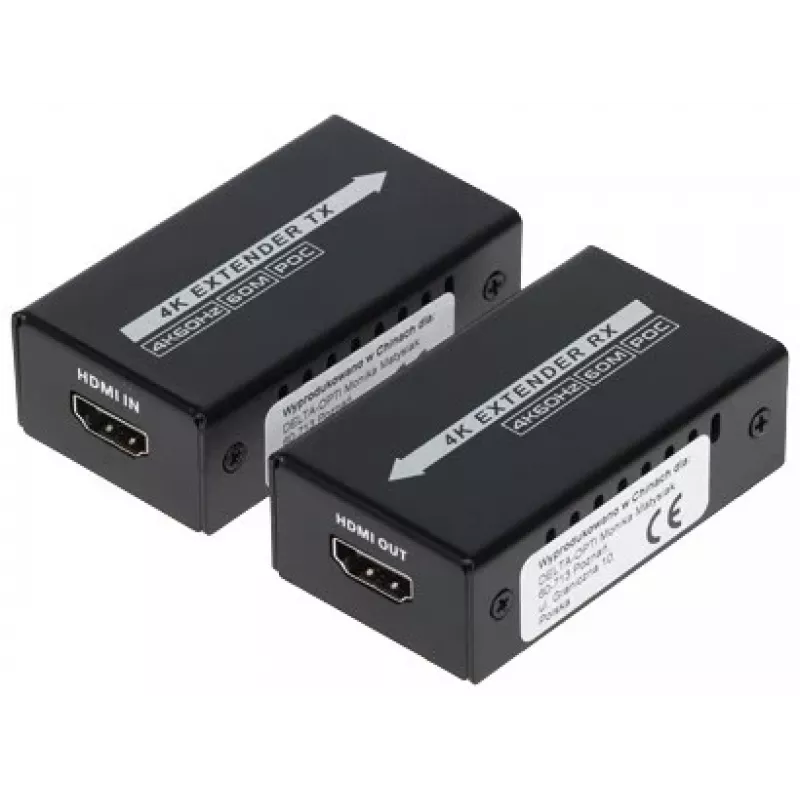

HDMI Extender Over Ethernet 4K 60m Mini Transmitter Receiver Kit

Unlike bulky extenders that demand separate power bricks and complex setup, this mini HDMI extender kit delivers 4K video up to 60 meters over a single Cat5e/6/7 cable with near-zero latency and plug-and-play simplicity. The compact metal housings of the transmitter and receiver units fit discreetly behind displays or in tight AV racks, while the included USB-A to DC power cable lets you power both ends from any standard USB port or charger. Whether you're extending a set-top box to a bedroom TV, sending a PC signal to a conference room projector, or distributing content in a retail space, this extender preserves HDMI 1.4 and HDCP 1.4 compliance for reliable compatibility with most sources and displays.

Highlights

• Extends 4K (3840x2160) @ 30Hz HDMI signals up to 60 m over a single network cable
• Supports Cat5e, Cat6, Cat6a, and Cat7 cabling for flexible installation
• IR pass-through (20–60 kHz) allows remote control of the source from the display location
• Near-zero latency ensures real-time video for gaming, live events, and presentations
• Plug-and-play: no drivers, software, or configuration required
• Metal (aluminum alloy) housing for durability and effective heat dissipation
• Compact design with USB-A to DC power cable for convenient powering from USB ports or phone chargers

In daily use

Connect the transmitter to your HDMI source—such as a Blu-ray player, media streamer, or laptop—using a short HDMI cable (not included). Run a single Cat5e or better cable from the transmitter to the receiver, which then connects to your display via another HDMI cable. Power both units using the included USB-A to DC cables; you can use any USB power adapter or even the USB port on your TV or source device. The IR receiver and emitter cables (not included) can be connected to the 3.5 mm IR ports to extend remote control signals, allowing you to change channels or adjust volume from the remote display location. The extender handles LPCM, DTS Digital, and Dolby Digital audio formats, ensuring your soundtracks pass through without degradation. With support for 8-bit, 10-bit, and 12-bit color depth and a 10.2 Gbps bandwidth, you get vibrant, accurate colors and smooth motion for movies, sports, and presentations.

Full specifications

• Product type: HDMI extender over Ethernet (transmitter and receiver kit)
• Maximum resolution: 4K (3840x2160) @ 30Hz
• Maximum transmission distance: 60 m (196 ft)
• Supported cable types: Cat5e, Cat6, Cat6a, Cat7
• HDMI version: 1.4
• HDCP version: 1.4
• Bandwidth: 10.2 Gbps
• Color depth: 8-bit, 10-bit, 12-bit
• Audio formats: LPCM, DTS Digital, Dolby Digital
• IR pass-through: Yes, 20–60 kHz
• Latency: Near zero
• Housing material: Metal (aluminum alloy)
• Power supply: DC 5V/1A via USB-A to DC cable (included)
• ESD protection: Human body model ±8 kV (air-gap), ±4 kV (contact)
• Operating temperature: 0°C to 60°C
• Plug & Play: Yes
• Included units: 1x transmitter, 1x receiver

Final note

This mini HDMI extender kit is a reliable, cost-effective solution for extending 4K signals over long distances without sacrificing quality or adding complexity. Its robust metal build and flexible power options make it suitable for both permanent installations and temporary setups.
