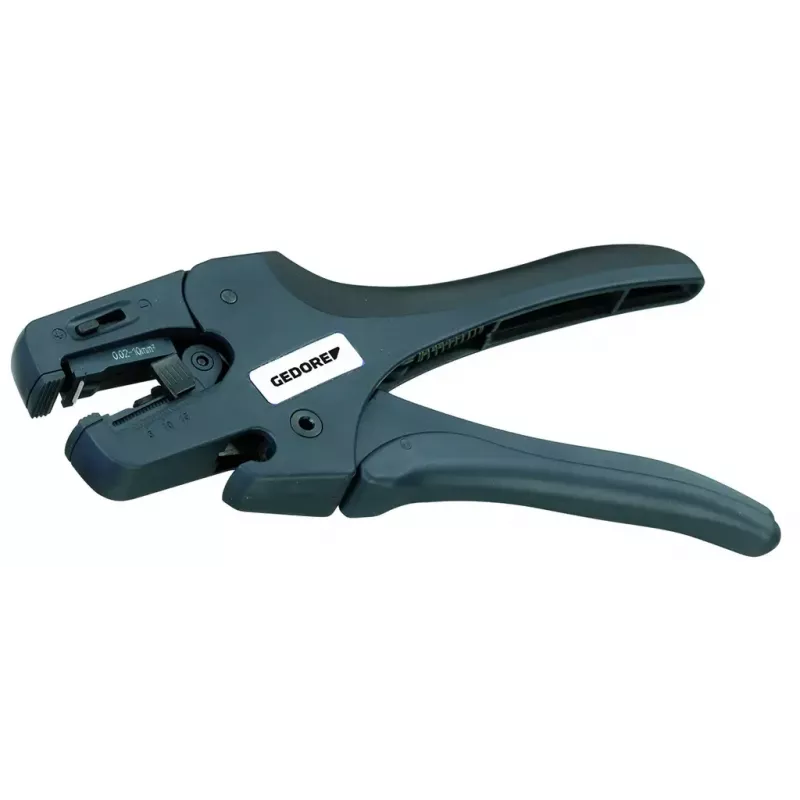

Gedore 8146 Tool Set Gedore 1830805 High Quality Durable

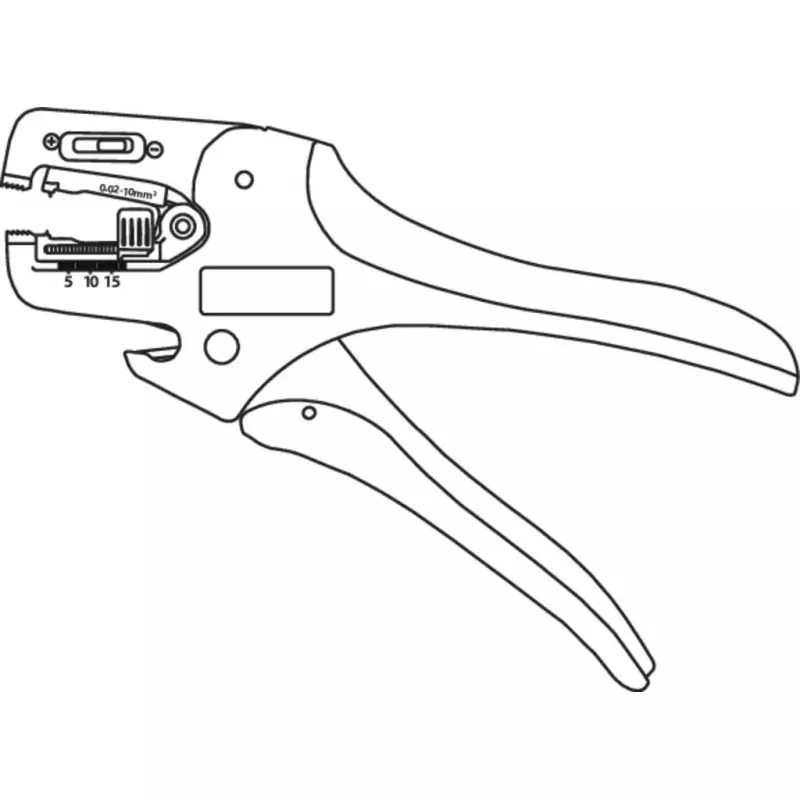

Module insert no. 8146-1 is supplied with a flat blade and is suitable for stripping PVC-insulated conductors in the range 0.02–10 mm² (AWG 34–8). The replaceable module insert system allows quick swapping of blades to adapt the tool for different insulation types and cross-sections. Dimensions: 191 x 123 x 20 mm. Optional module inserts available separately include no. 8146-2 with a round/circular blade for 4–16 mm² (AWG 10–5) and no. 8146-3 with a V-blade designed for PTFE and other insulations in the range 0.1–4 mm² (AWG 28–12).

Advantages

The module insert provides accurate and repeatable stripping across a wide range of insulation materials, including PVC and PTFE. Interchangeable blades extend the tool’s versatility without requiring multiple full tools. Compact dimensions make the insert easy to handle and store, while compatibility with different blade types covers both fine and larger conductor sizes.

Suitable for

Key specifications

How to use

Select the appropriate module insert for the conductor size and insulation type; the supplied 8146-1 flat blade is intended for PVC in the 0.02–10 mm² range. Insert the module into the compatible stripping tool body according to the tool manufacturer’s instructions, position the conductor in the blade opening, and perform the stripping motion. For PTFE or other insulation types, fit module 8146-3 with the V-blade; for larger round conductors use module 8146-2 with the circular blade.

Recommendations

Check blade condition regularly and replace worn modules to maintain clean, consistent stripping results. Use the module range specified for each insulation type and wire size to avoid conductor damage. Observe the stripping tool manufacturer’s safety instructions during use.
