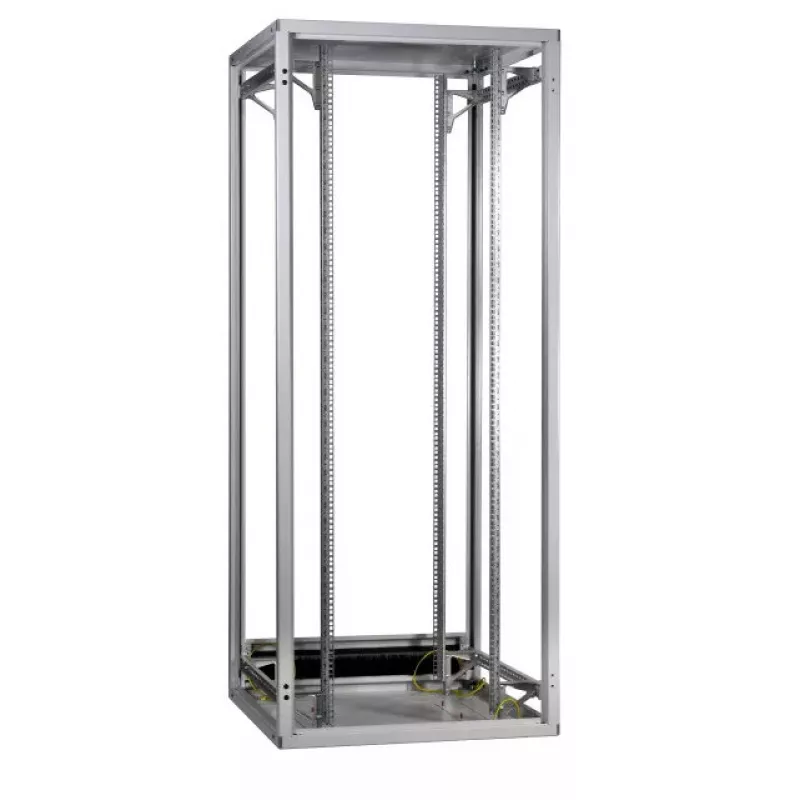

Freestanding rack EFB Elektronik PRO-4280TS.0D

The EFB Elektronik PRO-4280TS.0D freestanding rack is a heavy-duty network cabinet engineered to support demanding IT and telecom installations. With a 19" mounting profile, overall dimensions of 800 mm width, 1000 mm depth and 1963 mm height, and a rated static load capacity of 1360 kg, this black IP20-rated cabinet provides a secure, stable platform for servers, switches, patch panels and other rack-mount equipment. The open-access design and robust construction make it suitable for datacenter aisles, network rooms and technical closets where reliable equipment organisation and load-bearing capacity are required.

Advantages

The PRO-4280TS.0D combines a high load capacity with a standard 19" rack format and a compact footprint for its height, enabling mounting of heavy equipment while conserving floor space. Its IP20 protection ensures basic defence against solid intrusions larger than 12.5 mm, appropriate for controlled indoor environments. The black finish offers a professional appearance that blends with typical network room and office installations, while the freestanding form factor simplifies placement without the need for wall attachment.

Suitable for

• Server and network equipment racks in data centres and server rooms
• Telecom and infrastructure installations requiring high static load capacity
• IT closets, laboratory or industrial control cabinets where floor-mounted racks are preferred
• Environments with controlled indoor conditions where IP20 protection is sufficient

Key specifications

• Mounting standard: 19 inch rack format
• Width: 800 mm
• Depth: 1000 mm
• Height: 1963 mm
• Maximum static load capacity: 1360 kg
• Protection class: IP20 (protection against solid objects >12.5 mm)
• Colour: Black
• Freestanding floor cabinet configuration

How to use

Place the freestanding rack on a level, stable floor surface able to support the combined weight of the cabinet and installed equipment. Position the cabinet to allow sufficient clearance for ventilation and cable access on all sides. Mount 19" equipment using the front and rear mounting rails, ensuring even weight distribution and secure fastening of heavy items. Ensure earthing/grounding is performed according to local electrical codes before powering installed devices. Use appropriate cable management accessories and blanking panels to maintain airflow and serviceability.

Recommendations

For safe and long-term operation, install the cabinet in an indoor environment with controlled temperature and humidity. Reserve heavy equipment for lower rack units to maintain stability, and verify floor load capacity before installation. Consider additional ventilation or active cooling for densely populated racks, and use proper grounding, cable routing and security measures to meet site requirements.
