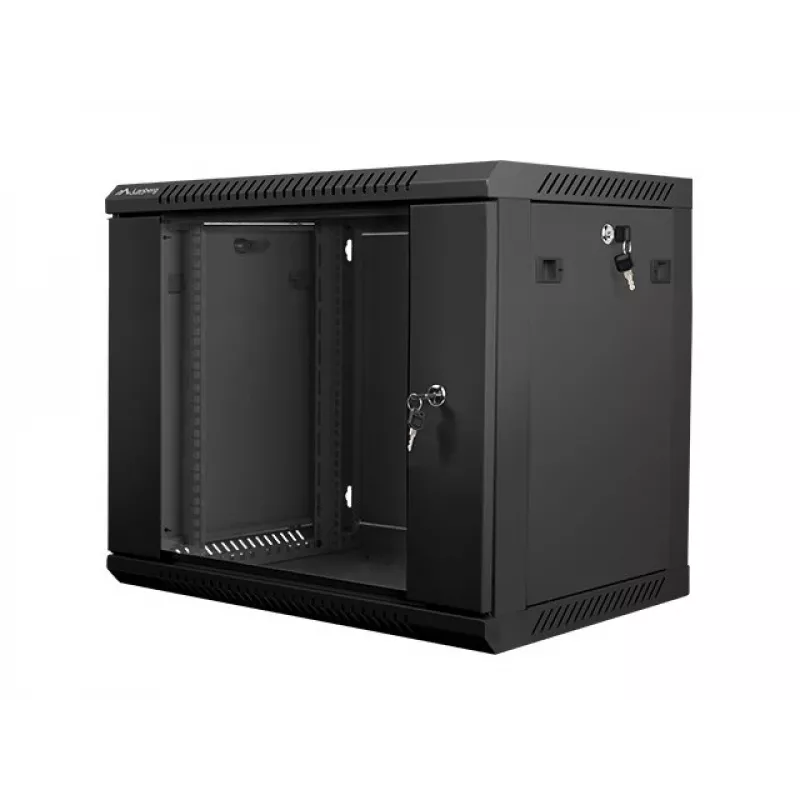

Lanberg WF01-6409-10B 9U Wall-Mounted Rack Cabinet 600x450mm Black with Glass Door

In a small business network closet or a compact security control room, the Lanberg WF01-6409-10B provides a secure, space-saving home for 19-inch equipment. This 9U wall-mounted cabinet keeps switches, patch panels, and CCTV recorders organized and protected, all within a sturdy steel enclosure that mounts directly to the wall.

Key specifications

• Rack capacity: 9U, 19-inch standard mounting
• External dimensions (HxWxD): 507 x 600 x 450 mm
• Maximum static load: 60 kg
• Material: cold-rolled steel, black finish (RAL 9004)
• Front door: tempered glass with key lock
• Side panels: removable with locks
• IP protection rating: IP20 (indoor use)
• Assembly: flat-packed, self-assembly required
• Included accessories: mounting rails, M6 cage nuts, blank entry panels, keys

Why choose it

This cabinet combines durability with practicality. The tempered glass door allows visual monitoring of equipment status without opening the cabinet, while the lock restricts access. Removable side panels and adjustable mounting rails simplify installation and cable management. The 60 kg load capacity accommodates a full complement of networking gear.

Ideal use cases

• Small and medium business network installations
• Server rooms and wiring closets
• CCTV and IP surveillance systems
• Low-voltage systems: cable TV, alarm, access control, fire protection

Good to know

The cabinet ships flat-packed for efficient transport and requires assembly. It includes all necessary mounting hardware and blank entry panels to seal unused cable openings. Passive ventilation is provided via perforated top and bottom panels, ensuring adequate airflow for typical equipment. Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1 and PART7 standards.
