Freestanding rack EFB Elektronik 691618VGR.60

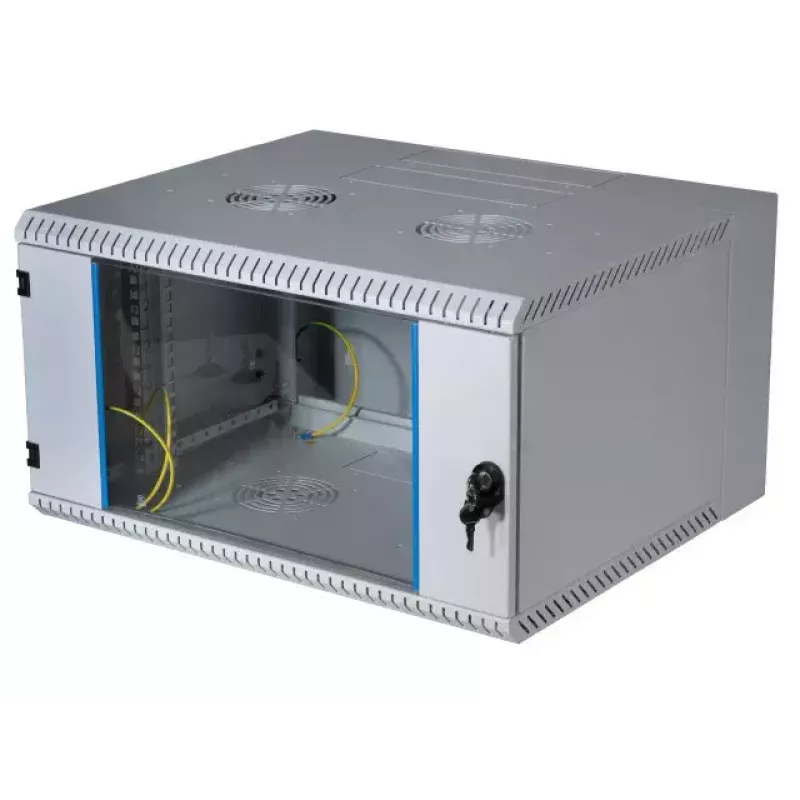

The EFB Elektronik 691618VGR.60 is an 18U freestanding rack with a welded steel sheet housing and pre-assembled frame, intended for indoor equipment installation. It features a rear swing-frame for front access, a front door with safety glass window and metal hinges, galvanized adjustable 19" profile rails, and is finished in RAL7035 light grey. The cabinet is prepared for fan units and cable entry options, includes internal earthing for all sections and offers protection class IP20 with a maximum static load of 50 kg.

Advantages

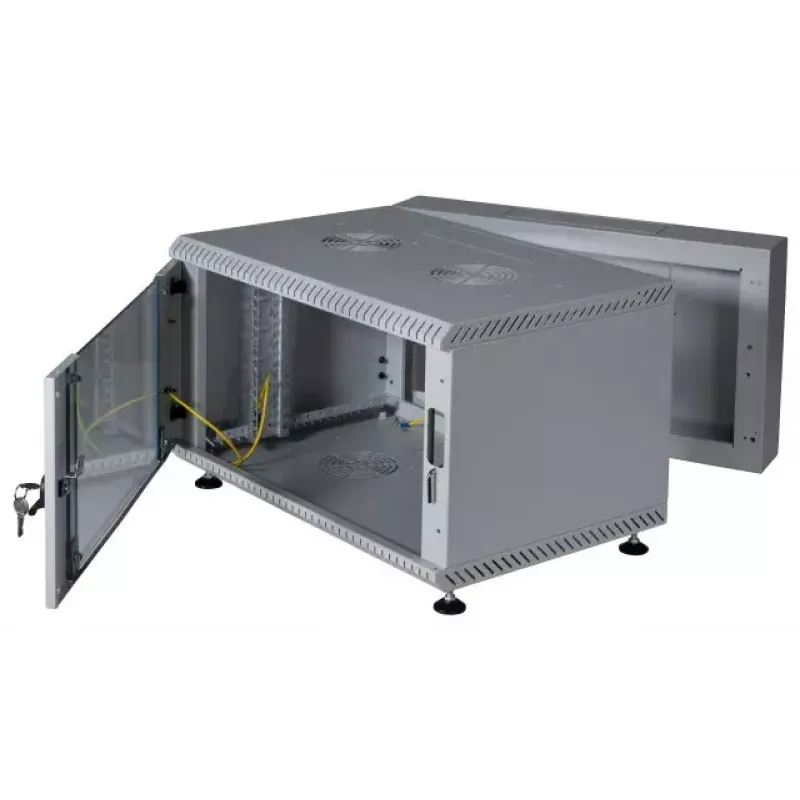

This freestanding rack provides stable front access via a rear-sided swing-frame and a lockable front door with a safety-glass window. The welded steel construction and metal hinges increase durability and stability, while pre-punched cable openings and preparations for plug & play fan units simplify installation. Depth-adjustable galvanized 19" profile rails and multiple mounting points at the bottom allow flexible mounting of equipment and leveling feet or castors.

Suitable for

• Indoor network, server and telecom equipment installations
• Small to medium IT closets, office network cabinets
• Mounting 19" active and passive components up to 18U
• Environments requiring basic IP20 protection

Key specifications

• Model: EFB Elektronik 691618VGR.60
• Rack capacity: 18U
• Dimensions (W×D×H): 600 × 600 × 860 mm
• Size: 19"
• Maximum load: 50 kg
• Protection class: IP20
• Material/finish: Steel sheet housing, RAL7035 light grey
• Front door: Lockable with safety glass window
• Rails: 2 × 19" galvanised, depth-adjustable

How to use

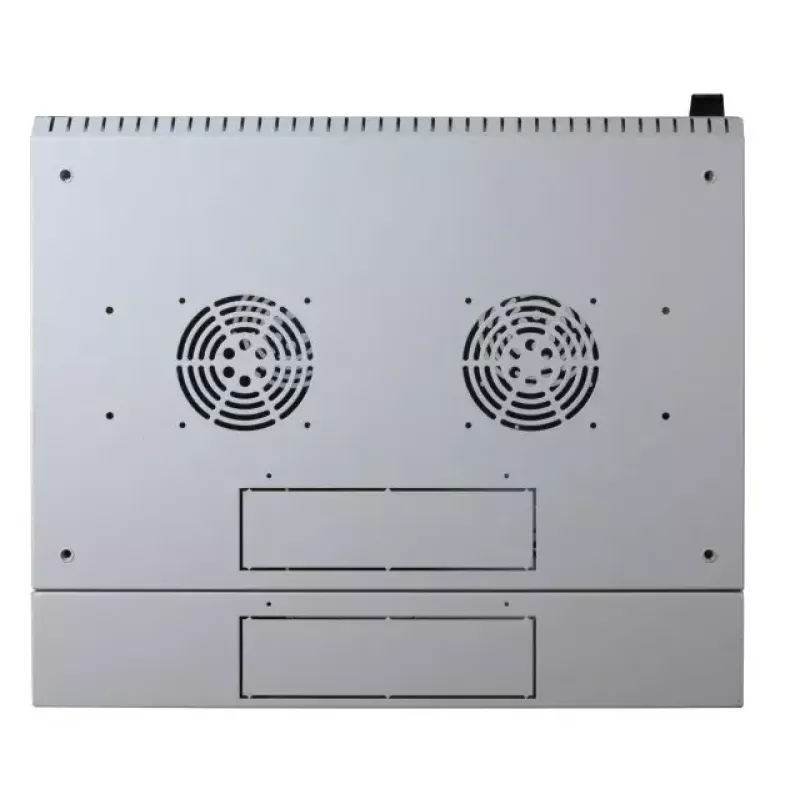

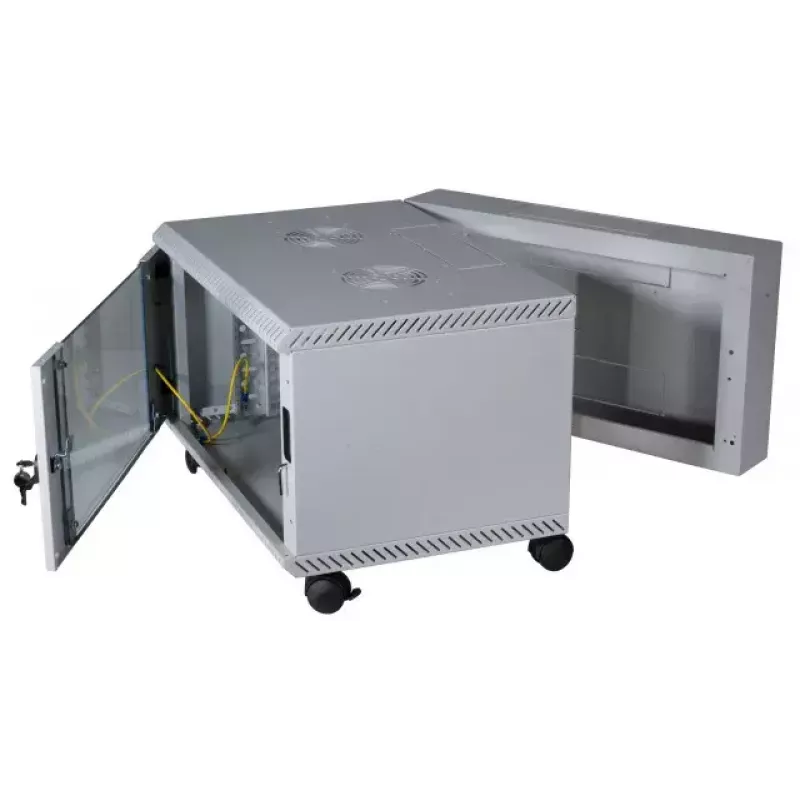

Position the freestanding rack on a flat surface and mount leveling feet or castors to the four bottom mounting points as required (ordered separately). Install equipment on the 19" profile rails, adjusting depth as needed. Use the rear swing-frame to swivel the front section for easier access during mounting or maintenance. Connect earthing according to site grounding practices. Fit fan units in prepared roof or bottom cutouts if additional ventilation is required; the cabinet is prepared for a Plug & Play 2-fan unit (Art.-No. 691656xx).
