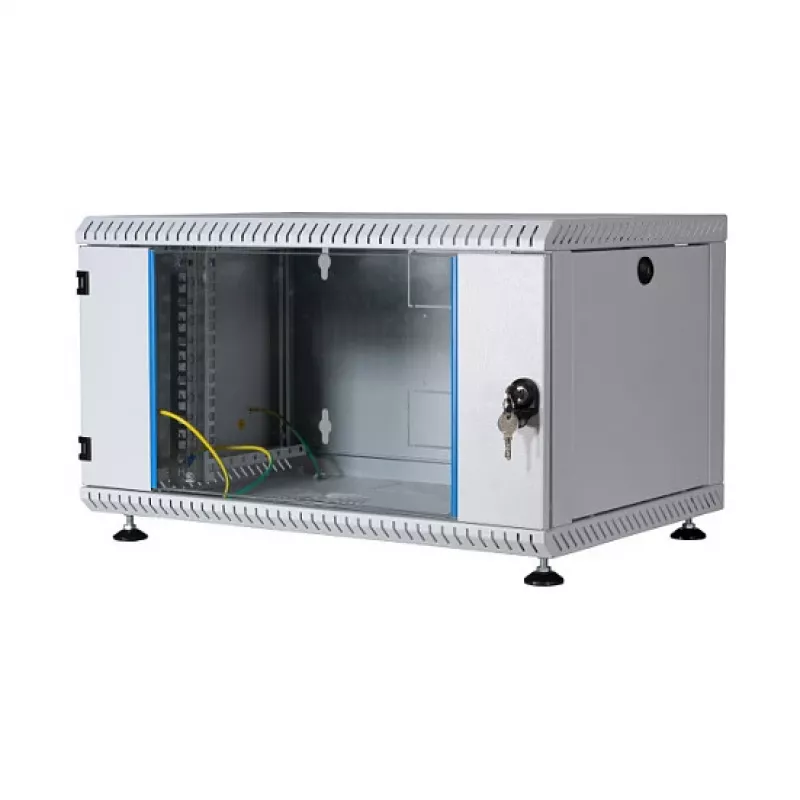

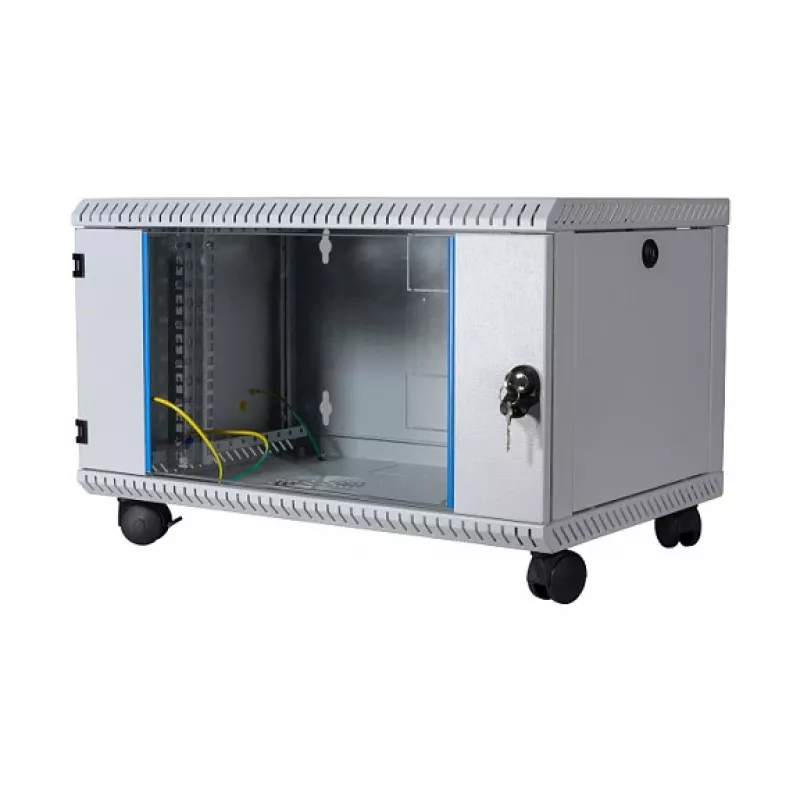

EFB Elektronik 1-Part Wall Mount Cabinet 15U 19 inch Light Grey RAL 7035 600x600x740 mm

The EFB Elektronik 1-Part Wall Mount Cabinet is a robust and reliable enclosure designed for network and IT equipment. With 15U of rack space and a 19-inch standard, it offers ample capacity for switches, patch panels, and other devices. The cabinet is constructed from powder-coated steel sheet in light grey RAL 7035, ensuring durability and a professional appearance. It features a safety glass front door with a steel frame and a 2-point locking mechanism for security. Cable entry points at the top and bottom are equipped with brush strips for effective cable management. Passive ventilation through perforated panels helps maintain optimal operating temperatures. The cabinet is pre-assembled and includes two pairs of depth-adjustable 19-inch mounting rails.

Advantages

This wall mount cabinet provides a space-saving solution for mounting 19-inch equipment in environments where floor space is limited. The lockable safety glass door offers visibility while protecting sensitive equipment. The pre-assembled design simplifies installation, and the adjustable mounting rails accommodate various equipment depths.

Suitable for

• Network switches and routers
• Patch panels and cabling
• Small to medium server installations
• IT equipment in offices, schools, and commercial spaces

Key specifications

• Cabinet Type: Wall Mount Cabinet
• Construction: 1-Part
• Rack Standard: 19 inch
• Rack Units: 15U
• External Dimensions (WxDxH): 600 x 600 x 740 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel Sheet, Powder-coated
• Front Door: Safety Glass with Steel Frame, Lockable (2-point locking)
• Side Panels: Fixed
• Cable Entry: Top and Bottom with Brush Strips

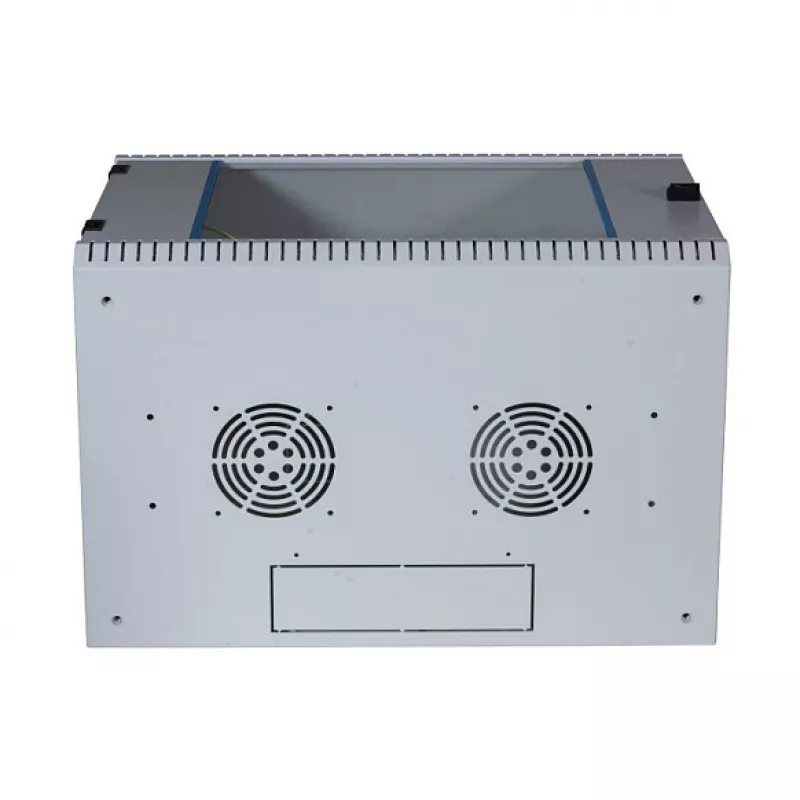

• Ventilation: Passive (perforated top/bottom)
• Max. Static Load Capacity: 60 kg
• Protection Class: IP20
• Mounting Rails: 2 pairs, 19-inch, depth-adjustable
• Assembly: Pre-assembled

Recommendations

For optimal cable management, consider using patch panels and cable managers from our accessories range. Ensure the wall is capable of supporting the cabinet's weight when fully loaded.
