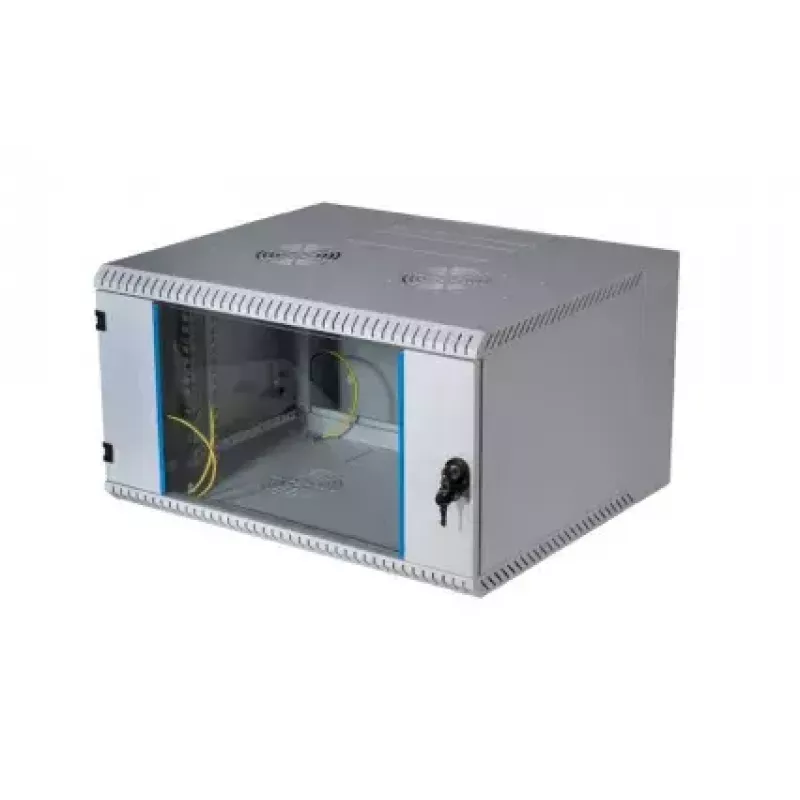

Freestanding rack EFB Elektronik 691615VGR.50 15U 50kg Grey

The EFB Elektronik 691615VGR.50 is a freestanding 19" rack cabinet with 15U mounting height and a maximum load capacity of 50 kg. Constructed from steel sheet with a welded frame and supplied pre-assembled, the cabinet offers IP20 protection and a grey finish. It is designed for housing network equipment and small servers, with removable front access and multiple prepared openings for cable entry and fan installation.

Advantages

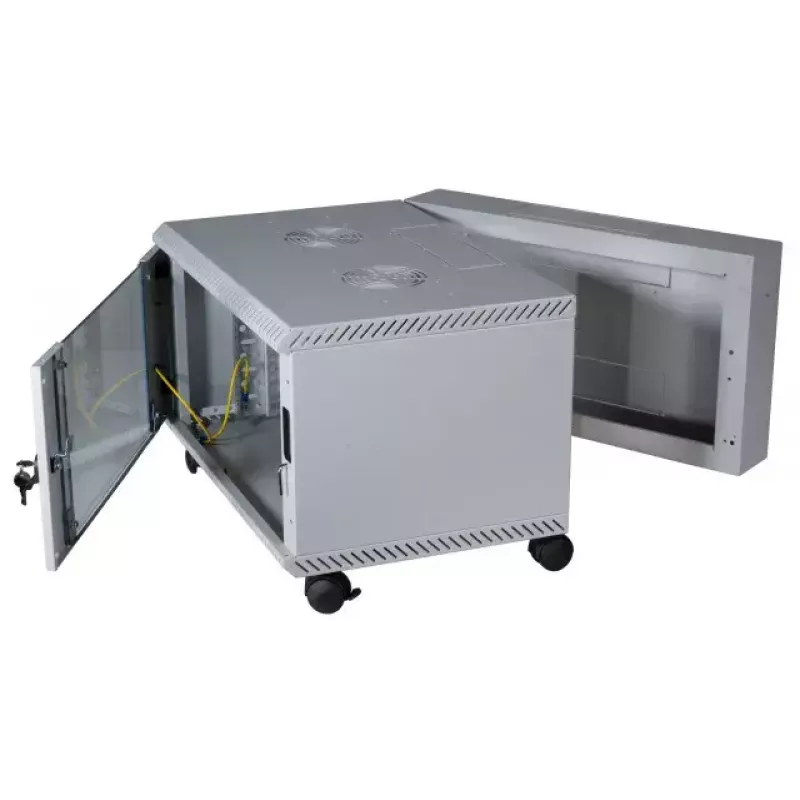

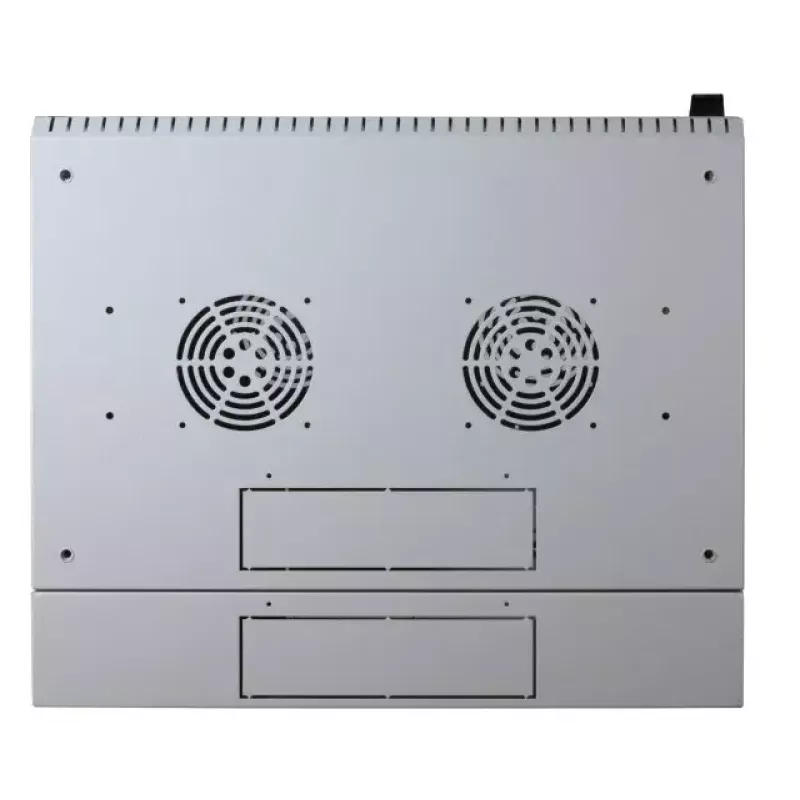

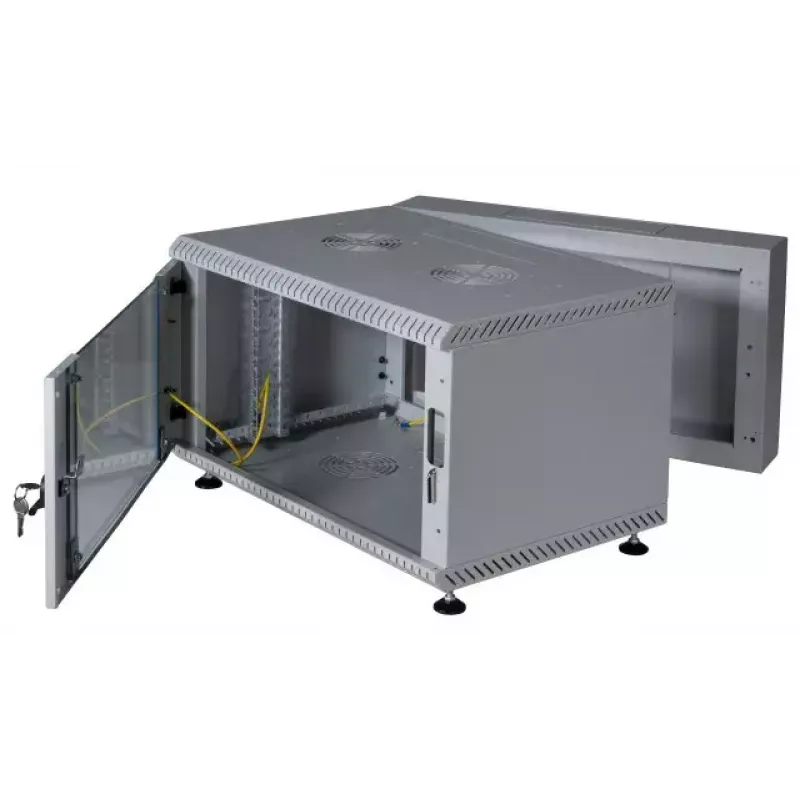

The steel sheet housing with welded frame provides structural stability while the pre-assembled design reduces installation time. A rear-sided swing-frame allows easy swiveling of the front part for access to mounted equipment. The front door uses metal hinges for increased durability. The cabinet is prepared for a Plug & Play 2-fan unit and for mounting single fan units in the roof and bottom, and the bottom includes four mounting points for optional leveling feet or castors (ordered separately).

Suitable for

• Housing network switches, patch panels and small servers
• IT installations in offices, server rooms and telecom closets
• Environments requiring compact, freestanding rack solutions

Key specifications

• Brand: EFB Elektronik
• Model: 691615VGR.50
• Rack size: 19"
• Mounting height: 15U
• Maximum load: 50 kg
• Width: 600 mm
• Depth: 500 mm
• Height: 730 mm
• IP rating: IP20
• Colour: Grey
• Prepared for: Plug & Play 2-fan unit (Art.-No. 691656GR) and single fan units in roof and bottom
• Cable entry openings: pre-punched 250 x 70 mm in roof, bottom and rear wall

How to use

Place the freestanding rack on a level surface and, if required, install leveling feet or a castor set in the four mounting points at the bottom (ordered separately). Mount 19" equipment into the 15U frame following standard rack mounting procedures. Use the rear-sided swing-frame to swivel the front portion for easier access during installation and maintenance. Fit fan units in the prepared roof or bottom positions or install the Plug & Play 2-fan unit where required. Route cables through the pre-punched 250 x 70 mm openings in the roof, bottom or rear wall.

Recommendations

For safe and optimal operation, distribute mounted equipment to keep the centre of gravity low and avoid exceeding the 50 kg maximum load. Use compatible fan units and ensure adequate ventilation. Order leveling feet or castors separately if mobility or precise levelling is required.
