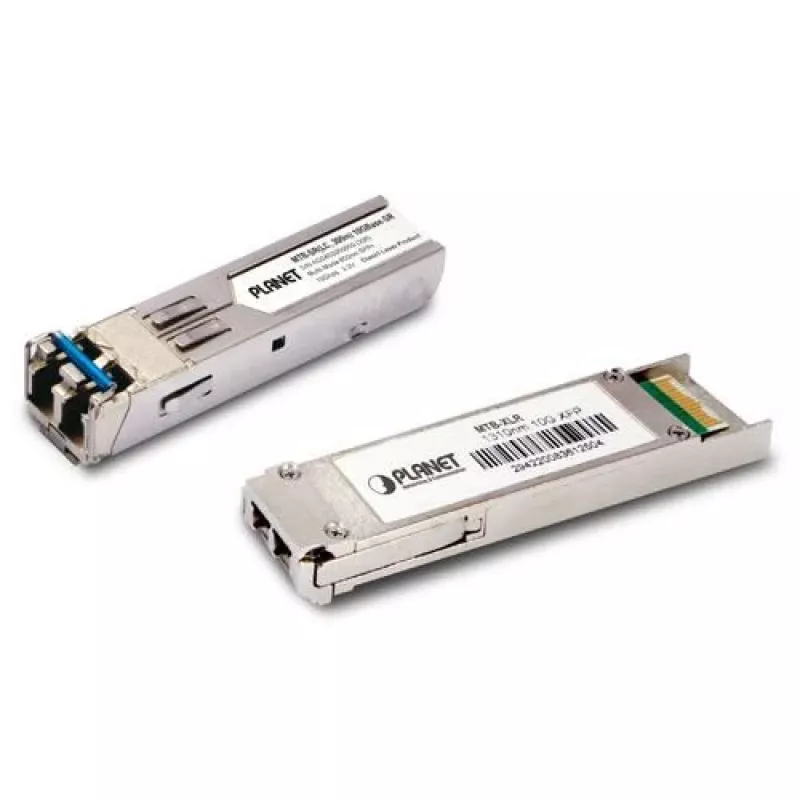

Fiber optic transceiver module PLANET MTB-SR 10000 Mbit/s SFP+ 850 nm

The PLANET MTB-SR is a fiber optic SFP+ transceiver module that supports 10G (10000 Mbit/s) Ethernet links. Operating at 850 nm wavelength, this module is compatible with devices featuring 10G SFP+ interfaces and is intended for enterprise, telecom and ISP networks as well as data center cloud computing environments. The module is available for multimode (short-range) connections and extends link distances up to 300 meters on multimode fiber and up to 10 kilometers on single-mode fiber when used with appropriate optics.

Advantages

The MTB-SR provides high-speed 10G data transfer and a metallic enclosure that helps with durability and heat dissipation. It is interoperable with PLANET 10G SFP+ and 10G XFP interfaces and is suitable for upgrading existing network equipment to 10G capacity. The transceiver supports standard LC connectors and offers reliable optical connectivity for a range of network deployments.

Suitable for

• Upgrading enterprise switches and routers to 10G SFP+ ports
• Data center server and storage interconnects
• Telecom and ISP backbone links
• Short-range multimode fiber connections (up to 300 m) and longer single-mode links (up to 10 km) when using matching optics

Key specifications

• Model: PLANET MTB-SR (MPN: MTB-SR, EAN: 4711213686849)
• Data rate: 10000 Mbit/s (10G)
• Form factor: SFP+
• Wavelength: 850 nm
• Connector type: LC
• Typical reach: up to 300 m (multimode), up to 10 km (single-mode, depending on optics)
• Housing: metallic enclosure

How to use

Insert the MTB-SR SFP+ transceiver into a compatible 10G SFP+ slot on your switch, router or server chassis until it seats firmly. Connect an LC-terminated fiber patch cable to the module, observing correct transmit/receive orientation. After physical installation, verify link status and configure the network device as required for 10G operation. Ensure the connected fiber type (multimode or single-mode) and cable distance match the module’s capabilities.

Recommendations

The module should be handled in an electrostatic-safe environment and kept with dust caps on the fiber ports when not in use. Confirm compatibility with the host device firmware and use appropriate transceiver-compatible fiber (MMF for 850 nm short-reach) to achieve the specified distances.
