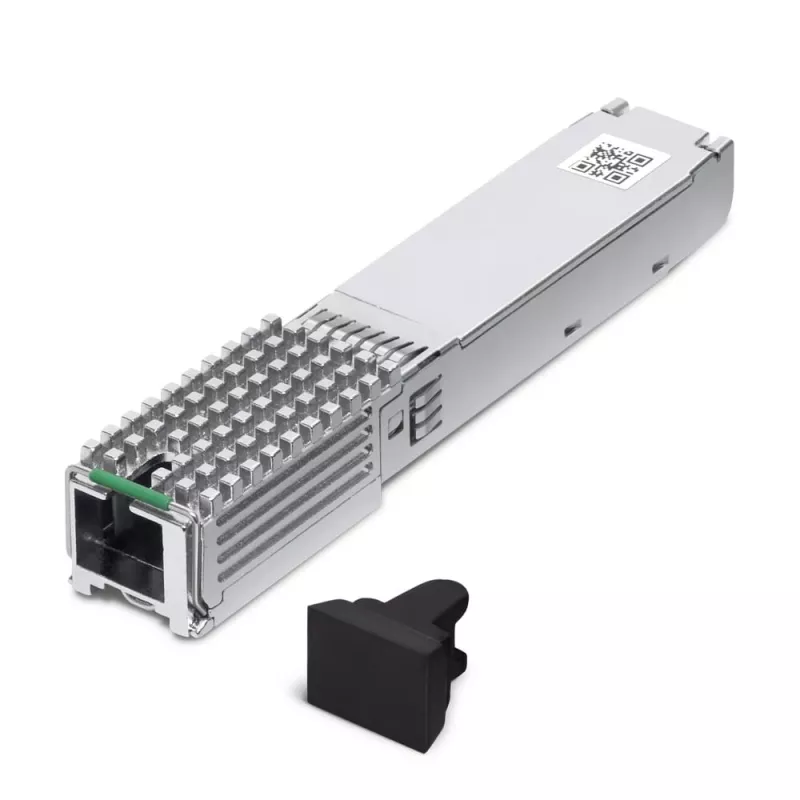

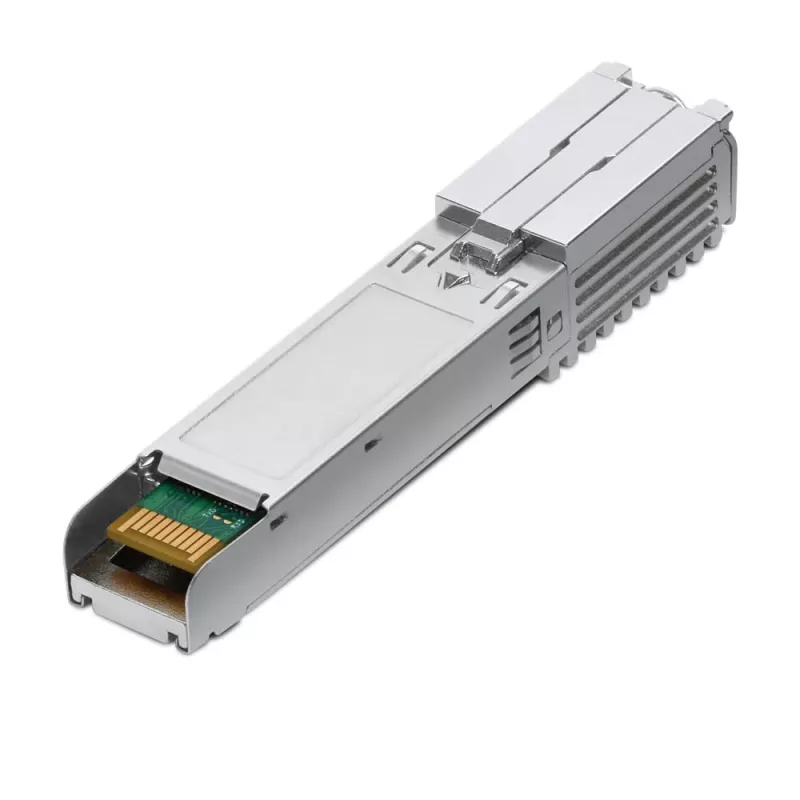

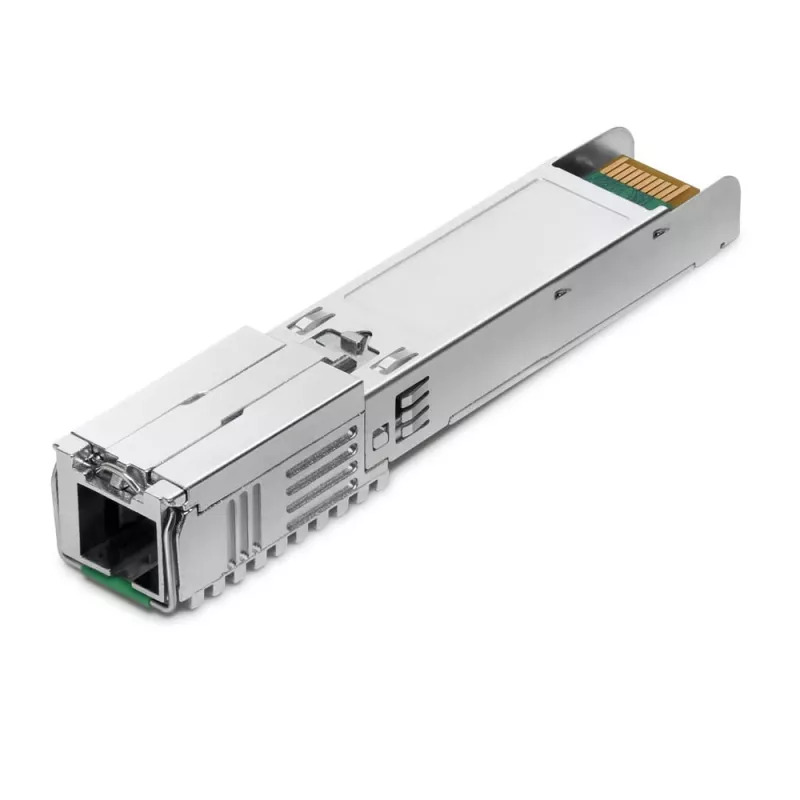

TP-LINK XM60A V1 SFP GPON ONU Mini-GBIC Transceiver Module - 1GbE/2.5GbE - SC/APC Single-mode - up to 20 km - 1310nm (TX)

The TP-LINK XM60A V1 is a high-performance GPON ONU SFP transceiver module designed for modern fiber networks. It provides seamless wired connectivity with a 2.5 Gigabit Ethernet interface supporting data rates up to 2.488 Gbps. This module is built for reliability, operating over a wide temperature range and capable of transmitting data over distances up to 20 km. Compliance with key standards such as FSAN, ITU-T G.984, and ITU-T G.988 ensures compatibility and performance in various configurations. Additional features like Digital Diagnostics Monitoring (DDM) and hot-swap capability make the XM60A V1 an essential component for any network requiring durability, long reach, and easy maintenance.

Advantages

High-speed data transmission up to 2.5 Gbps, long-distance reach up to 20 km, and robust design for reliable operation in diverse environments. The hot-swappable SFP form factor allows for easy installation and replacement without network downtime. DDM provides real-time monitoring of optical parameters for proactive maintenance.

Suitable for

• GPON fiber networks
• FTTH (Fiber to the Home) deployments
• Enterprise and carrier-grade network infrastructure
• Long-distance point-to-point connections

Key specifications

• Interface: 1x 2.5G Ethernet (SFP)
• Connector: SC/APC single-mode
• Wavelength: 1310 nm (TX)
• Max distance: 20 km
• Data rate: 2.488 Gbps
• Standards: FSAN, ITU-T G.984, ITU-T G.988
• Features: DDM, Hot-Plug support

Recommendations

For optimal performance, pair the XM60A V1 with a compatible GPON OLT and ensure proper fiber cable specifications (single-mode, SC/APC). This module is ideal for upgrading existing networks to higher speeds or extending network reach.
