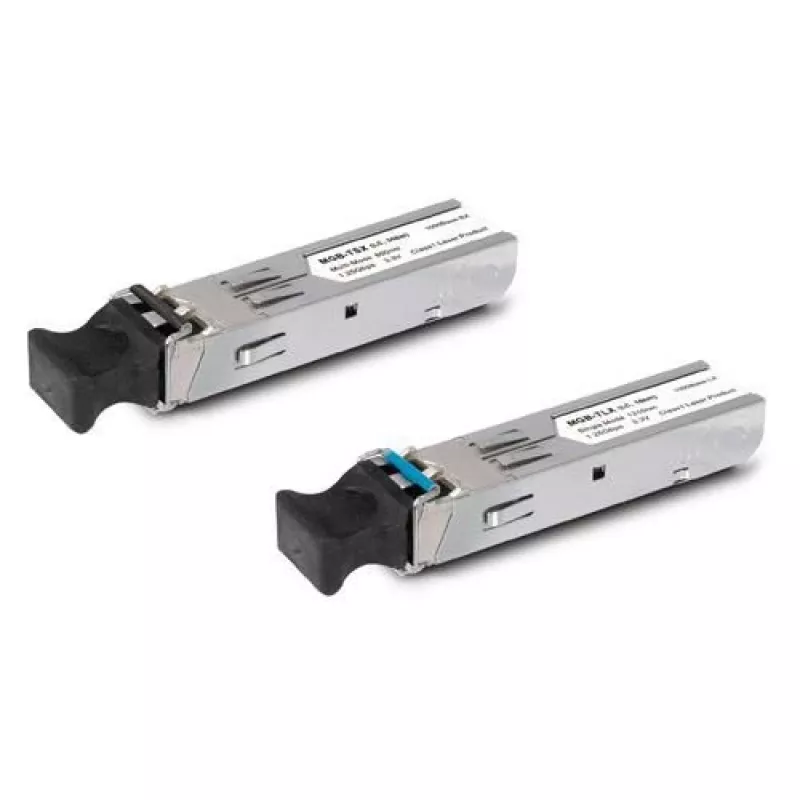

Fiber optic transceiver module PLANET MGB-L40

The PLANET MGB-L40 is a mini-GBIC (SFP) fiber optic transceiver module supporting 1000BASE-LX single-mode operation at 1310 nm and a data rate of 1000 Mbit/s. It is hot-pluggable and compliant with the SFP Multi-Source Agreement (MSA), designed for straightforward integration into SFP-compatible network equipment to extend fiber links over long distances.

Advantages

The MGB-L40 offers hot-pluggable installation and SFP MSA compliance for compatibility with many network devices. It supports long-distance single-mode transmission up to typical LX ranges and is built for reliable 1000 Mbit/s duplex data links. Its compact mini-GBIC form factor allows easy replacement or upgrades without interrupting host equipment operation.

Suitable for

• Connecting switches, routers and media converters with SFP slots
• Extending network links over single-mode fiber (long distance)
• Enterprise, data center and industrial network uplinks requiring 1 Gbit/s

Key specifications

• Model: PLANET MGB-L40 (MPN: MGB-L40, EAN: 4711605283984)
• Form factor: SFP / mini-GBIC, hot-pluggable
• Standard: 1000BASE-LX (Gigabit Ethernet)
• Wavelength: 1310 nm
• Data rate: 1000 Mbit/s (full duplex)
• Connector type: LC (single-mode)
• Package: 1 pc

How to use

Insert the MGB-L40 module into an SFP-compliant slot on your switch, router or media converter while the host supports hot-plugging. Connect the single-mode LC fiber cable to the module's LC interface, ensuring correct transmit/receive orientation. Verify link status on the host device and configure network settings as required by your equipment. Replace modules only with compatible SFP devices to maintain proper operation.

Recommendations

The module is intended for single-mode fiber connections at 1310 nm and typical LX distance ranges; use appropriate fiber type and quality for expected link distances and follow ESD handling precautions when installing or removing the SFP module.
