Fiber optic transceiver module BlueOptics 740-030658-BO SFP+ 300m

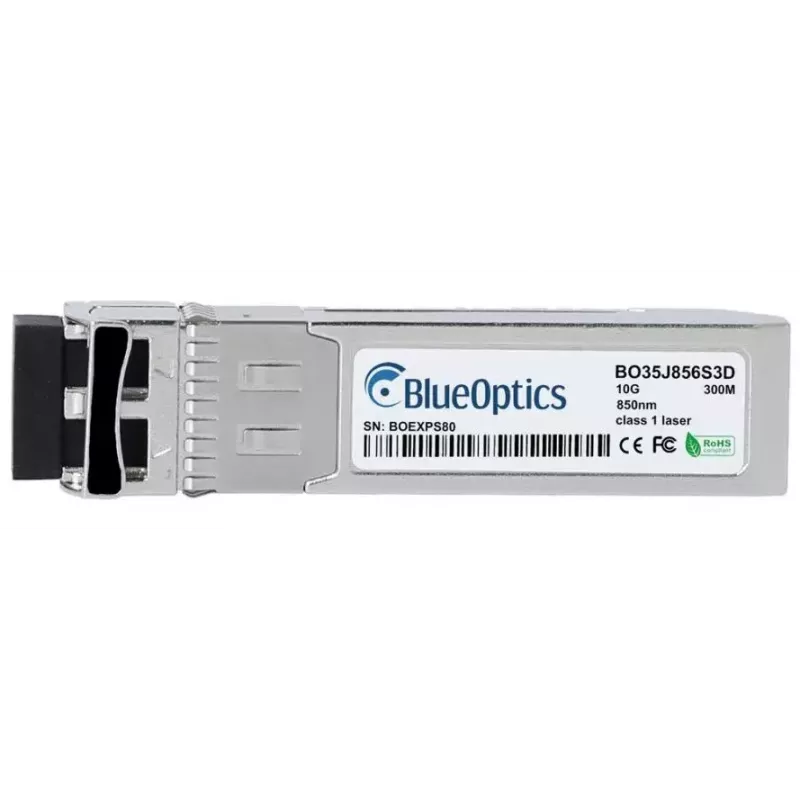

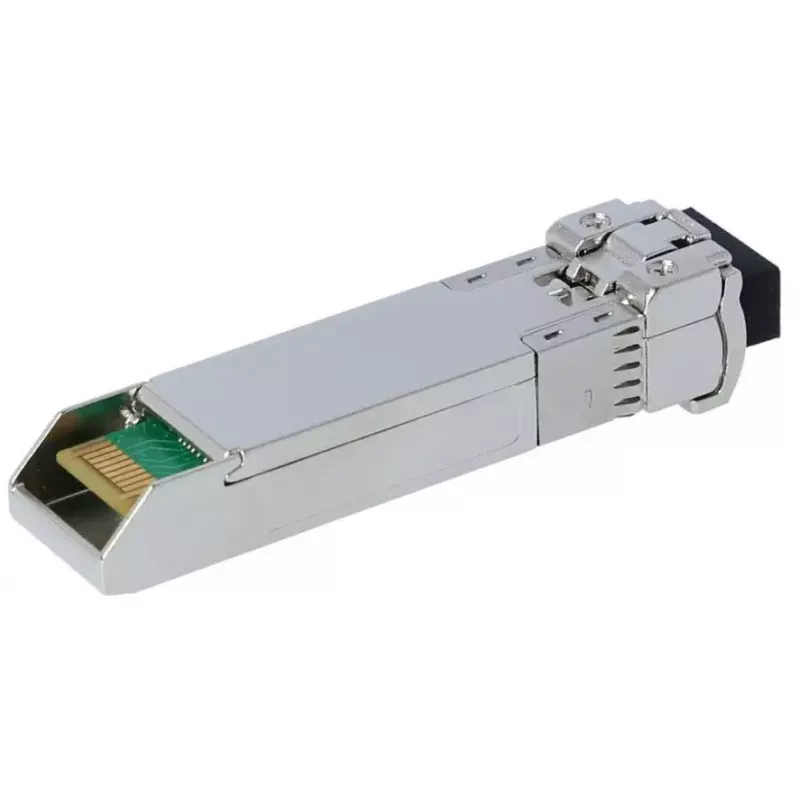

The BlueOptics 740-030658-BO SFP+ 300m is a fiber optic transceiver module designed for 10G optical links over multimode fiber up to 300 meters. Encased in aluminium and weighing approximately 20 grams, this SFP+ module uses an LC duplex connector and conforms to MSA SFP+ physical interface standards to provide reliable high-speed connectivity in compatible network equipment. The module supports 10GBASE-SR optical signalling with 850 nm transmitter and receiver wavelengths and is supplied as an individual, ready-to-install unit.

Advantages

The transceiver provides 10 Gbps data transmission over multimode fiber with a compact SFP+ form factor that fits many switches, routers and storage systems that accept SFP+ optics. Its aluminium housing offers mechanical robustness and thermal dissipation while the LC duplex interface enables simultaneous transmit and receive channels. The module is engineered to the mechanical and electrical MSA specifications for broad interoperability and supports digital diagnostic monitoring when used in hardware that exposes that capability.

Suitable for

• 10 Gigabit Ethernet links over multimode fiber within data centers
• High-speed links between switches and routers up to 300 m
• Storage area network interconnects and server uplinks supporting SFP+
• Replacement or upgrade of compatible 10GBASE-SR SFP+ ports in enterprise equipment

Key specifications

• Interface type: SFP+ (MSA compliant)
• Optical standard: 10GBASE-SR
• Wavelength: 850 nm (transmit and receive)
• Connector: LC duplex
• Maximum reach: up to 300 meters on multimode fiber
• Housing material: aluminium
• Weight: ~0.02 kg

How to use

Install the BlueOptics SFP+ module into an SFP+ compatible port following the host device manufacturer's hot-swap procedures. Connect LC duplex multimode fiber patch cables with correct polarity to the module's LC ports; ensure fibers and connectors are clean to prevent signal loss. Once seated and connected, verify link status on the host device and check for any digital diagnostic information if supported by the equipment. For optimal performance, use multimode fiber and cabling certified for 10GBASE-SR distances.

Recommendations

Ensure compatibility by confirming the host device supports 10GBASE-SR SFP+ modules and, if needed, enable or verify digital diagnostics (DDM/DOM) support. Use quality multimode fiber patch cords and maintain clean connectors. Avoid exposing the module to extreme mechanical shock or temperatures outside the host equipment's specifications.
