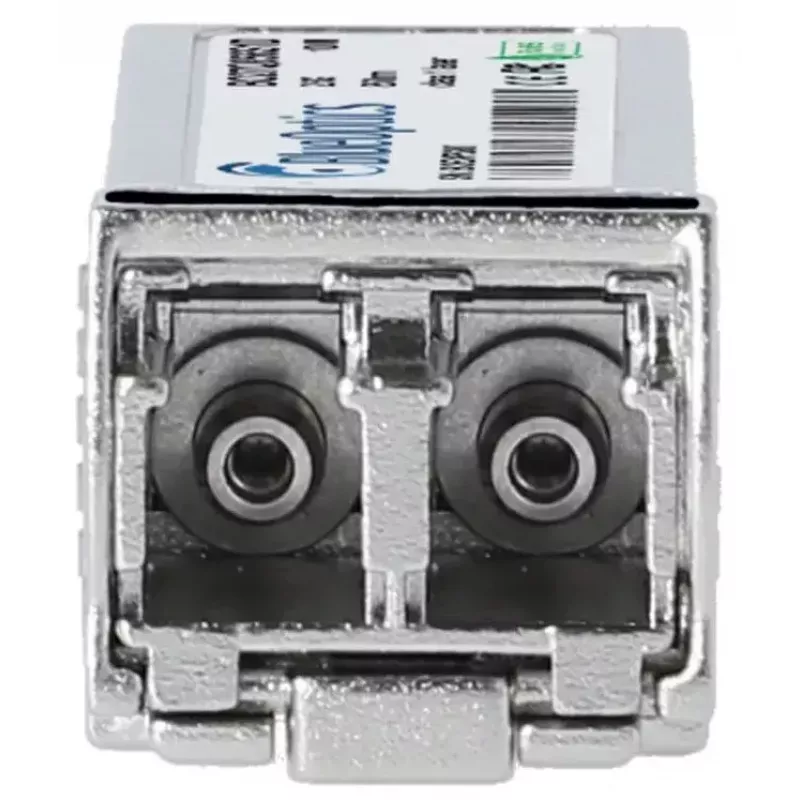

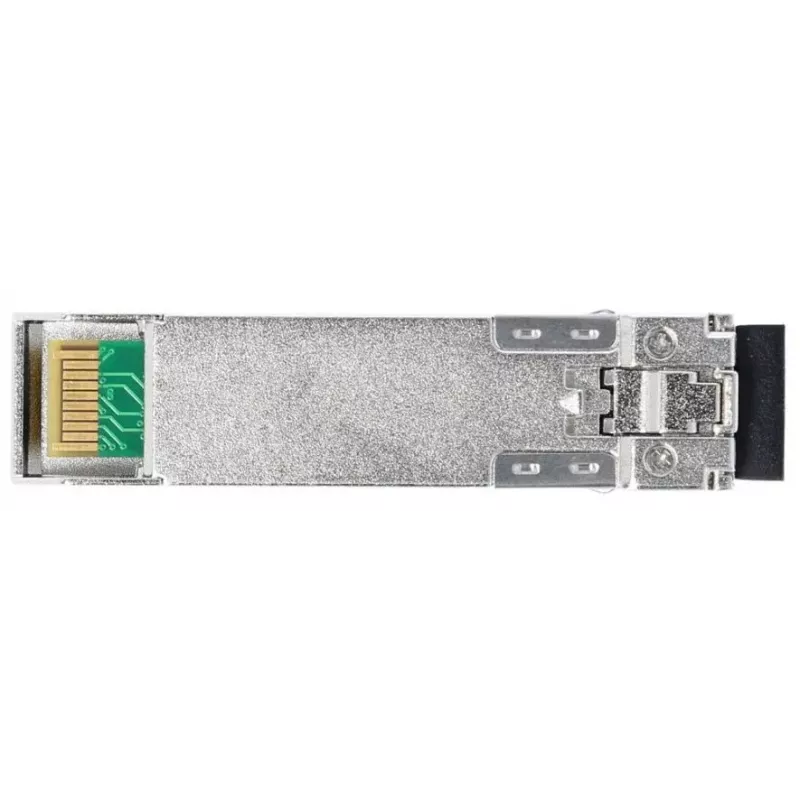

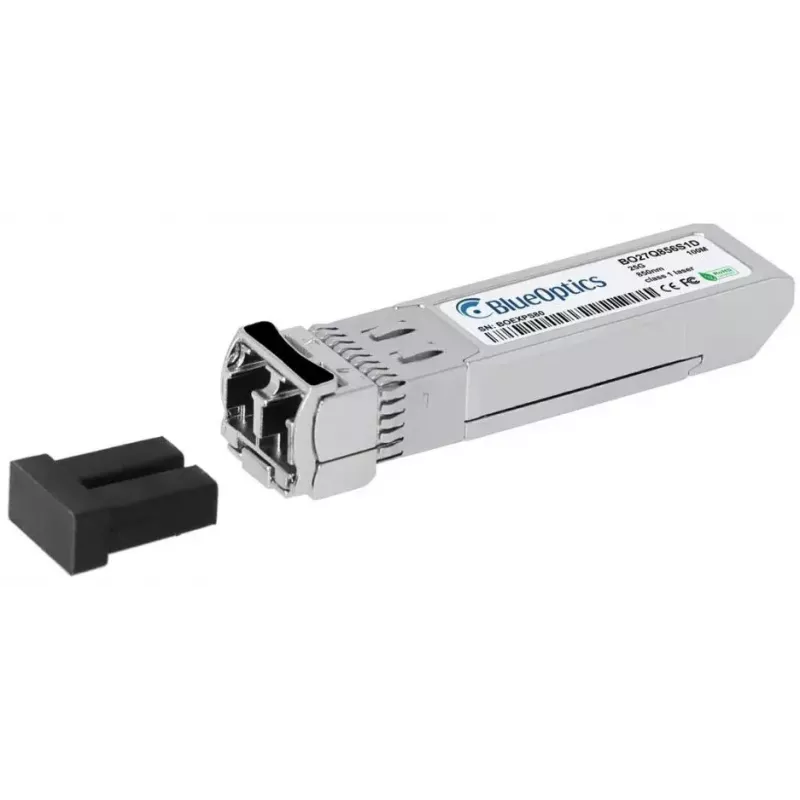

Fiber optic transceiver module BlueOptics 407-BCHI-BO SFP28 100m

The BlueOptics 407-BCHI-BO SFP28 100m is a fiber optic transceiver module designed for 25G high-speed links over multimode fiber. Built in an aluminium housing and weighing approximately 20 grams, this compact SFP28 module provides optical transmit and receive functions via an LC duplex connector and supports reach up to 100 metres. The module follows common MSA SFP28 form-factor conventions and is intended for integration into network equipment that accepts SFP28 transceivers.

Advantages

The transceiver offers a compact aluminium housing and low weight for space- and weight-sensitive installations. It is designed for 25G optical transmission over multimode fiber at short range and provides a standard LC duplex interface for straightforward connection. The module supports monitoring functionality defined by common SFP/DDM standards for remote diagnostics when the host hardware exposes those features.

Suitable for

• Short-reach 25G Ethernet links in data centre racks
• Interconnects between switches, routers and storage enclosures within the same building
• High-density networking environments requiring SFP28 transceivers

Key specifications

• Interface type: SFP28
• Maximum transmission distance: up to 100 m over multimode fiber
• Connector: LC duplex
• Housing material and colour: aluminium / aluminium finish
• Weight: approximately 0.02 kg
• Wavelength: 850 nm (multimode, short range operation)

How to use

Install the BlueOptics 407-BCHI-BO by inserting the SFP28 module into a compatible SFP28 slot on your switch, router or storage device until it latches. Connect an LC duplex multimode fiber patch cable between the module and the remote transceiver or patch panel, observing correct transmit/receive orientation. Ensure that the host device is configured for the intended 25G protocol and that any required port settings or firmware support for third-party transceivers are enabled. If the system supports digital diagnostics (DDM/DOM), monitor supply voltage, optical power and temperature through the host management interface.

Recommendations

Use OM3/OM4 multimode fiber and quality LC duplex patch cables for optimal reach and signal quality. Verify host compatibility with SFP28 25GBASE-SR modules and enable or test digital diagnostic monitoring where available. Protect the module and fiber connectors from dust and mechanical stress; store spare modules in protective caps when not in use.
