Extralink Patchcord LC/UPC-SC/UPC Single Mode Duplex G652D 20m

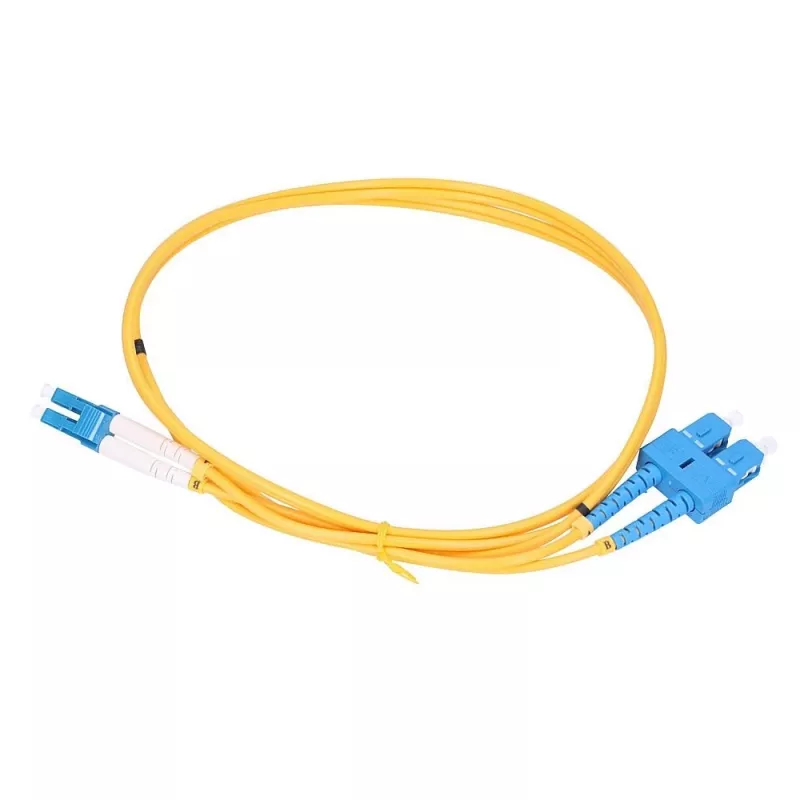

Extralink Patchcord LC/UPC-SC/UPC Single Mode Duplex G652D 20m is a 20-meter single-mode duplex fiber optic patch cord with G.652D fiber. Terminated with LC/UPC and SC/UPC connectors, this patchcord is intended for connecting optical networking equipment such as switches, media converters and FTTH devices (OLT, ONU/ONT).

Advantages

The patchcord uses G.652D single-mode fiber for low attenuation and stable signal transmission over long distances. Duplex termination with LC/UPC and SC/UPC connectors ensures wide compatibility with common telecom and data center equipment. With a 3 mm cable diameter and factory-terminated connectors, the cable provides reliable mechanical protection and plug-and-play installation.

Suitable for

• FTTH connections between OLT and ONU/ONT
• Interconnection of switches and media converters in telecom racks
• Patch panels and fiber distribution frames in data centers
• Point-to-point optical links requiring single-mode duplex cabling

Key specifications

• Length: 20 m
• Fiber type: Single-mode G.652D
• Configuration: Duplex
• Connectors: LC/UPC to SC/UPC
• Cable diameter: 3 mm
• Brand: Extralink
• MPN: EX.16378
• EAN: 5903148916378

How to use

Install the patchcord by inserting the LC/UPC and SC/UPC connectors into the corresponding adapter or device ports until they click. Ensure fiber connectors and adapter ports are clean before mating to avoid signal loss. Route the cable without sharp bends and secure it along cable trays or ties, keeping minimum bend radius recommended for 3 mm single-mode fiber.

Recommendations

Before installation, inspect and, if necessary, clean connector end-faces with appropriate fiber cleaning tools. Avoid excessive pulling force and tight bending; store the patchcord coiled without kinks. For long-term installations in active telecom equipment, verify link loss with an optical power meter or VFL after connection.
