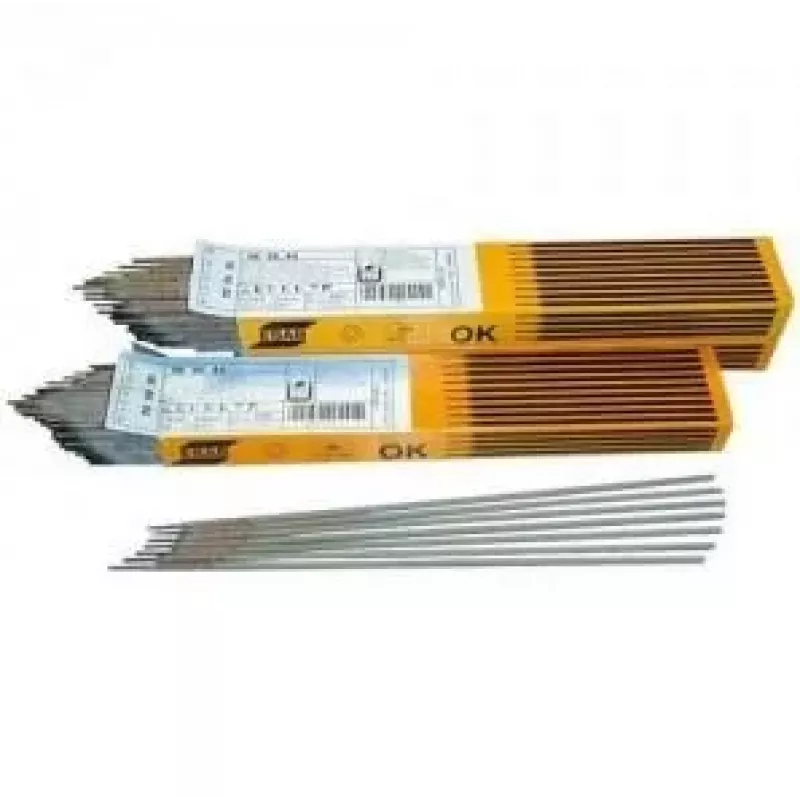

ESAB EB 150 Basic Electrode 3.2mm 6kg E7018-1 H4R

The ESAB EB 150 is a high-quality basic, low-hydrogen electrode designed for welding unalloyed and low-alloyed high-strength steels. With an AWS classification of E7018-1 H4R and EN ISO classification of E 42 4 B 42 H5, this electrode delivers excellent mechanical properties and low hydrogen content (<5 ml/100g), making it ideal for critical applications such as pressure vessels, shipbuilding, structural steel, and pipe welding.

Advantages

Low hydrogen content ensures reduced risk of hydrogen-induced cracking. Excellent impact strength at low temperatures (100-180 J at -40°C). Smooth arc stability and easy slag removal. Suitable for all welding positions except vertical down.

Suitable for

• Pressure vessels and boilers
• Shipbuilding and offshore structures
• Structural steel construction
• Pipe welding
• General fabrication of high-strength steels

Key specifications

• Electrode Type: Basic, Low-Hydrogen
• AWS Classification: E7018-1 H4R
• EN ISO Classification: E 42 4 B 42 H5
• Diameter: 3.2 mm
• Length: 350 mm
• Package Weight: 6 kg
• Welding Current: DC+ / AC (min OCV 70V)
• Current Range: 90-140 A
• Yield Strength: 420-480 MPa
• Tensile Strength: 520-600 MPa
• Elongation: 24-28%
• Impact Strength: 100-180 J at -40°C
• Hydrogen Content: <5 ml/100g (H5)
• Re-drying: 300-350°C for 2 hours
• Welding Positions: All except vertical down
• Coating Type: Basic

Recommendations

For optimal results, store electrodes in a dry environment and re-dry according to specifications before use. Suitable for welding high-strength steels where low hydrogen is critical.
