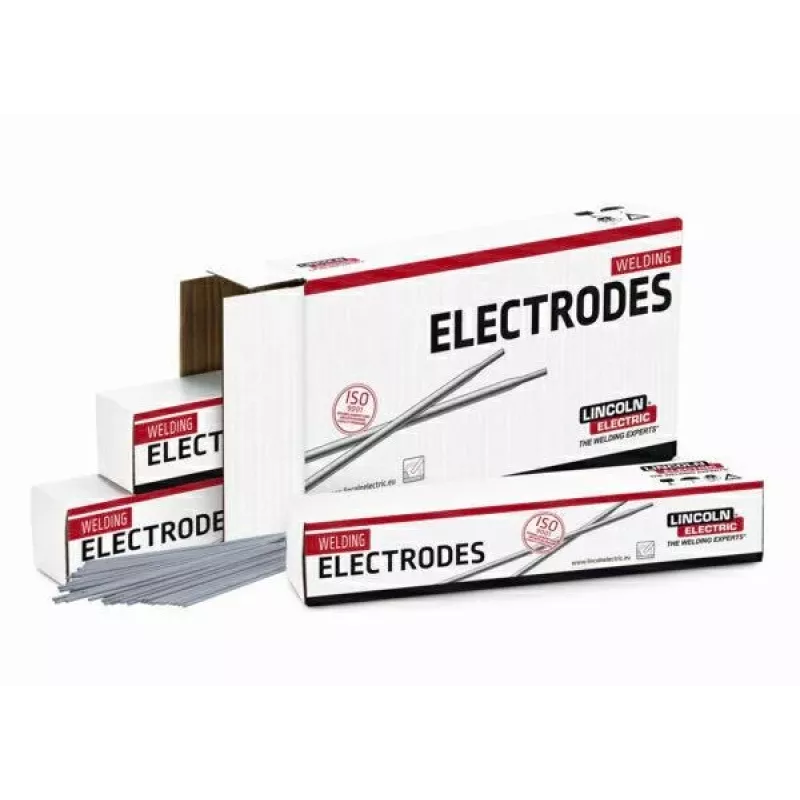

LINCOLN NORMAL ELECTRODE FI 4.0/6.1kg (318pcs) - Rutile E6013 Welding Rod, 4.0 mm x 450 mm, 6.1 kg Pack

For welders who demand a smooth, stable arc with minimal spatter, the LINCOLN NORMAL ELECTRODE FI 4.0 stands apart from generic rutile electrodes. Its carefully balanced coating ensures easy slag removal and excellent re-striking, making it a reliable choice for both seasoned professionals and those honing their skills. This 6.1 kg pack contains 318 electrodes, each 4.0 mm in diameter and 450 mm long, providing ample supply for extensive fabrication work.

Highlights

• Rutile-coated E6013 electrode for all-position welding, including vertical down
• Soft, stable arc with low spatter and self-lifting slag for clean welds
• Excellent re-striking capability reduces downtime during tack welding
• Compatible with AC and DC currents, offering flexibility on various machines
• Good moisture resistance ensures consistent performance in varied environments
• Approved by CE, TÜV, ABS, LR, DNV, BV, and GL for quality assurance

In daily use

This electrode excels in general fabrication, structural steel work, sheet metal repair, and maintenance tasks. Its medium coating factor and easy arc control make it forgiving for less experienced welders, while the high deposition rate satisfies production demands. The recommended amperage range of 120–180 A suits a wide array of power sources, and the electrode's ability to weld in all positions—including vertical down—adds versatility on the job site. The slag peels away easily, often self-lifting, which speeds up post-weld cleaning and inspection.

Full specifications

• Electrode type: Rutile
• AWS classification: E6013
• Diameter: 4.0 mm
• Length: 450 mm
• Pack weight: 6.1 kg
• Quantity per pack: 318 pieces
• Welding current: AC / DC (+/-)
• Welding positions: All positions (including vertical down)
• Tensile strength (min.): 430 MPa (60 ksi)
• Yield strength (min.): 330 MPa (48 ksi)
• Elongation (min.): 22%
• Recommended amperage: 120–180 A
• Slag characteristics: Easy removable, self-lifting
• Arc characteristics: Soft, stable, low spatter
• Re-striking: Excellent
• Typical applications: General fabrication, structural steel, sheet metal, maintenance, shipbuilding
• Base material compatibility: Mild steel, low carbon steel
• Coating factor: Medium
• Approvals: CE, TÜV, ABS, LR, DNV, BV, GL
• Moisture resistance: Good

Final note

With its robust approvals and consistent performance, the LINCOLN NORMAL ELECTRODE FI 4.0 is a dependable choice for any workshop seeking quality welds without compromise.
