Ernitec 0070-1322A security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

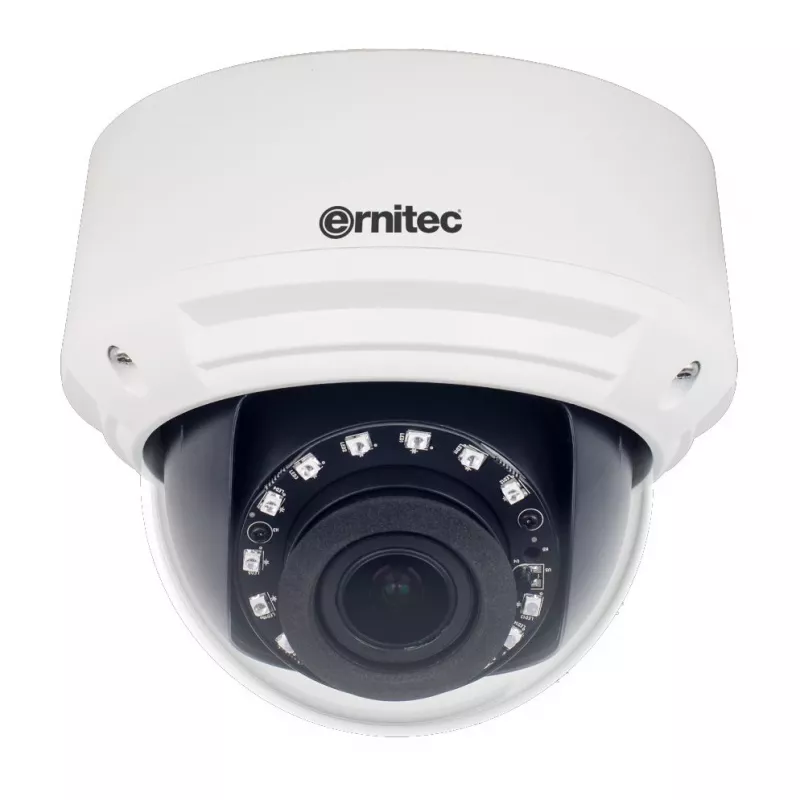

The Ernitec 2MP Analog Vandal Dome Camera (model 0070-1322A) is a dome surveillance camera with 1920×1080 resolution and robust metal housing, designed for reliable indoor and outdoor monitoring. It uses a 1/2.8” progressive scan CMOS sensor, offers motorized focus (2.8–12 mm) and provides night vision up to 30 m with 15 IR LEDs. The camera is IP66 and IK10 rated for dust, water and impact resistance, and operates from DC12V with a maximum power consumption of 4 W (IR on).

Advantages

The camera delivers clear 1080P video at PAL 25fps or NTSC 30fps and features strong low-light sensitivity (0.001 Lux at F1.2, AGC ON) plus 0 Lux with IR enabled. Motorized lens adjustment and a wide horizontal field of view (94.9°–37.1°) allow flexible coverage. Built-in wide dynamic range (WDR) improves image clarity in mixed lighting, and pan/tilt/rotation ranges (pan 0°–355°, tilt 0°–80°, rotation 0°–355°) support comprehensive scene positioning. An OSD menu with joystick simplifies configuration and day/night modes provide automatic or manual color/B&W selection.

Suitable for

• Indoor surveillance of lobbies, corridors and retail spaces
• Outdoor monitoring of entrances, parking areas and perimeters
• Night-time security where IR illumination up to 30 m is required
• Environments requiring impact- and weather-resistant cameras (IP66, IK10)

Key specifications

• Image sensor: 1/2.8” Progressive Scan CMOS
• Resolution: 1920×1080 (1080P)
• Frame rate: PAL 25 fps / NTSC 30 fps
• Lens: Motorized 2.8–12 mm, Horizontal angle 94.9°–37.1°
• Minimum illumination: 0.001 Lux (Color, F1.2, AGC ON); 0 Lux (IR on)
• IR distance: up to 30 m (15 IR LEDs)
• Pan/Tilt/Rotation: Pan 0°–355°, Tilt 0°–80°, Rotation 0°–355°
• WDR: Yes
• Ingress protection / impact: IP66 / IK10
• Power supply: DC12V ±10%, max power 4 W (IR ON)
• Operating temperature: -10 °C to 55 °C; Humidity <85% RH
• Dimensions: Φ130 × 112 mm; Net weight: 0.67 kg
• Certifications: CE, FCC

How to use

Mount the dome camera on a stable surface using appropriate screws and anchors for the installation site. Connect a DC12V power supply and route the video cable to your analog DVR or compatible recorder. Use the motorized lens controls to adjust focal length and the joystick-accessible OSD menu to configure exposure, WDR, day/night mode and other settings. Position the pan/tilt/rotation to cover the required area and verify night performance by testing with IR enabled.

Recommendations

Install the camera at a height that provides an unobstructed view and prevents easy tampering; clean the dome cover periodically and avoid mounting where extreme temperatures or humidity above specified limits are expected. For best low-light results, keep the lens clear of obstructions and set appropriate AGC and IR sensitivity in the OSD.
