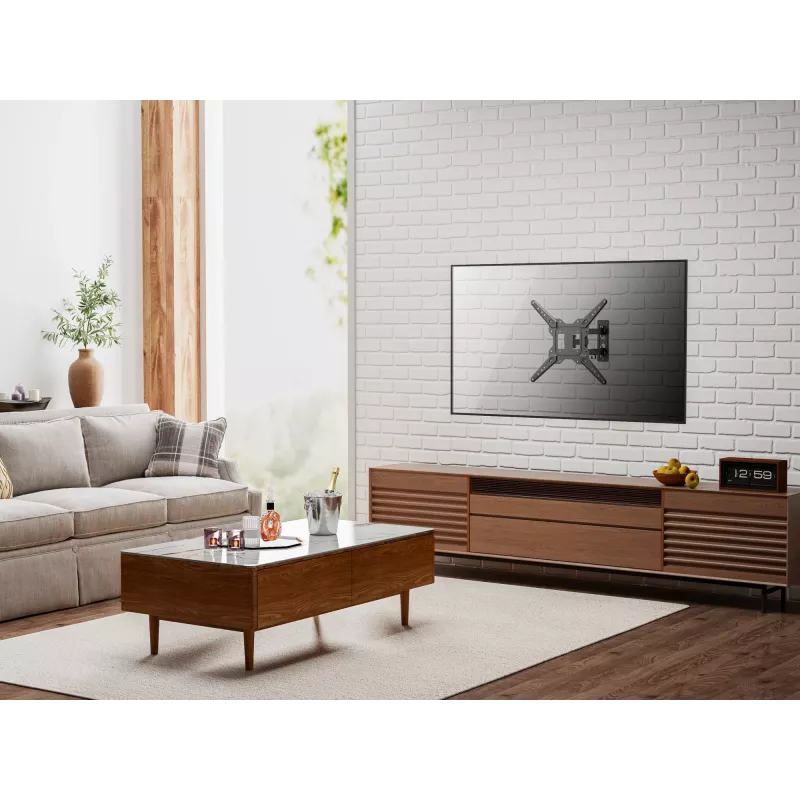

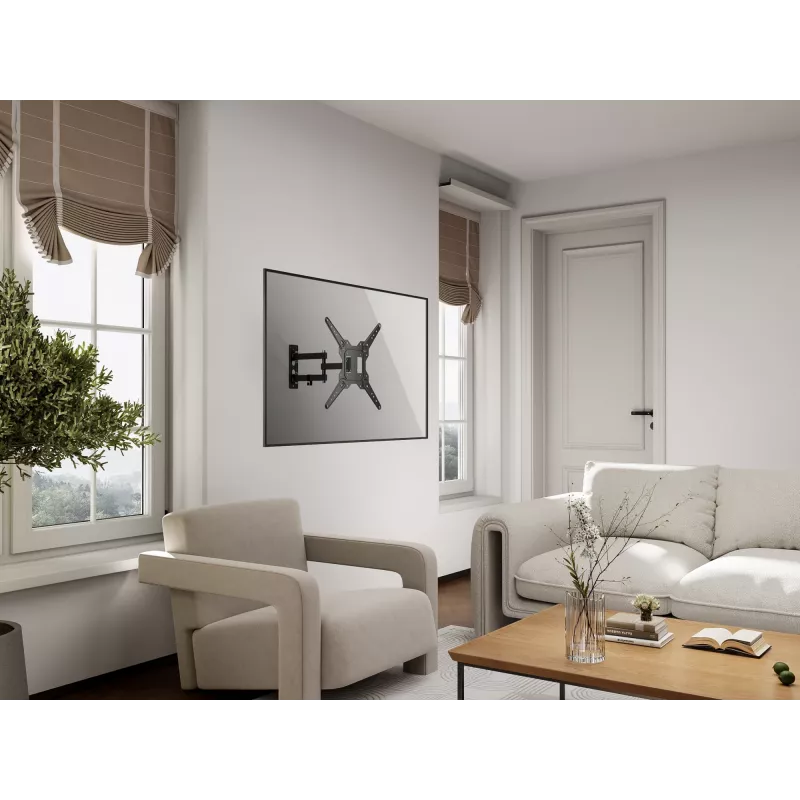

Equip 23 inch-55 inch Full Motion TV Wall Mount Bracket

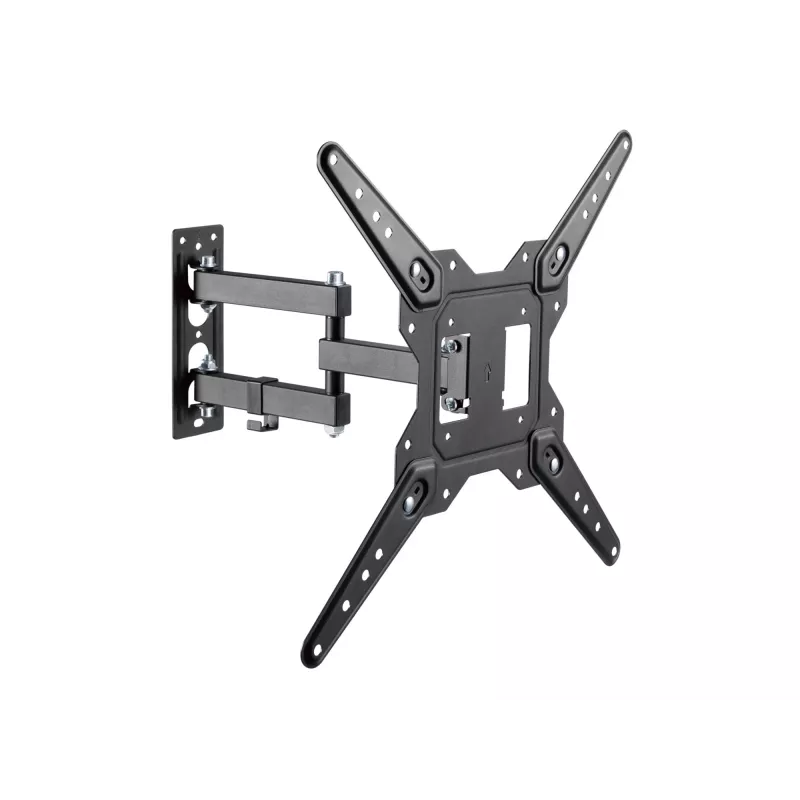

The Equip 650413 23"-55" Full Motion TV Wall Mount Bracket supports flat and curved screens from 23 to 55 inches and holds up to 30 kg. With a low-profile black design and adjustable arm, the mount provides full-motion functionality—tilt, swivel and extension—so you can position the TV for optimal viewing and reduce glare. The bracket fits VESA patterns from 100 x 100 mm up to 400 x 400 mm and adjusts the display distance from the wall between 6 cm and 38.2 cm. All installation hardware and step-by-step instructions are included.

Advantages

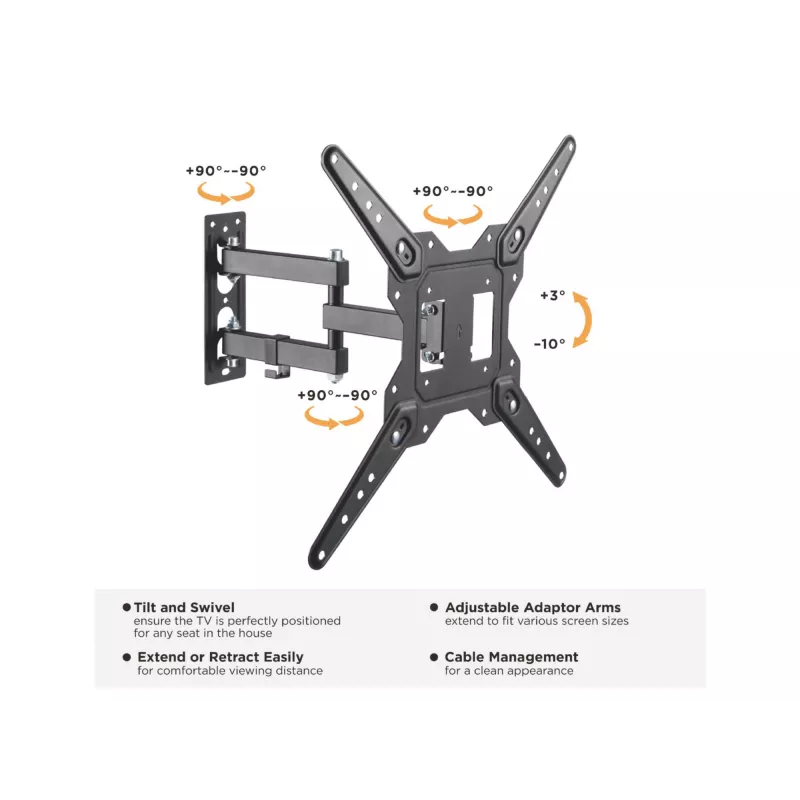

The mount offers a wide swivel range (-90° to 90°), a modest tilt range (-10° to 3°) and smooth extension for flexible positioning. Its compatibility with common VESA standards and a 30 kg load capacity makes it suitable for most 23"–55" TVs. The slim black finish keeps the TV close to the wall when retracted while the articulated arm enables extended viewing angles.

Suitable for (tasks / use cases)

• Wall-mounting a single 23"–55" TV in living rooms, bedrooms or offices
• Adjusting viewing angle to reduce glare and improve sightlines
• Mounting TVs that use VESA patterns from 100 x 100 mm to 400 x 400 mm
• Situations requiring occasional extension and swivel for group viewing

Key specifications

• Brand: EQUIP
• Model / MPN: 650413
• Supported screen size: 23"–55"
• Maximum weight capacity: 30 kg
• Product weight: 2.05 kg

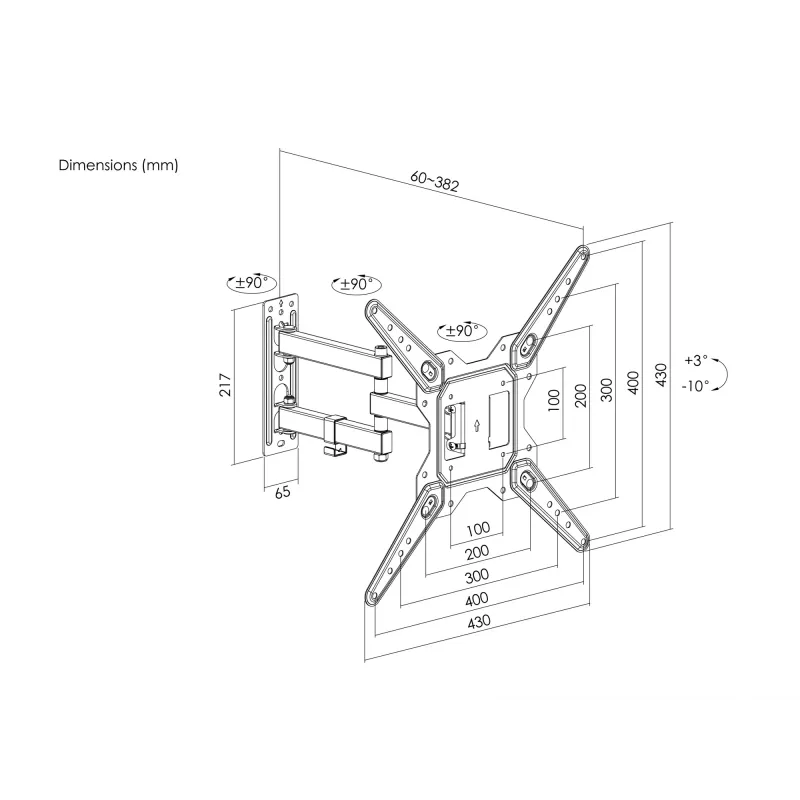

• VESA compatibility: 100 x 100 mm up to 400 x 400 mm
• Tilt range: -10° to 3°
• Swivel range: -90° to 90°
• Distance from wall: 6 cm to 38.2 cm
• Colour: Black

How to use

Choose a suitable wall location that can support the combined weight of the TV and mount. Attach the wall plate to solid wall anchors or studs following the included instructions, then fix the mounting arms to the TV using the appropriate VESA holes. Hang the TV on the wall plate, secure all fasteners and adjust tilt, swivel and extension until the desired viewing angle is achieved. Verify all bolts are tightened and cable routing is tidy before final use.

Recommendations

Ensure the wall structure and fixings are rated for the TV’s weight (including any accessories). Do not exceed the 30 kg maximum load. Periodically check mounting bolts and connections for stability, and follow manufacturer instructions for safe installation.
