Ceiling mount dual back-to-back for 43 inch–86 inch screens EQUIP, tilt -20–5°, swivel ±180°, VESA 200x200–600x400, max load 100 kg, black

The EQUIP ceiling mount dual back-to-back is designed for two large screens sized 43"–86" (109.2 cm–2.18 m). Finished in black, the mount supports VESA patterns from 200×200 up to 600×400 and a maximum combined load of 100 kg. The installation provides back-to-back mounting for dual-sided viewing and includes adjustable tilt from -20° to 5°, full swivel of ±180° and an extendable reach from 109 to 169 cm from the ceiling. Built from high-strength materials, the mount is intended for commercial and public environments where reliable, stable display installation is required.

Advantages

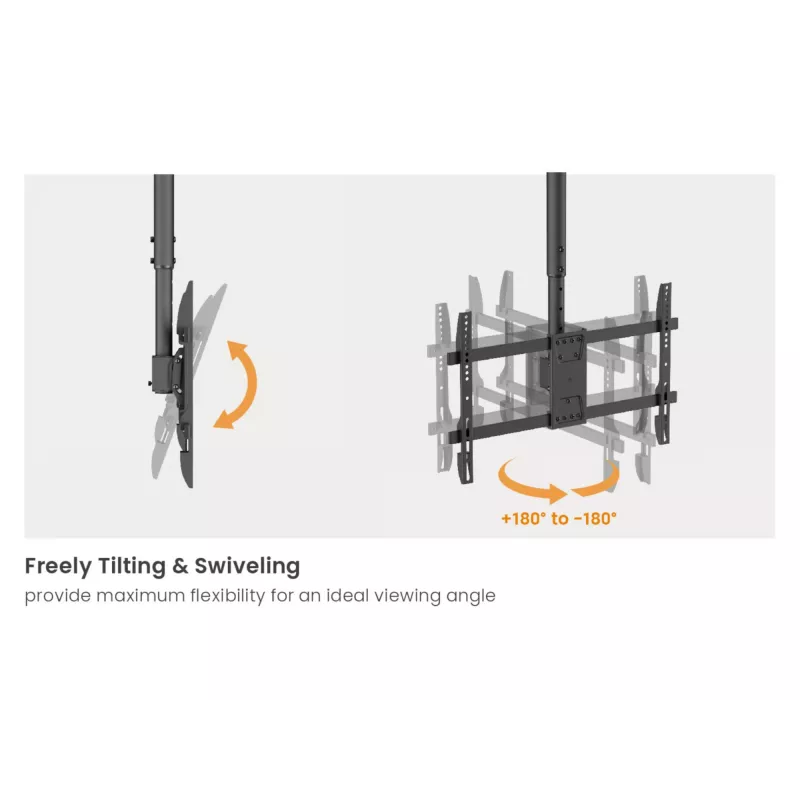

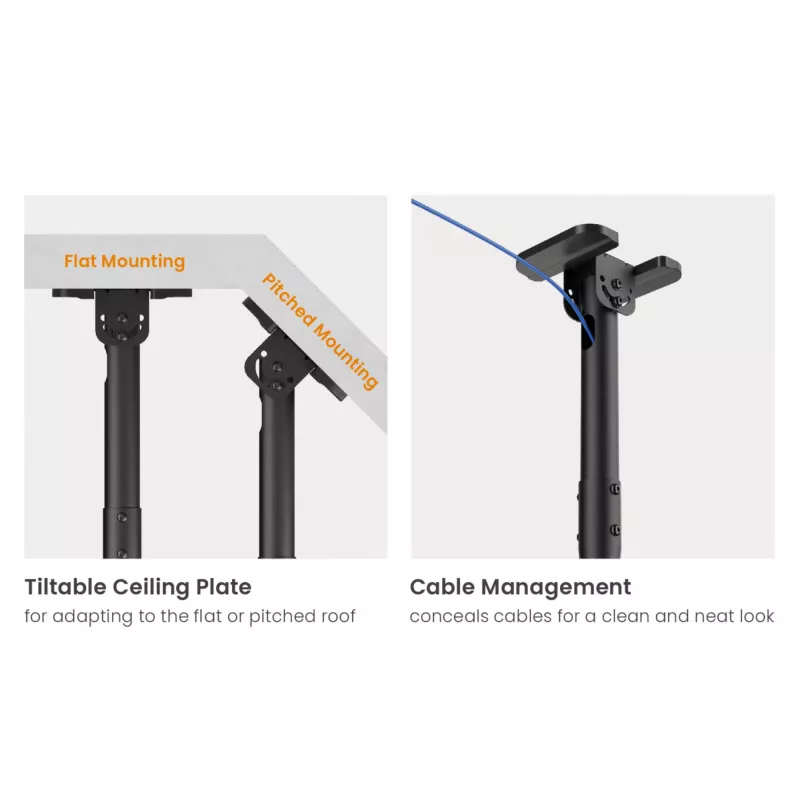

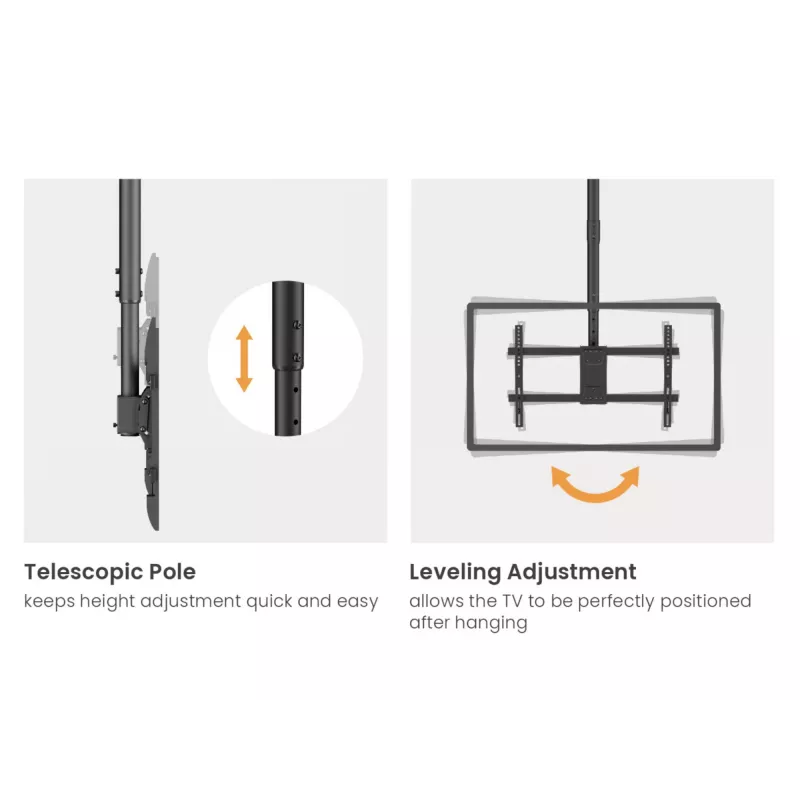

The design allows dual-sided visibility, making it suitable for spaces where viewers approach from opposite directions. Adjustable tilt and wide swivel range enable precise positioning of each display to reduce glare and improve sightlines. The telescopic ceiling pole offers flexible extension from 109 to 169 cm to achieve the required viewing height. Integrated cable routing keeps wiring concealed for a neat appearance. Compatibility with a broad range of VESA standards and a high maximum load ensure secure attachment of large-format displays.

Suitable for

• Airports, train stations and transit hubs for passenger information displays
• Shopping centres and retail spaces for promotional signage

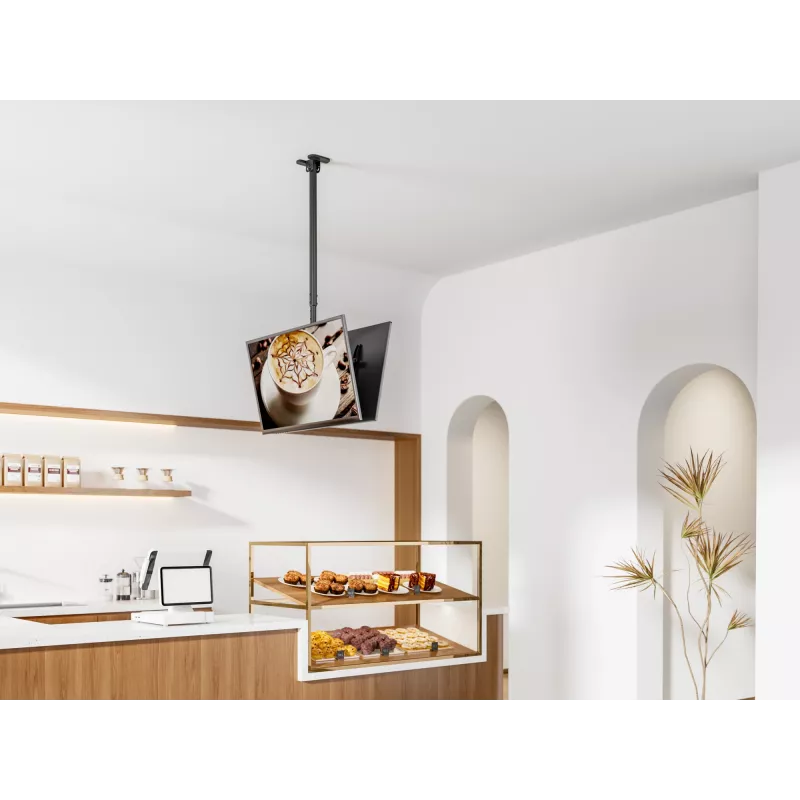

• Restaurant and hospitality areas for menu boards and dual-view screens
• Conference halls, lobbies and exhibition spaces requiring multi-directional viewing

Key specifications

• Screen size compatibility: 43"–86" (109.2 cm–2.18 m)
• VESA compatibility: 200×200 up to 600×400
• Maximum load capacity: 100 kg (combined)
• Tilt range: -20° to 5°
• Swivel: ±180°
• Extension from ceiling: 109–169 cm
• Mounting orientation: back-to-back dual displays
• Finish: black

How to use

Position the ceiling mount at a structurally rated ceiling point and secure the ceiling plate following the included installation instructions and local building codes. Attach the two display brackets to the screens using the appropriate VESA holes within the supported range, then lift and fix each display to the back-to-back mounting arms. Adjust the telescopic pole to the desired extension (109–169 cm) and set the tilt (-20° to 5°) and swivel (±180°) for optimal viewing. Route power and signal cables through the integrated cable management channel to conceal wiring and complete electrical connections according to manufacturer and safety guidelines.

Recommendations

Ensure the ceiling structure can support the combined static load of the mount and both displays (up to 100 kg). Use appropriate fixings for the ceiling material and, if unsure, consult a structural engineer or professional installer. When adjusting tilt and swivel, confirm all fasteners are tightened to prevent movement. For safety and optimal performance, follow the display manufacturer’s mounting instructions and observe local electrical and fire safety regulations.
