Equip 650328 23 inch-55 inch Full motion Corner TV Wall Mount Bracket

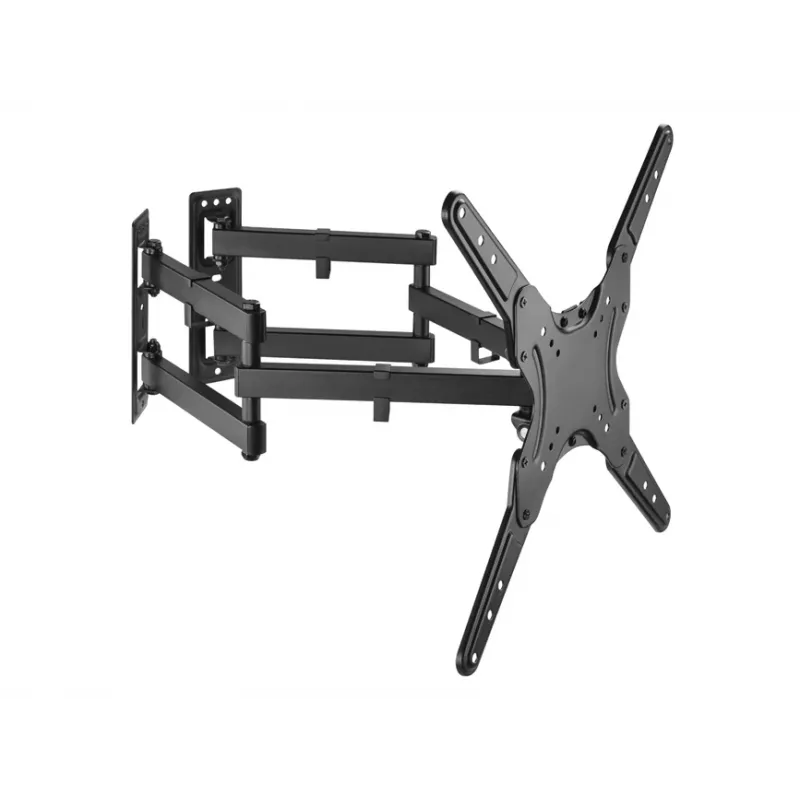

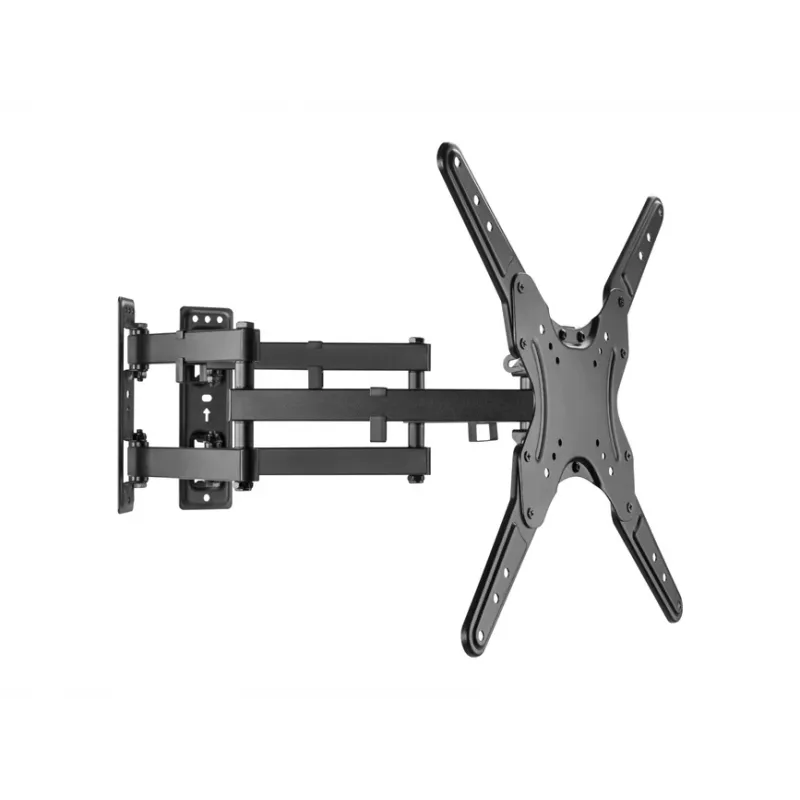

The Equip 650328 Full Motion Corner TV Wall Mount Bracket provides a compact and sturdy solution for mounting LCD and LED screens. Designed for screens from 23" to 55" and a maximum load of 45 kg, this black bracket supports VESA patterns from 200 x 100 mm up to 400 x 400 mm and offers a tilt range of -15° to 2° to help achieve the best viewing angle. The split wall plate design allows installation on angled corner walls as well as on flat walls, and the package includes a graphic installation guide for straightforward single-person fitting.

Advantages

The bracket combines full-motion adjustability with a compact footprint, allowing tilt and articulation while remaining stable and robust. Its compatibility with common wall materials such as brick, concrete and wood increases installation flexibility. The split wall plate saves space on corner installations and can be used on flat walls, providing adaptability to different room layouts.

Suitable for

• Mounting 23"–55" LCD/LED TVs
• Rooms with corner or flat wall installations
• Applications requiring tilt adjustment for optimal viewing
• Setups where VESA 200x100 to 400x400 compatibility is needed

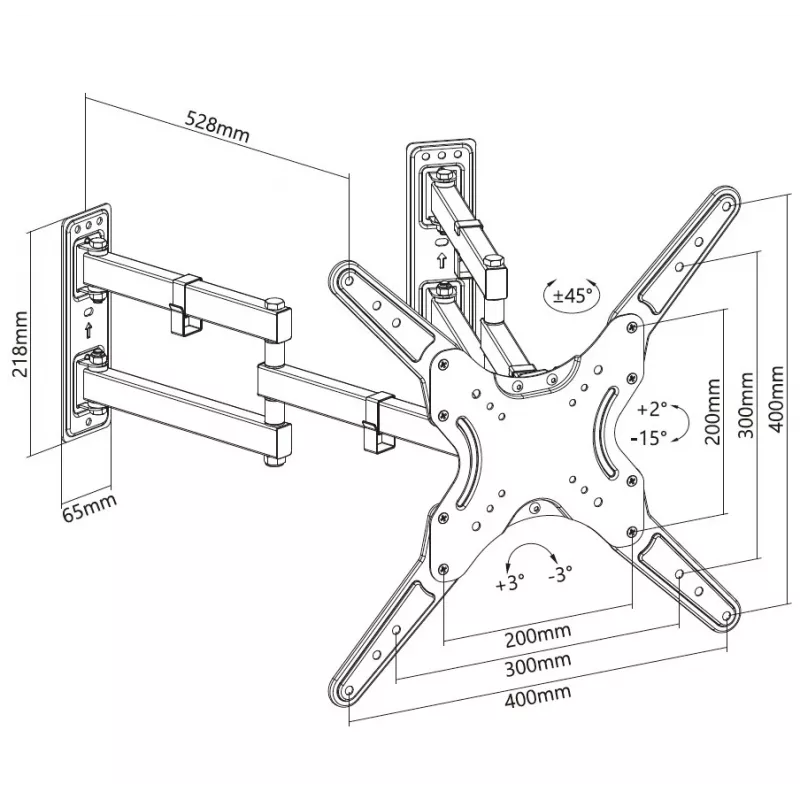

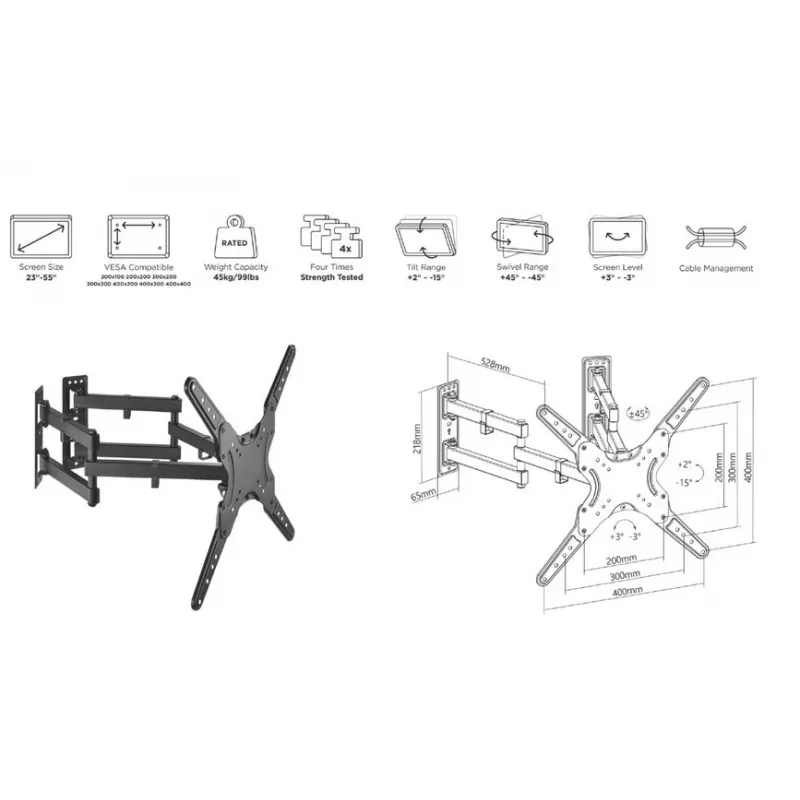

Key specifications

• Maximum screen size: 55"
• Maximum weight capacity: 45 kg
• Supported VESA: up to 400 x 400 mm (minimum 200 x 100 mm)
• Tilt range: -15° to 2°
• Number of displays supported: 1
• Product colour: Black
• Product weight: 4.36 kg

How to use

Follow the included graphic guide to identify the correct mounting points and hardware for your wall material. Secure the split wall plate to the wall using appropriate anchors for brick, concrete or wood, then attach the arm and the VESA plate to the TV. Hang the screen on the mounted assembly, check alignment and tighten all fasteners. Adjust tilt and articulation to set the desired viewing angle.

Recommendations

Ensure the chosen wall and fixings can safely support the combined weight of the bracket and TV (up to 45 kg). Use suitable wall anchors for brick, concrete or wood, and re-check all fittings after installation. If unsure about the wall condition or load-bearing capability, consult a qualified installer.
