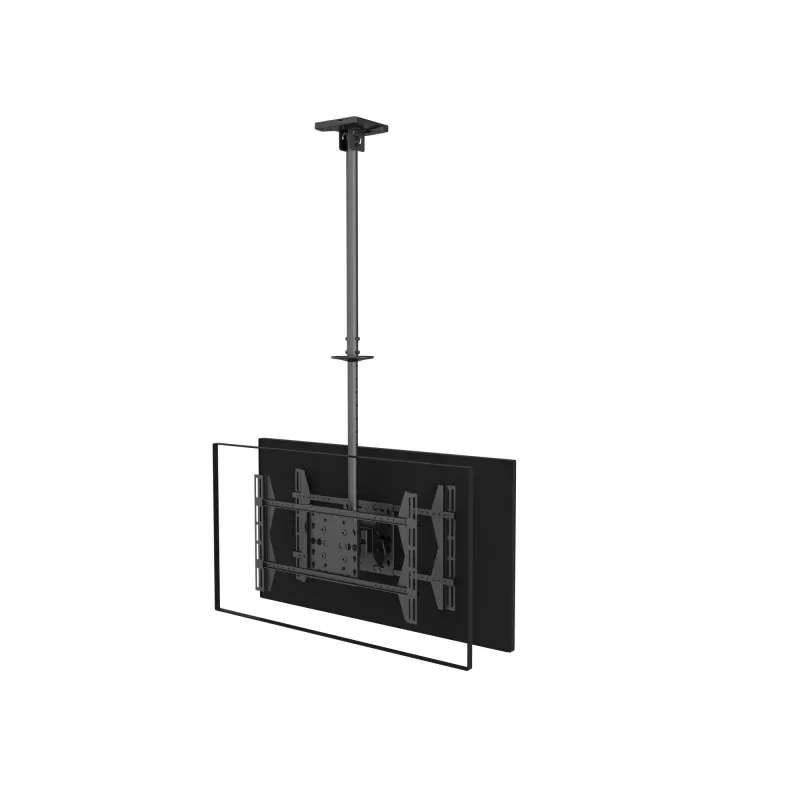

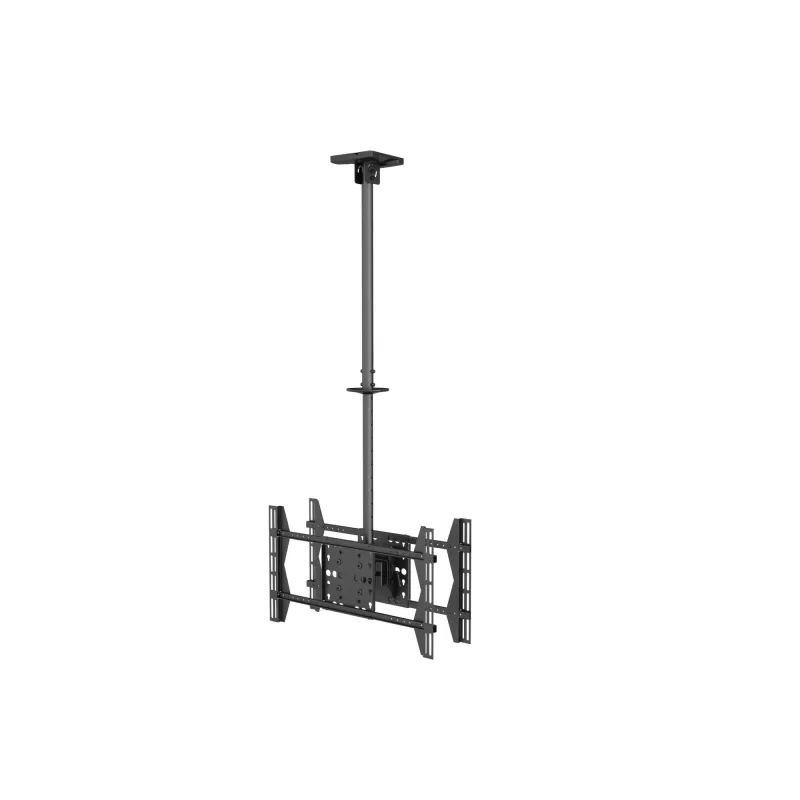

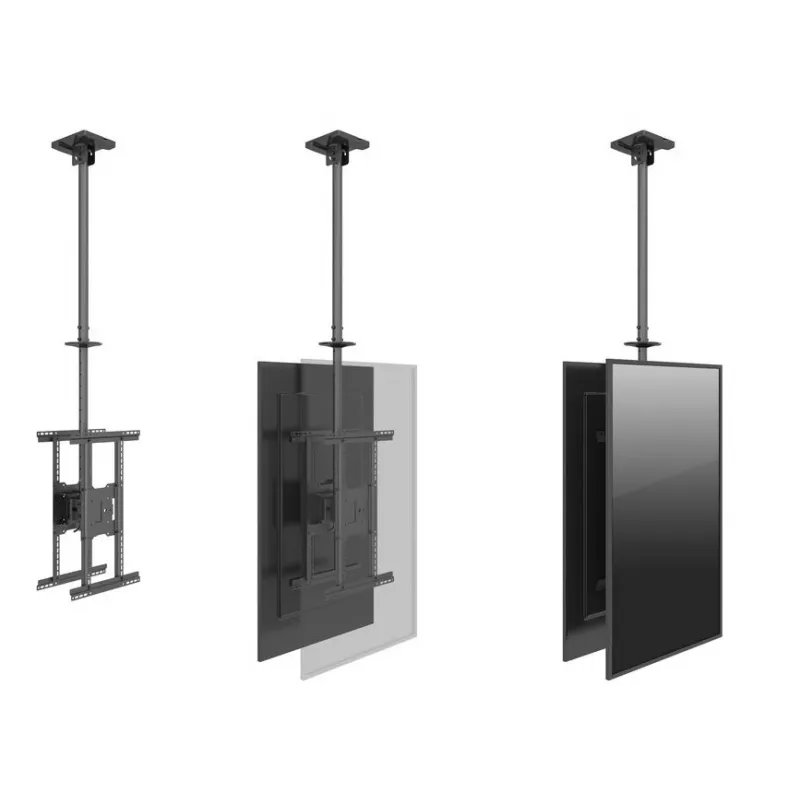

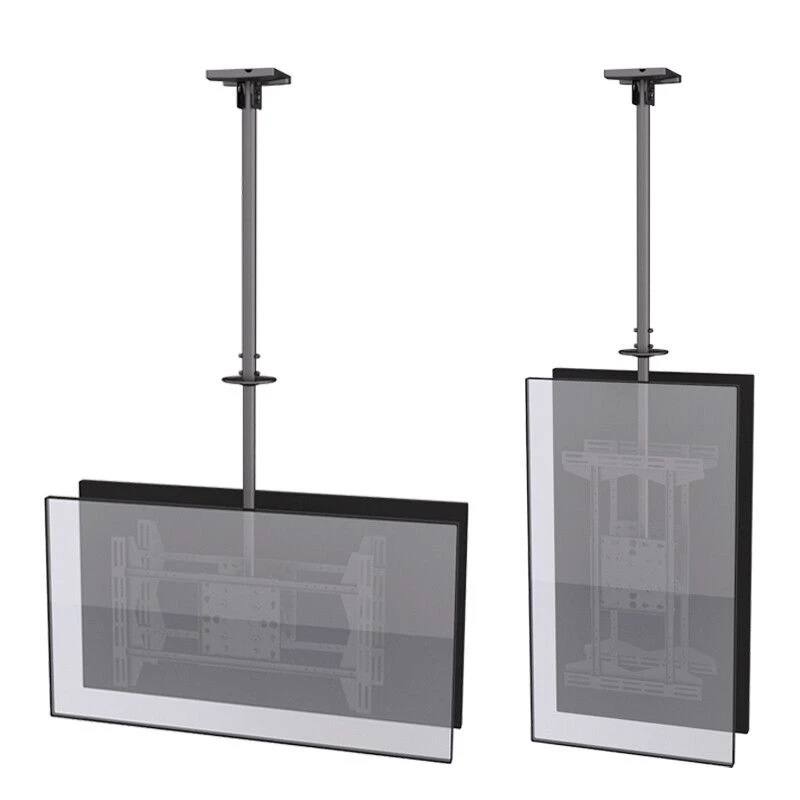

Equip 32 inch-65 inch Ceiling Mount Dual Screen TV Bracket

The Equip Ceiling Mount Dual Screen TV Bracket 650370 is an industrial-grade ceiling mount designed for two screens between 32" and 65". It supports VESA patterns from 100 x 100 mm up to 600 x 400 mm and a combined maximum weight capacity of 80 kg. The mount has an adjustable tilt range to set each screen between -5° and 15°, and its black finish suits commercial signage and professional installations.

Advantages

The dual-screen ceiling mount provides stable, heavy-duty support for two displays and offers fine tilt adjustment for balanced viewing angles. Its compatibility with a wide range of VESA standards and screens up to 65" allows flexible use across different monitor models. The black design and robust construction make it suitable for continuous use in public or professional environments.

Suitable for

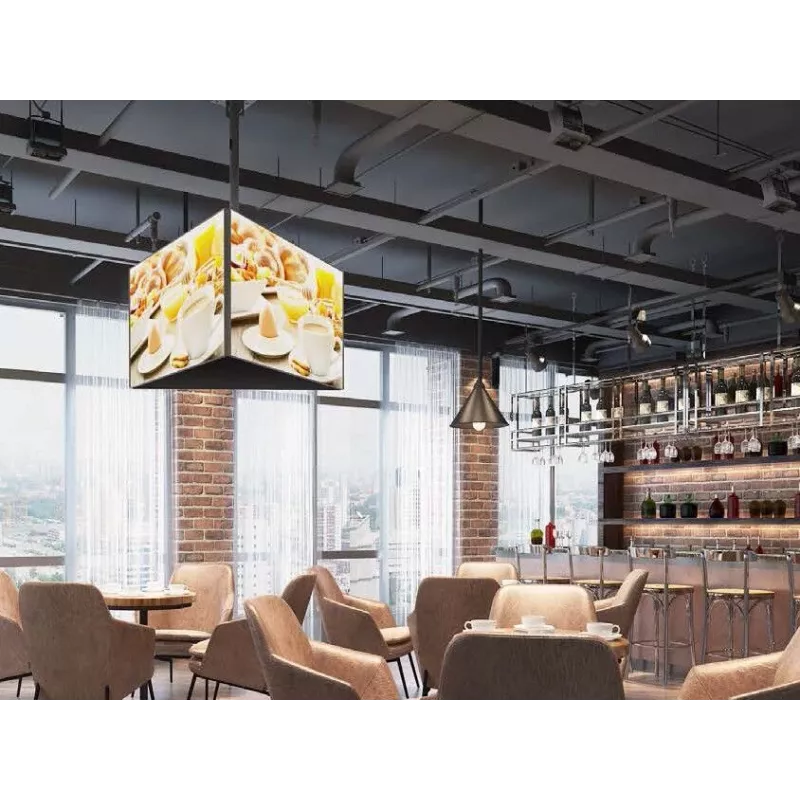

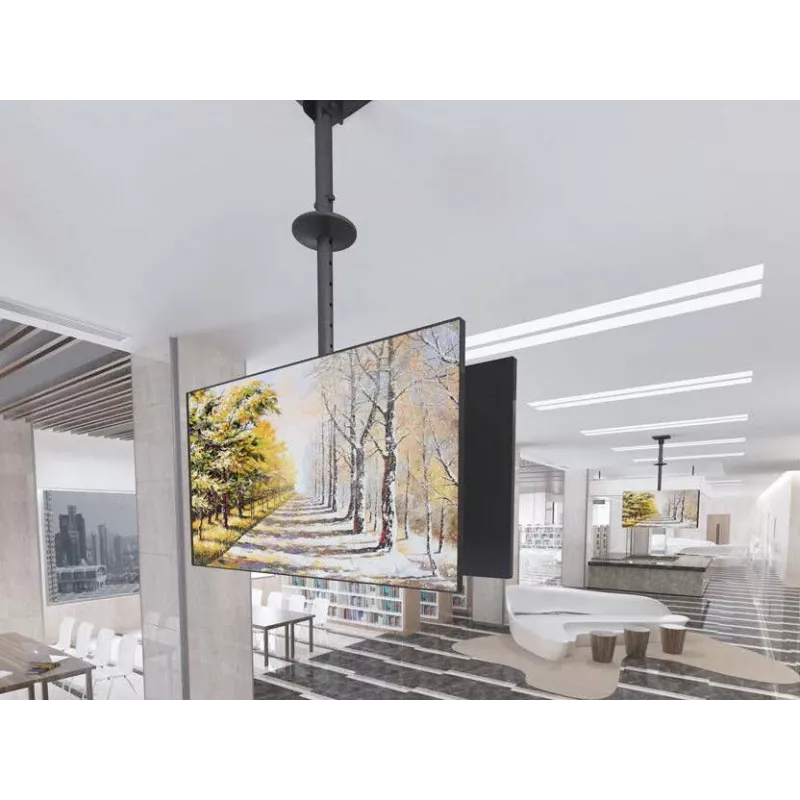

• Digital signage in retail, airports, stations and public areas
• Dual-screen displays in reception areas and waiting rooms
• Commercial and corporate AV installations
• Conference rooms and presentation spaces requiring ceiling-mounted displays

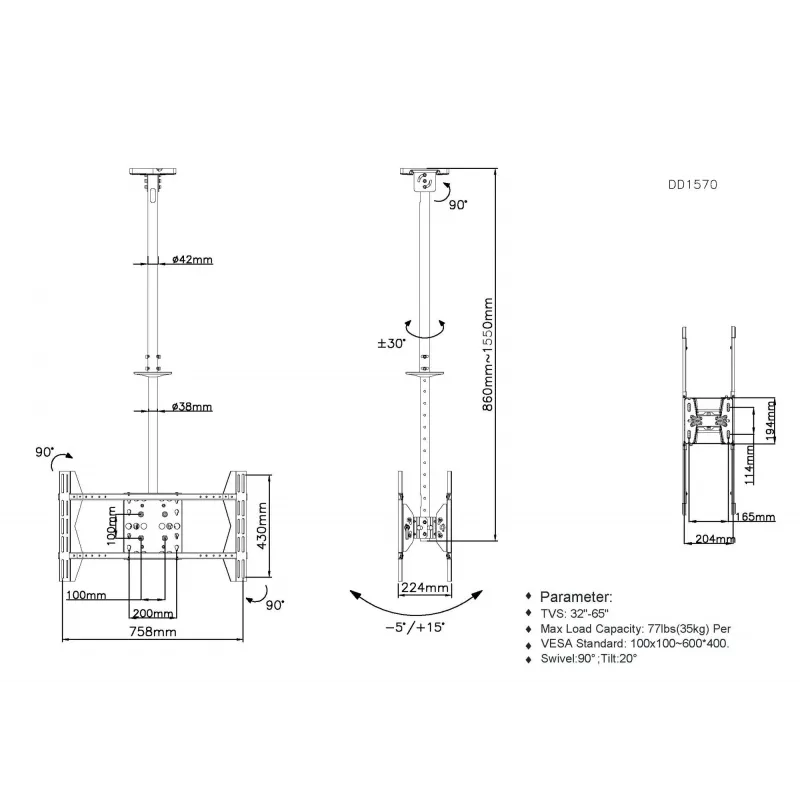

Key specifications

• Supported screen size: 32"–65"
• Maximum weight capacity: 80 kg
• VESA compatibility: up to 600 x 400 mm
• Tilt range: -5° to 15°
• Number of displays: 2
• Product colour: Black
• Product weight: 16 kg

How to use

Mount the bracket to a suitable structural ceiling following local building and safety codes. Attach each display using the compatible VESA mounting holes, ensuring the combined weight does not exceed 80 kg. Adjust the tilt for each screen within the -5° to 15° range to achieve even visibility. Tighten all fasteners and verify stability before leaving the installation unattended.

Recommendations

For reliable long-term performance, have the ceiling fixings and bracket installed by a qualified technician and periodically check all mounts and fasteners for wear or loosening, especially in high-traffic or vibration-prone locations.
