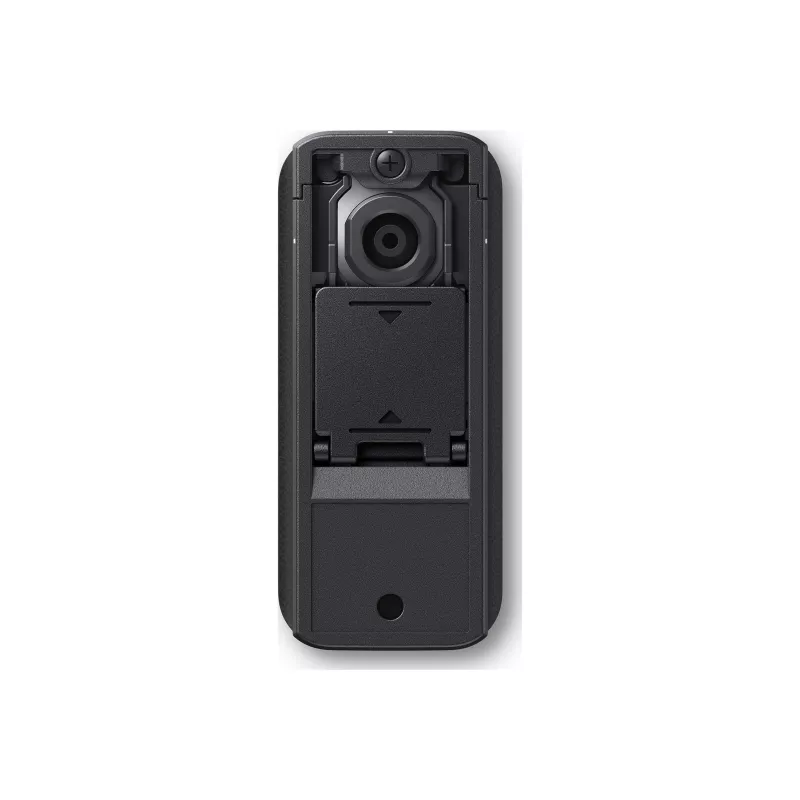

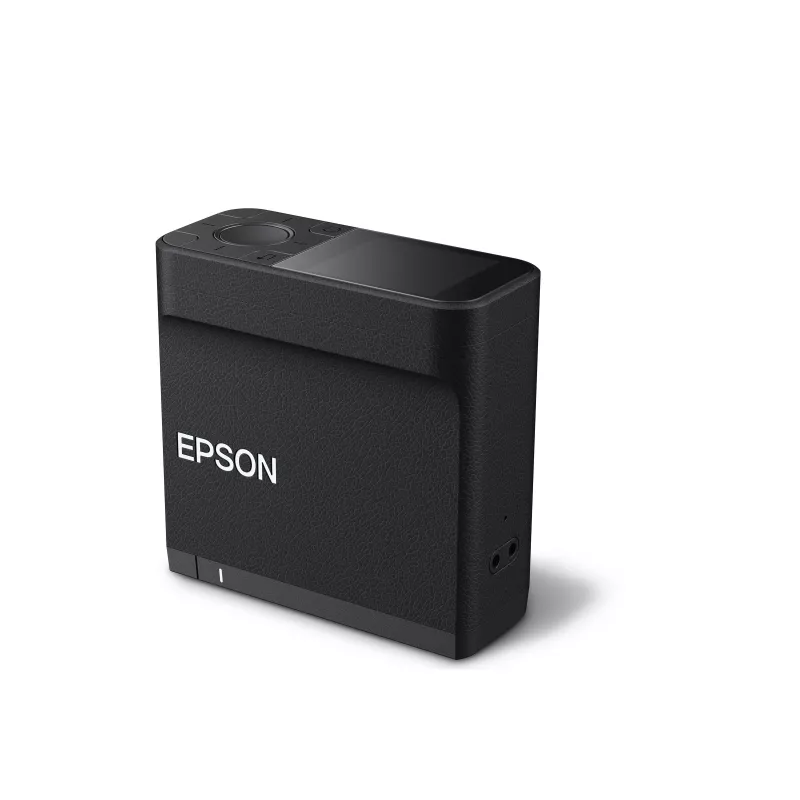

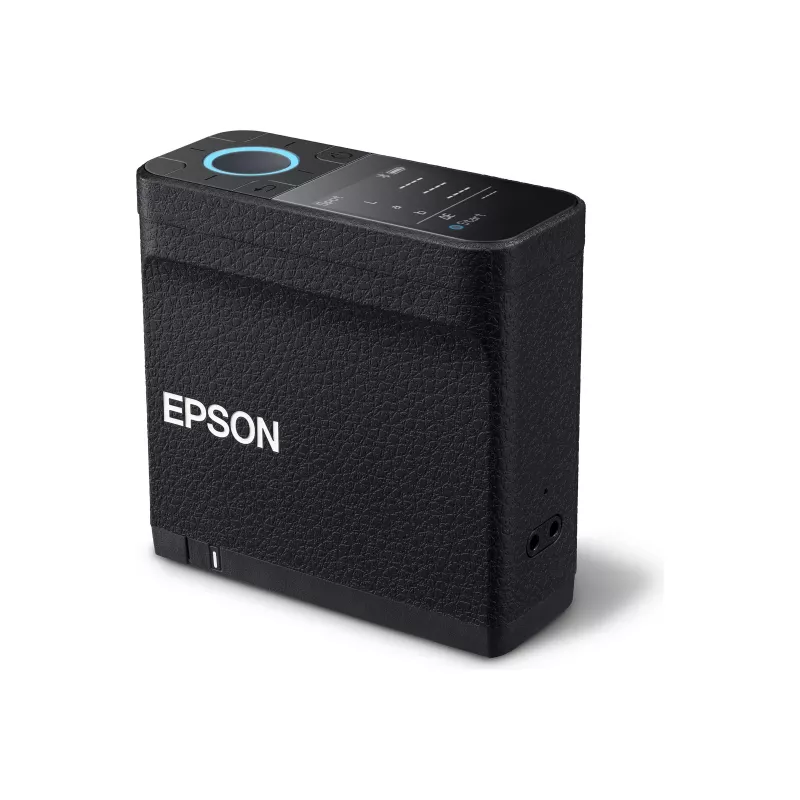

Epson SD-10 (ECSP) Spectrophotometer Black LCD Rechargeable Battery

The Epson SD-10 (ECSP) is a fully equipped, portable spectrophotometer that elevates your color measurement to a new level. Combining accuracy and speed, it delivers the color information you need for critical decisions. This user-friendly device measures colors precisely, consistently, and quickly.

Advantages

High precision with ΔE*ab ≤ 0.05 repeatability; switchable 8 mm / 3 mm aperture for versatile measurement; full-spectrum LED light source with UV-cut and UV-included options; simultaneous SCI/SCE measurement; Bluetooth 5.0 and USB-C connectivity; rechargeable lithium-ion battery for up to 1,000 measurements per charge.

Suitable for

• Color quality control in printing and packaging
• Paint and coating color matching
• Textile and plastic color verification
• Graphic arts and design

Key specifications

• Measurement Geometry: d/8 with simultaneous SCI/SCE
• Light Source: Full-spectrum LED (UV-cut and UV-included)
• Detector: CMOS linear image sensor
• Wavelength Range: 400 - 700 nm
• Wavelength Pitch: 10 nm
• Measurement Aperture: Switchable 8 mm / 3 mm
• Repeatability: ΔE*ab ≤ 0.05
• Inter-Instrument Agreement: ΔE*ab ≤ 0.4
• Display: 1.44-inch Color LCD
• Connectivity: USB-C, Bluetooth 5.0
• Battery: Rechargeable Lithium-ion, ~1,000 measurements per charge
• Calibration: Automatic white and zero calibration
• Supported Color Spaces: L*a*b*, L*C*h, L*u*v*, XYZ, Yxy, RGB, Hunter Lab
• Supported Illuminants: D65, A, C, D50, D75, F2, F7, F11, F12
• Observer Angles: 2° and 10°
• Internal Memory: Up to 1,000 measurements
• Software Compatibility: Epson SpectroProof (PC), Epson Spectro (Mobile App)
• Color: Black

Recommendations

For professional color management, the Epson SD-10 offers lab-grade accuracy in a portable form factor. Ideal for on-site measurements and integration with Epson's color workflow software.
