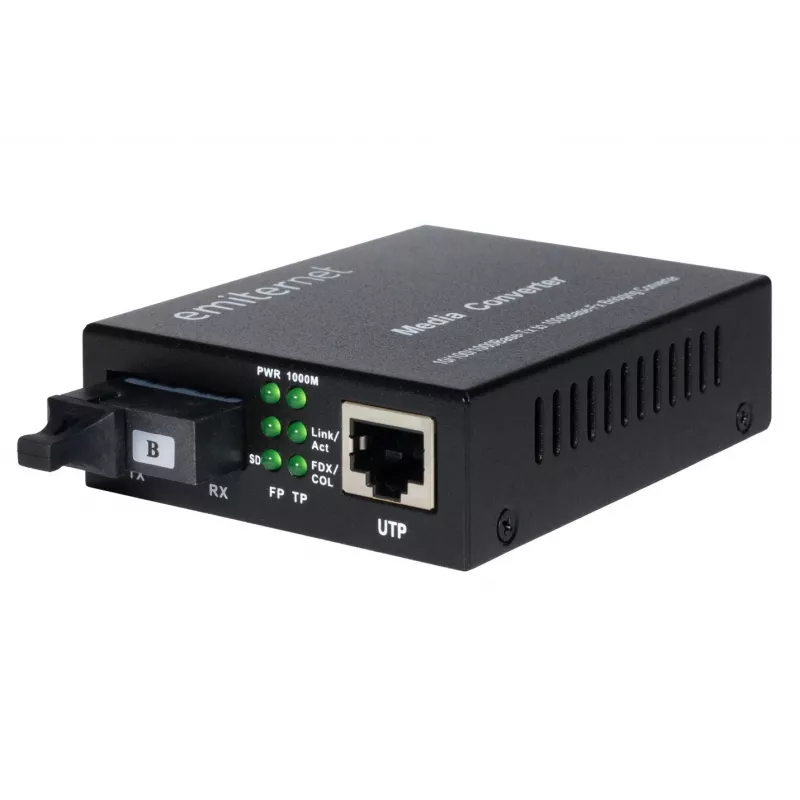

EMITER EM/1GB-ETH-1XSC-1310 WDM Ethernet Converter 10/100/1000 Mbps RJ45/1xSC SM 9/125 (Tx 1310nm / Rx 1550nm) 20km

The EMITER EM/1GB-ETH-1XSC-1310 is a high-performance WDM Ethernet media converter designed to extend Gigabit Ethernet connections over single-mode fiber optic cable. It converts 10/100/1000Base-T copper signals to 1000Base-LX fiber signals using WDM technology, allowing bidirectional communication over a single fiber strand. With a transmission distance of up to 20 km, it is ideal for long-distance network links in enterprise, campus, and service provider environments.

Advantages

This converter simplifies network infrastructure by reducing fiber cabling requirements through WDM technology. It supports auto MDI/MDI-X for easy integration, and its compact standalone design allows flexible placement. The external DC adapter ensures reliable power delivery, and LED indicators provide clear status monitoring.

Suitable for

• Extending Ethernet networks over long distances up to 20 km
• Connecting remote offices, campuses, or industrial sites
• Integrating copper and fiber segments in enterprise networks
• Applications requiring single-fiber bidirectional communication

Key specifications

• Product Type: WDM Ethernet Media Converter
• Ethernet Speed: 10/100/1000 Mbps (Gigabit Ethernet)
• Copper Port: 1 x RJ45
• Fiber Port: 1 x SC
• Fiber Type: Single Mode (SM) 9/125 µm
• WDM Transmit Wavelength (Tx): 1310 nm
• WDM Receive Wavelength (Rx): 1550 nm
• Max Transmission Distance: 20 km
• Auto MDI/MDI-X: Yes
• Duplex Mode (RJ45): Full-Duplex / Half-Duplex
• LED Indicators: Power, Link/Act (RJ45), Link/Act (Fiber)
• Power Supply: External DC Adapter

Recommendations

For optimal performance, use with single-mode fiber patch cables (9/125 µm) and ensure proper wavelength matching at both ends. This converter is plug-and-play and requires no configuration.
