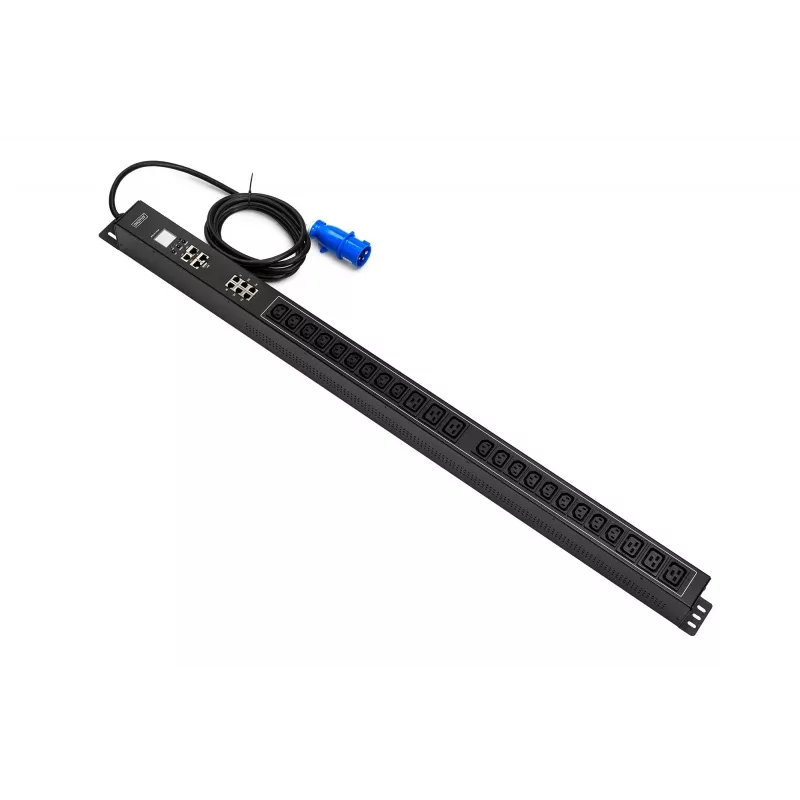

APC 0U SMART PDU, IEC 60309 16A/250V Plug, 18xC13 10A/250V Sockets, 6xC19 16A/250V, 16A

The APC 0U SMART PDU is a high-performance Smart Power Distribution Unit designed for data centers and network cabinets. It features an IEC 60309 16A/250V input plug and provides 18 C13 outlets (10A/250V) and 6 C19 outlets (16A/250V) for comprehensive power distribution. With remote monitoring and individual outlet switching, this PDU enhances power management and efficiency.

Advantages

Remote power monitoring via Ethernet (SNMP, HTTP/HTTPS, SSH, Telnet) allows real-time tracking of current, voltage, power, and energy. Individual outlet switching enables reboot and control of connected devices, reducing downtime. The 0U vertical form factor saves rack space, and the integrated circuit breaker ensures overload protection.

Suitable for

• Data centers requiring intelligent power distribution
• Network cabinets with high-density equipment
• IT environments needing remote power management

Key specifications

• PDU Type: Smart PDU
• Form Factor: 0U Vertical Rackmount
• Input Connector: IEC 60309 16A (2P+E, Blue)
• Input Voltage: 200-250V AC
• Input Current: 16A
• Number of C13 Outlets: 18 (10A/250V each)
• Number of C19 Outlets: 6 (16A/250V each)
• Total Output Current: 16A
• Phase: Single-Phase
• Management Interface: Ethernet (RJ-45)
• Management Protocols: SNMP, HTTP/HTTPS, SSH, Telnet
• Outlet Control: Individual Switching & Rebooting
• Overload Protection: Integrated Circuit Breaker
• Local Display: LCD/LED Display
• Enclosure Material: Metal

Recommendations

For optimal performance, ensure the PDU is installed in a well-ventilated area and connected to a dedicated 16A circuit. Use the remote management features to monitor power usage and prevent overloads.
