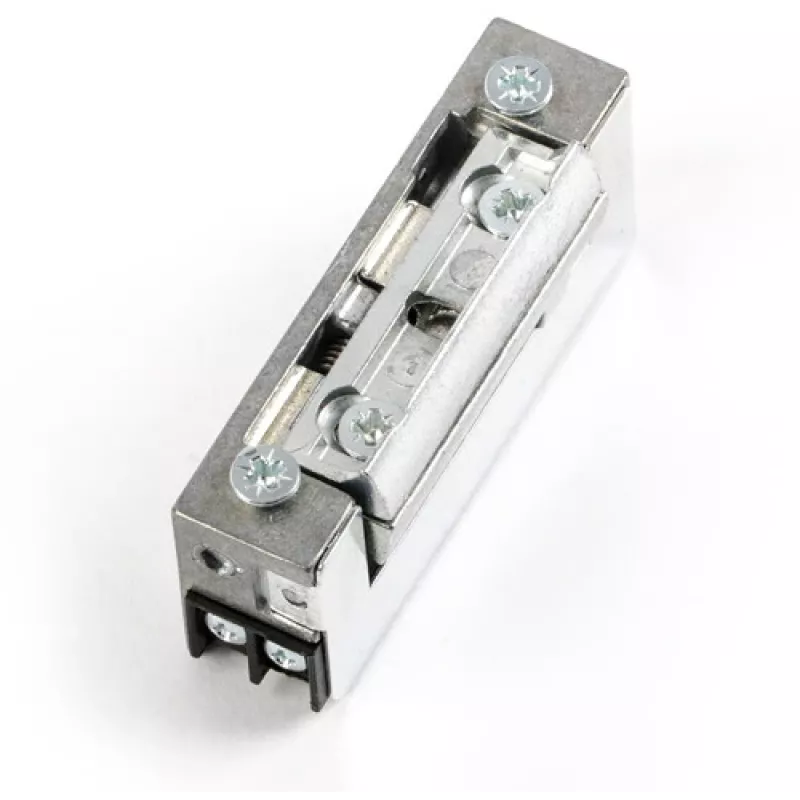

ELEKTRA-PLUS R5 Electric Strike 12V DC - Fail-Safe Reversible

The ELEKTRA-PLUS R5 Electric Strike is a high-quality, fail-safe door opener designed for access control systems, intercoms, and security doors. Operating at 12V DC with a holding force of 3000 N, it ensures reliable performance for wooden, metal, and PVC doors. Its universal handing and radial latch adjustment make installation flexible for left or right doors.

Advantages

Fail-safe operation (normally open) ensures door unlocks when power is removed, enhancing security. With 200,000 cycles durability and CE certification, this electric strike offers long-lasting, dependable use. The recessed flush mount design provides a clean, professional finish.

Suitable for

• Access control systems
• Intercoms and security doors
• Wooden, metal, and PVC doors

Key specifications

• Product Type: Electric Strike
• Operating Mode: Fail-Safe (Normally Open - NO)
• Voltage: 12V DC
• Current Consumption: 250 mA
• Holding Force: 3000 N (approx. 300 kg)
• Durability: 200,000 cycles
• Body Material: Zinc Alloy
• Installation Type: Recessed (Flush Mount)
• Handing: Universal (Left/Right Door)
• Latch Adjustment: Yes (Radial)
• Operating Temperature: -10°C to +50°C
• Release Mechanism: Electrical Impulse
• Mounting Orientation: Vertical or Horizontal
• Certifications: CE

Recommendations

For optimal performance, use with a compatible power supply and faceplate (sold separately). Ensure proper wiring and follow installation guidelines for your door type.
