Electronic Meter APC AP7152B Plug-in Power Current 16A 220-250V

Features

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released.

Local and web-based monitoring
Status available to customers both in the data center and remotely

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Multiple mounting methods
Allows for standardization on one product for use in different environments.

Network management
Provides proactive power and environmental management via web and/or SNMP

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Agility

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Availability

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

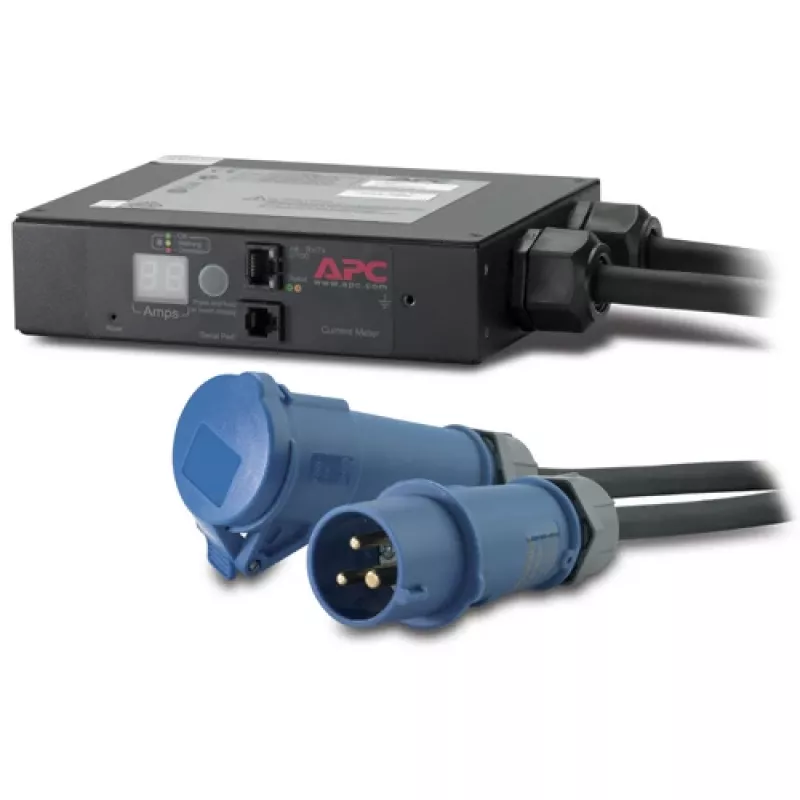

APC In-Line Current Meter, 16A, 230V, IEC309-16A, 2P+G. Type: Electronic, Application: Plug-in, Measuring functions: Power current. Input voltage: 220 - 250 V, Rated current: 16 A. Width: 178 mm, Depth: 140 mm, Height: 44 mm

How to use

Plug the AP7152B into an appropriate 220–250V outlet or branch whip connection and connect the equipment to be monitored to the meter’s output as designed. Read the local digital display to monitor aggregate current draw. If the unit is part of a networked APC solution and the SKU supports network features, configure remote access and alarm thresholds through the APC management interface (Web, SNMP, or Telnet) following the product installation guide.

Recommendations

Use the AP7152B within its rated voltage and current limits (220–250 V, 16 A). For alarm thresholds, flash upgrades, and remote management features, verify that your specific SKU supports these functions and follow APC’s instructions for firmware updates and network configuration. Avoid exceeding the rated amperage to prevent overload conditions.
