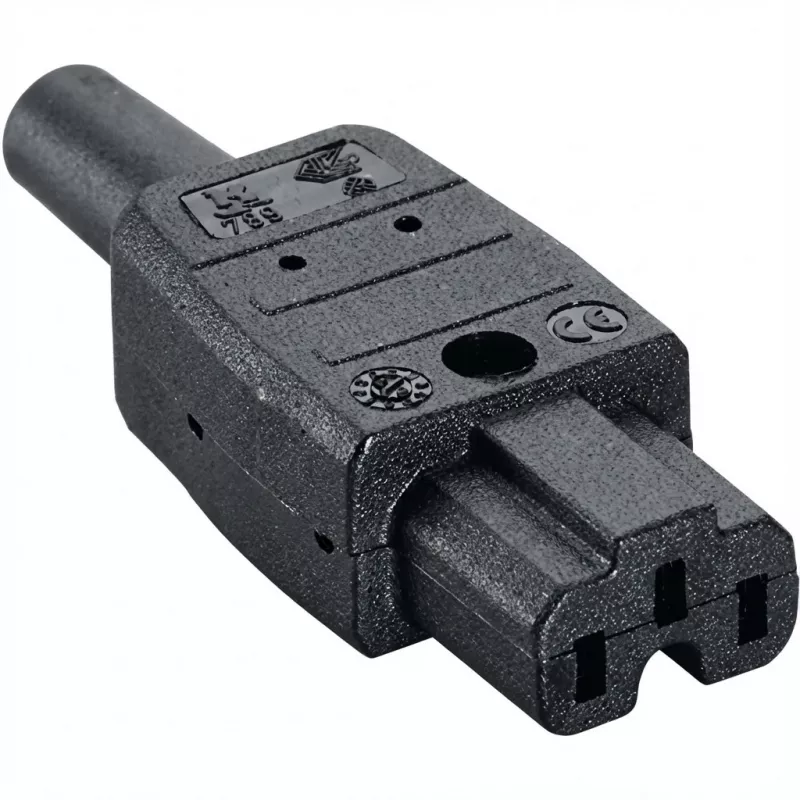

Electrical socket coupler Bachmann 916.170

Connector for cables up to 3G 1.00 mm2, thermoplastic body with earthing contact. Designed for cable mounting with a C15A rating, providing a compact and reliable connection for compatible equipment. Includes screw terminal, kink protection nozzle and integrated strain relief to secure the cable.

Advantages

The thermoplastic construction with earthing contact ensures safe grounding. C15A rating allows use in applicable installations. Screw terminal simplifies wiring while the kink protection nozzle and strain relief protect conductors from damage and reduce mechanical stress at the entry point.

Key specifications

• Suitable for cables up to: 3G 1.00 mm²
• Material: thermoplastic body
• Earthing contact: included
• Rating: C15A (cable mounting)
• Termination: screw terminal
• Cable protection: kink protection nozzle and strain relief

How to use

Strip the cable to the appropriate length, insert conductors into the screw terminal and tighten screws securely. Fit the kink protection nozzle around the cable and assemble the housing so the strain relief grips the sheath. Verify earth contact is connected and ensure the connector is mounted according to the device or installation requirements.

Recommendations

Use with cables up to 3G 1.00 mm² only. Check compatibility with the equipment and comply with local electrical regulations when mounting. Periodically inspect the screw terminals and strain relief for tightness and wear.
