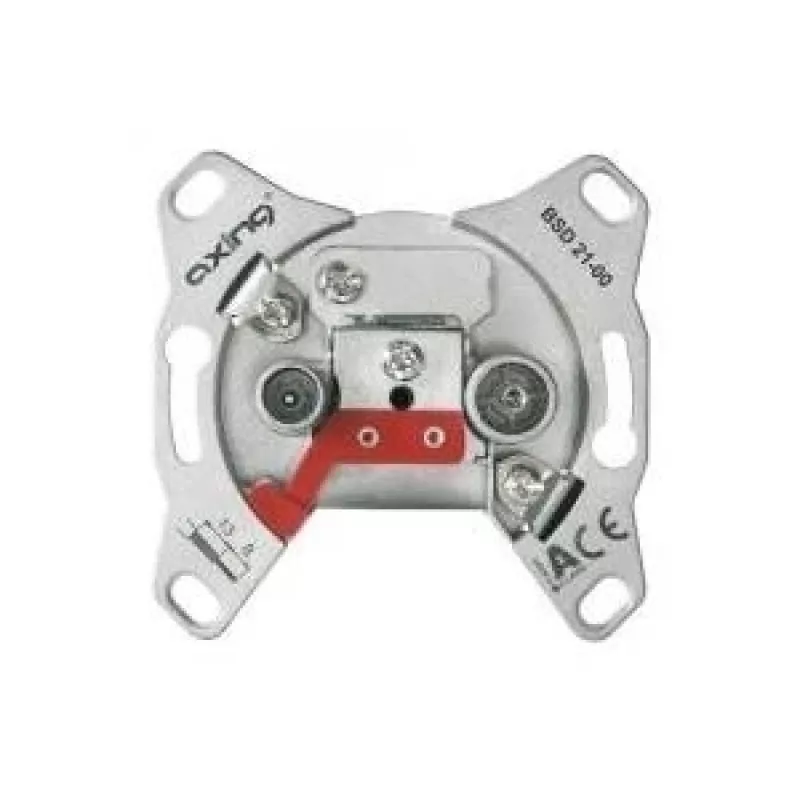

Coaxial Socket Outlet Axing BSD02100 Grey

The Axing BSD02100 Grey is a compact coaxial socket outlet designed for reliable signal transmission in residential and commercial installations. Measuring 68 x 35 x 68 mm, this terminal type outlet supports a return path of 5–65 MHz via the TV connector and has a surface-treated finish for durability. Supplied by Axing and certified with CE, it provides a standardised interface for TV and RF connections.

Advantages

The coaxial socket is easy to install and features standard stripping lengths of 8/13 mm to simplify cable preparation. Its compact dimensions make it suitable for use in confined spaces, while the treated surface improves resistance to wear. Certification (CE) confirms conformity with applicable safety and quality requirements.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping to the specified lengths (8 mm for the dielectric and 13 mm total as required), insert and terminate the conductor into the socket according to standard coaxial wiring practice, and mount the outlet in the wall box or panel. Ensure the return path requirement (5–65 MHz) is met for connected equipment and verify good mechanical and electrical contact after tightening.

Recommendations

Use standard coaxial connectors and follow local installation regulations. For optimal performance, avoid excessive bending near the termination and verify continuity and signal levels after installation.
