Socket outlet Type F Axing SSD00507

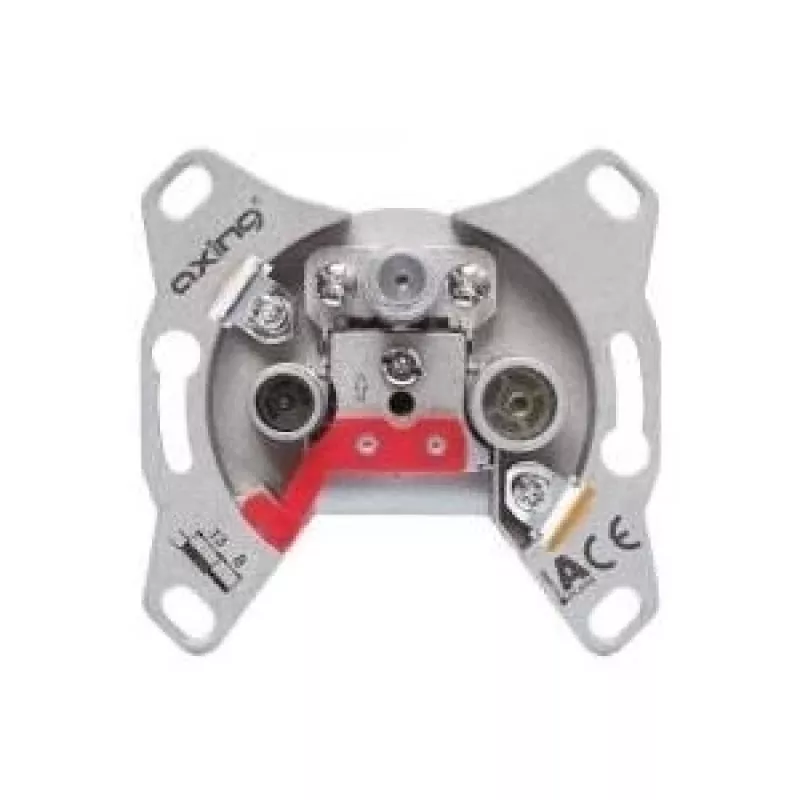

The Axing SSD00507 is a Type F socket outlet designed for satellite and terrestrial signal distribution. It features a 7 dB tap loss, supports return path frequencies from 5 to 65 MHz, and is compatible with Unicable I (EN50494) and Unicable II (EN50607) systems. The outlet comes in grey, has extended F sockets and a surface-threaded finish, and is compactly sized at 68 × 39 × 68 mm.

Advantages

The socket offers a defined 7 dB tap loss for predictable signal attenuation, compatibility with both Unicable I and Unicable II standards, and support for return path operation in the 5–65 MHz range. Its extended F sockets simplify cable connection, and the specified stripping length (8/13 mm) ensures consistent installation results. The CE certification confirms conformity with applicable safety directives.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping to the specified lengths (8 mm for dielectric, 13 mm overall as applicable) and connect to the extended F sockets ensuring secure threading. Mount the outlet in the desired surface location, taking care to maintain correct polarity and grounding according to local regulations and the rest of the multiswitch or distribution system. Verify compatibility with the Unicable system in use and route the return path cabling to support 5–65 MHz signals.

Recommendations

For reliable performance, use quality coaxial cable and connectors, follow the specified stripping lengths, and confirm Unicable compatibility before installation. Observe local electrical and RF installation standards and perform signal-level tests after fitting.
