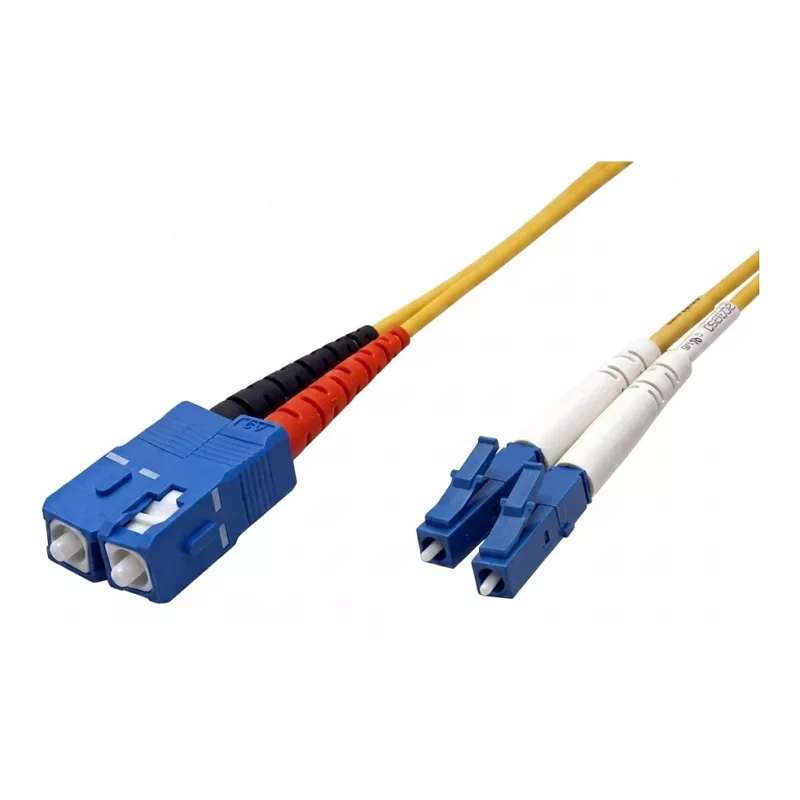

EFB Elektronik Duplex Jumper LC-SC OS2 Singlemode 9/125µm 5m LSZH Yellow 2.0mm

The EFB Elektronik O0360.5 is a high-quality duplex fiber optic patch cable designed for reliable singlemode connections in data centers, telecommunications, LAN, SAN, and FTTx applications. With LC to SC connectors, OS2 grade, and a 5-meter length, this jumper ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable offers excellent performance with insertion loss ≤0.3 dB and return loss ≥50 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The yellow jacket color ensures easy identification for singlemode cables.

Suitable for

• Data center interconnects
• Telecommunications networks
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber to the x (FTTx) deployments

Key specifications

• Connector A: LC Duplex
• Connector B: SC Duplex
• Fiber Mode: Singlemode
• Fiber Category: OS2
• Core/Cladding Diameter: 9/125 µm
• Cable Length: 5 m
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Connector Polish: UPC
• Insertion Loss (Max.): ≤ 0.3 dB
• Return Loss (Min.): ≥ 50 dB
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for backbone and horizontal cabling in structured cabling systems.
