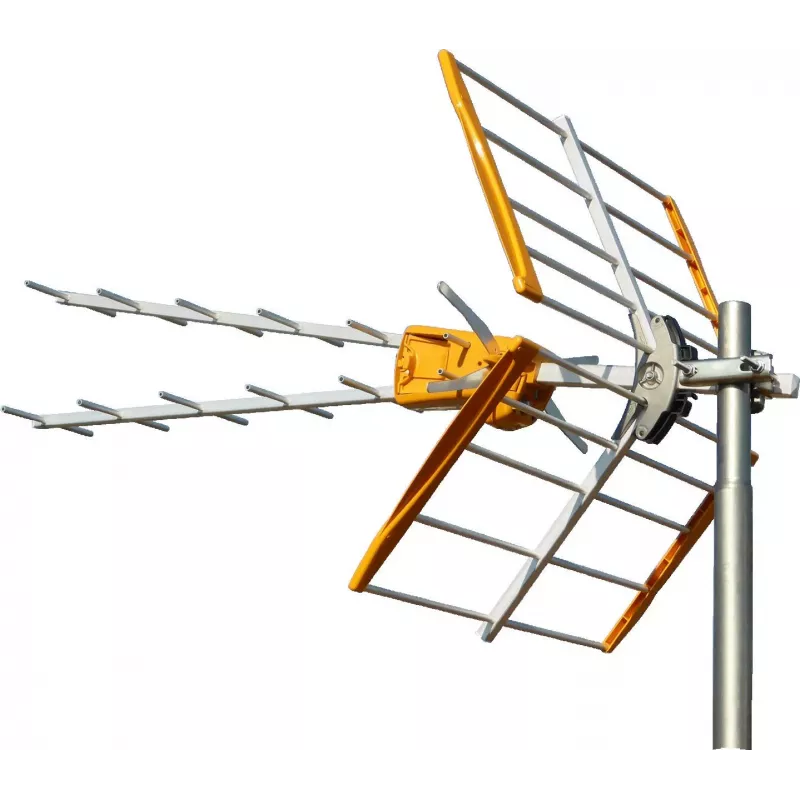

TELEVES V ZENIT UHF Terrestrial Antenna (Ch.21-48) Z.13dBi ref. 149221

The TELEVES V ZENIT UHF Terrestrial Antenna is a high-performance solution designed for long-range reception in challenging signal areas. Featuring BOSS Tech intelligent technology with automatic gain control, this antenna delivers exceptional signal quality for UHF channels 21-48 (470-694 MHz). With a passive gain of 13 dBi and active gain up to 45 dBi, it ensures reliable reception even in weak signal environments. The self-regulating output level and integrated LTE/5G filtering make it future-proof and interference-free.

Advantages

BOSS Tech intelligent antenna with automatic gain control provides optimal signal amplification without manual adjustments. The active gain up to 45 dBi ensures excellent performance in difficult reception areas. Integrated LTE700 and 5G filtering eliminates interference from mobile networks. Robust aluminum and ABS plastic construction withstands harsh outdoor conditions. Horizontal and vertical polarization flexibility allows adaptation to different broadcast configurations.

Suitable for

• Long-range UHF terrestrial TV reception
• Challenging signal areas with weak or obstructed signals
• Installations requiring high gain and interference filtering
• Outdoor mounting on mast with included clamp

Key specifications

• Frequency Range: 470-694 MHz (UHF Channels 21-48)
• Passive Gain: 13 dBi
• Active Gain (BOSS ON): Up to 45 dBi
• Output Level: Self-regulating
• Noise Figure: 2.5 dB
• Power Supply: 12-24 Vdc (BOSS ON)
• Current Consumption: 45 mA (BOSS ON)
• Beamwidth (Horizontal): 30°
• F/B Ratio: >20 dB
• Wind Load: 120 N (130 km/h), 165 N (150 km/h)
• Connector: F-type
• Polarization: Horizontal/Vertical
• LTE/5G Filtering: Yes
• Material: Aluminum, ABS Plastic
• Mounting: Mast Clamp Included

Recommendations

For optimal performance, mount the antenna outdoors with a clear line of sight to the broadcast tower. Use high-quality coaxial cable and ensure proper grounding. The BOSS Tech feature requires a compatible power supply (12-24 Vdc) to activate the intelligent gain control.
