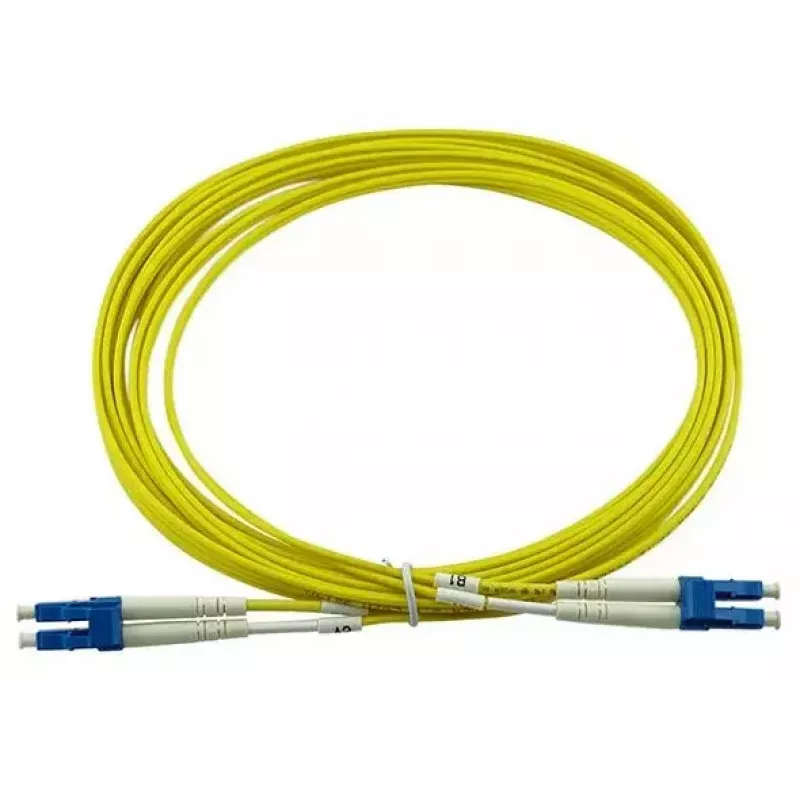

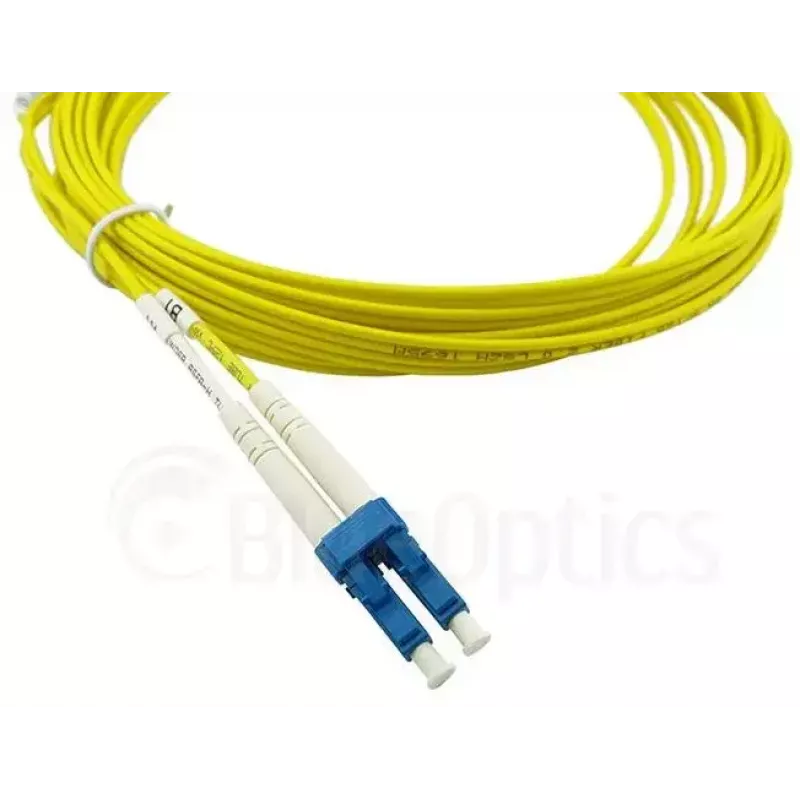

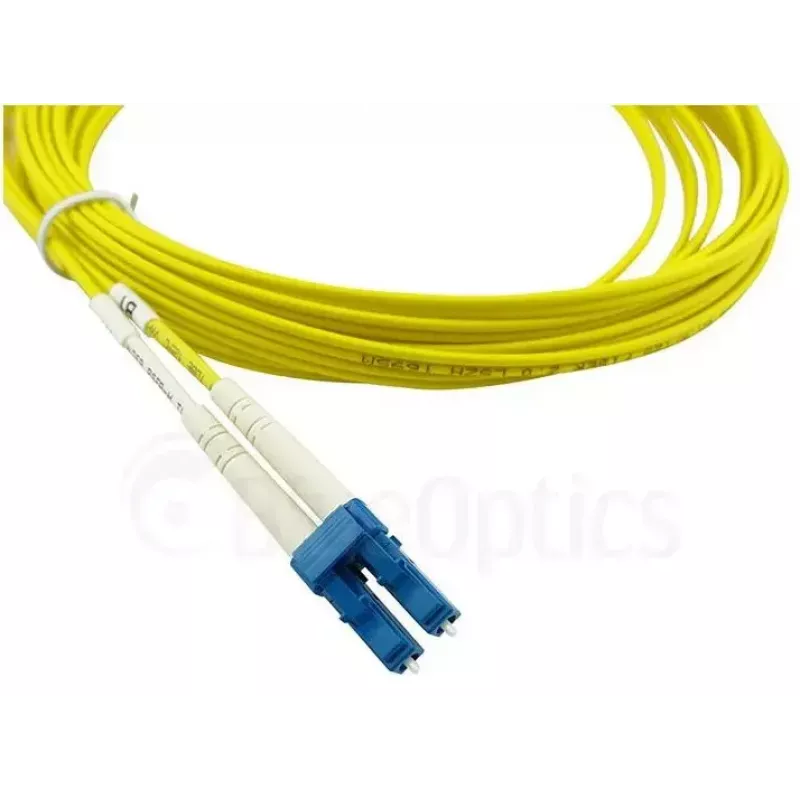

InfiniBand/fibre optic cable BlueOptics 040402G512000005M 5 m 2x LC 2x FC LC/APC

The BlueOptics 040402G512000005M is a 5 m InfiniBand/fibre optic cable designed for single-mode, full duplex data transmission. It features two LC connectors and two FC connectors and uses G.657.A1 laser-optimized single-mode fiber with a 9 µm core. The cable is intended for short patching runs in data centers, server rooms and network racks where reliable, low-loss optical connections are required. The sheath is LSZH (low smoke zero halogen) for reduced smoke and no halogen release in case of fire.

Advantages

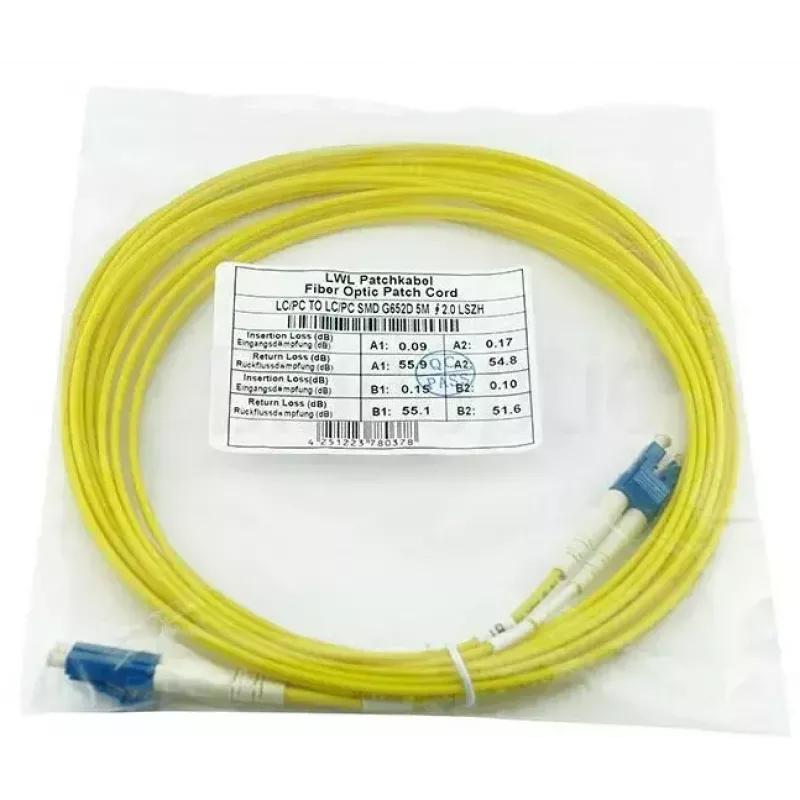

This BlueOptics cable provides low attenuation and high return loss values suitable for demanding optical links. Manufactured with branded fiber and precision connectors, the cable is tested with interferometer and OTDR to ensure consistent performance. The LSZH jacket offers enhanced safety in confined spaces, and the zirconia ceramic ferrules support a high mating cycle lifetime. Measurements for input loss and return loss are supplied with each unit.

Suitable for

Key specifications

How to use

Align and insert the LC and FC connectors into the corresponding ports on patch panels or transceivers, taking care to match transmit and receive channels for full duplex operation. Handle connectors by the boot or connector body to avoid touching the ferrule. Avoid sharp bends and maintain the minimum bend radius recommended for G.657.A1 fiber during installation. After routing, verify optical performance using a power meter and/or OTDR and compare results with the supplied measurement protocol.

Recommendations

For best long-term performance, keep connectors capped when not in use and perform regular visual inspection and cleaning with approved fiber cleaning tools. Use strain relief at termination points and avoid tight cable ties that can crease the jacket. If lower return loss is required, consider specifying an alternate polish type or request custom polishing options from the supplier.
