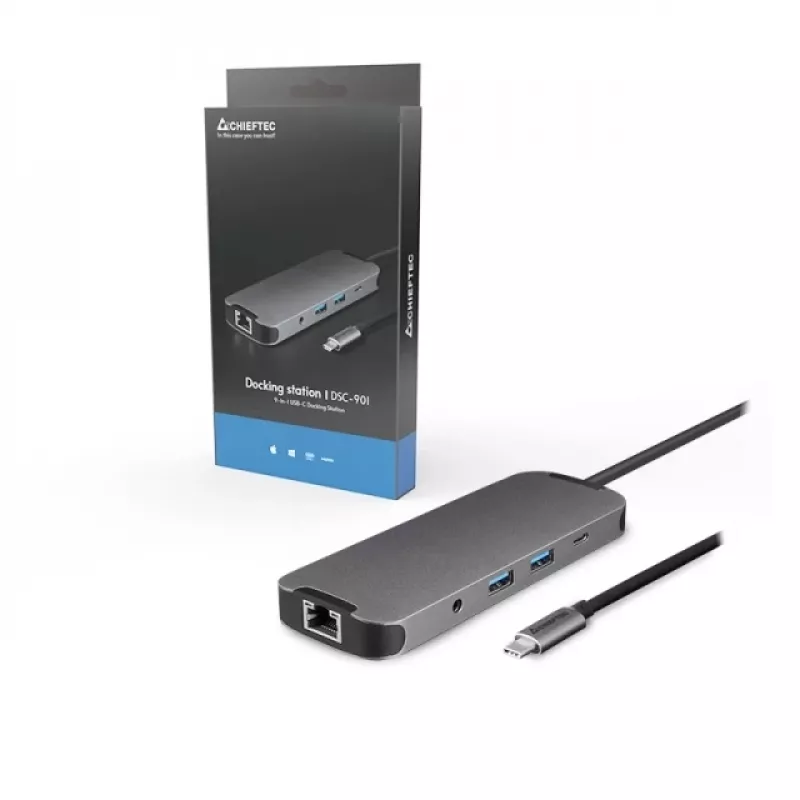

Docking Station Chieftec DSC-901 USB Type-C Grey 134mm 49mm 15mm 89.3g

The DSC-901 is a compact 9-in-1 USB Type-C docking station from CHIEFTEC designed to expand connectivity for notebooks and mobile devices. It supports USB Type-C charging with Power Delivery 3.0 up to 80W and provides video, network, storage and peripheral connections in a lightweight grey metal-and-plastic housing measuring 134 mm × 49 mm × 15 mm and weighing 89.3 g.

Advantages

The docking station consolidates multiple interfaces — HDMI 2.0 (4K@30Hz), two USB 3.2 Gen1 Type-A ports, an additional USB Type-C port, SD and MicroSD card readers, a 1 Gbps Ethernet port and a 3.5 mm audio socket — into a single portable unit. Power Delivery 3.0 enables pass-through charging of compatible laptops up to 80W while maintaining high-speed data transfer via USB 3.2 Gen1 ports. Its compact dimensions and light weight make it suitable for mobile use and easy storage in a laptop bag.

Suitable for

• Connecting a laptop to an external monitor (HDMI 2.0, up to 4K@30Hz)
• Expanding USB ports for peripherals such as mouse, keyboard and external drives
• Transferring files from SD and MicroSD cards
• Providing wired network access via 1 Gbps Ethernet
• Charging a USB-C laptop or device with Power Delivery 3.0 (up to 80W)

Key specifications

• Model: CHIEFTEC DSC-901
• Interface: USB Type-C (host)
• Power Delivery: PD 3.0, up to 80W pass-through charging
• Video output: HDMI 2.0, supports up to 4K@30Hz
• USB ports: 2 × USB 3.2 Gen1 Type-A, 1 × USB Type-C (data/power as supported)
• Card readers: SD and MicroSD slots
• Ethernet: 1 × RJ-45, up to 1 Gbps
• Audio: 3.5 mm audio socket
• Dimensions (W×D×H): 134 mm × 49 mm × 15 mm
• Weight: 89.3 g
• Colour: Grey

How to use

Connect the DSC-901 to your notebook using the built-in USB Type-C cable or port. If charging the notebook through the dock, plug a Power Delivery–capable USB-C power adapter into the dock’s USB-C power input. Attach an external display via the HDMI port, connect peripherals to the USB Type-A or Type-C ports, insert SD or MicroSD cards into the corresponding slots and connect a wired network cable to the RJ-45 port. Use the 3.5 mm audio socket for headphones or speakers if required.

Recommendations

For stable video output at 4K resolution ensure the host device’s USB-C port supports DisplayPort Alt Mode and that your HDMI cable and monitor support the required resolution and refresh rate. Use a PD 3.0 compatible charger with sufficient wattage (up to 80W) for reliable pass-through charging.
