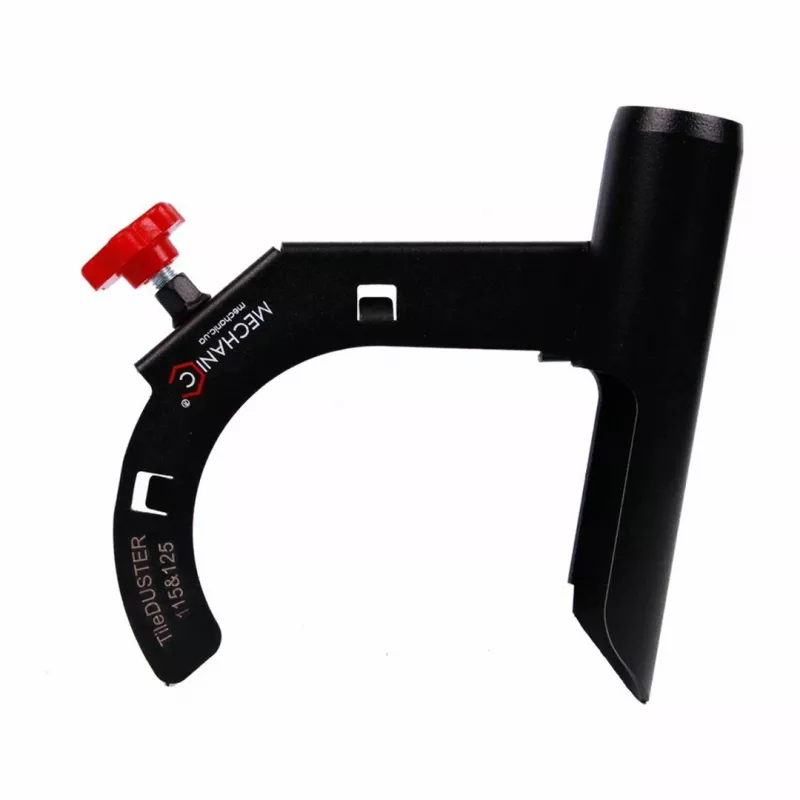

DISTAR Grooving Attachment for Tileduster Angle Grinder 115mm-125mm

Wall chasing and grooving for cables or pipes often creates clouds of dust and uneven channels. The DISTAR Grooving Attachment solves this by converting a standard 115mm–125mm angle grinder into a precise, dust-controlled grooving tool. Its integrated brush seal and 32mm extraction port capture debris at the source, keeping the work area clean and the cutting line visible.

Who is it for

Electricians, plumbers, tilers, and renovation contractors who need clean, straight grooves in tile, ceramic, porcelain, stone, concrete, or brick. Ideal for dry grooving with high dust extraction efficiency, especially in occupied spaces or finished interiors where dust control is critical.

Main features

• Universal clamp-on design fits most 115mm–125mm angle grinders with standard guard collars
• Tool-free depth adjustment up to 20mm for precise groove depth control
• Adjustable grooving width up to 12mm using included spacers
• Integrated brush seal and 32mm dust extraction port for effective dust capture
• Open front design provides clear visibility of the cutting line
• Durable impact-resistant plastic body withstands job site abuse
• Compatible with diamond grooving blades and cutting discs (M14 spindle thread)
• Supports grinder speeds up to 11,000 RPM

Specifications

• Compatible angle grinder disc diameter: 115mm - 125mm
• Maximum grooving depth: 20mm
• Maximum grooving width: 12mm
• Dust extraction port diameter: 32mm
• Mounting type: Universal clamp-on for angle grinder guard collars
• Body material: Durable impact-resistant plastic
• Spindle thread compatibility: M14
• Designed for grinder RPM: Up to 11,000 RPM
• Included accessories: Spacers for width adjustment, mounting hardware

Tips

For best results, pair this attachment with a high-quality diamond grooving blade and a compatible dust extractor. Always check the grinder's guard collar diameter before purchase to ensure a secure fit. Adjust the depth and width settings on a scrap piece of material before starting the final groove.
