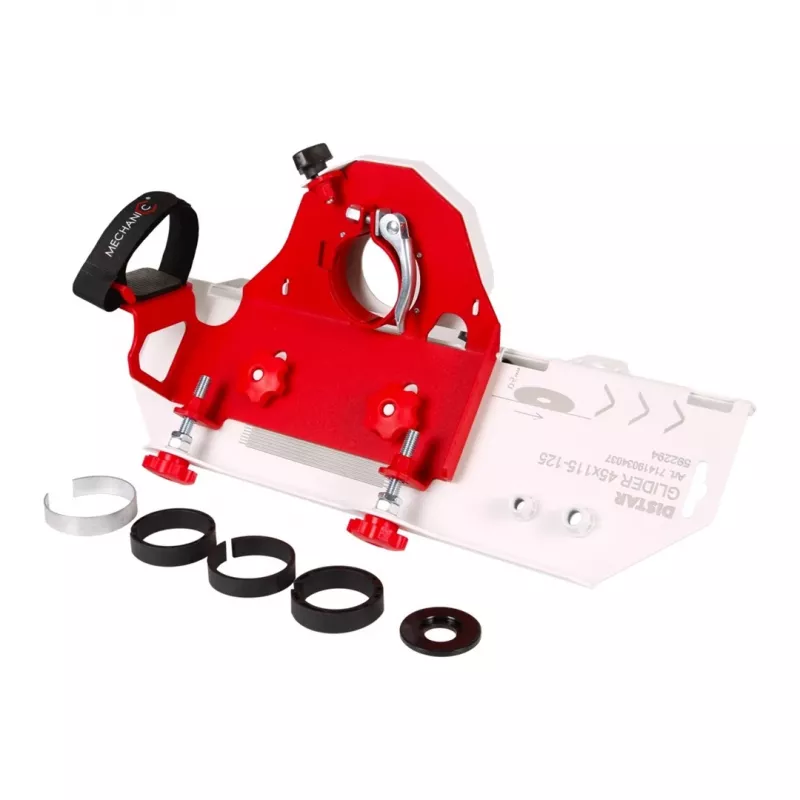

DISTAR 45° Angle Grinder Bevel Cutting Guide Glider for 115/125 mm Discs

The DISTAR 45° Angle Grinder Bevel Cutting Guide Glider is a precision attachment designed for creating accurate 45° chamfers and miter cuts on ceramic, porcelain, granite, marble, and natural stone. Compatible with 115 mm and 125 mm angle grinders with M14 spindle thread, this tool enables dry cutting with a dust extraction port (32 mm) for a cleaner workspace. The gliding mechanism features polymer rollers for smooth movement, while depth adjustment screws allow fine-tuning. Constructed from aluminum alloy and high-strength plastic, it handles tiles up to 20 mm thick. Tool-free mounting ensures quick installation. Color: Black/Silver.

Advantages

Fixed 45° cutting angle ensures consistent bevels. Compatible with two common disc sizes. Dust extraction port reduces airborne particles. Polymer rollers provide smooth gliding. Depth adjustment for precise cuts. Durable aluminum and plastic construction. Quick, tool-free installation.

Suitable for

• Chamfering edges on ceramic and porcelain tiles
• Miter cuts for stone and marble
• Bevel edges on natural stone
• Dry cutting applications

Key specifications

• Type: Angle Grinder Bevel Cutting Guide
• Cutting Angle: Fixed 45°
• Compatible Disc Diameter: 115 mm, 125 mm
• Spindle Thread: M14
• Material Compatibility: Ceramic, Porcelain Stoneware, Granite, Marble, Natural Stone
• Cutting Method: Dry Cutting
• Dust Extraction Port: Yes, 32 mm diameter
• Gliding Mechanism: Polymer Rollers
• Precision Adjustment: Depth adjustment screws
• Body Material: Aluminum Alloy, High-strength Plastic
• Maximum Tile Thickness: 20 mm
• Installation: Quick and tool-free mounting
• Color: Black / Silver
• Included Accessories: None (attachment only)

Recommendations

For best results, use with a diamond cutting disc suitable for the material. Ensure grinder is rated for the disc diameter. Always wear appropriate safety gear.
