Directional antenna QuWireless QuMax XR LTE High Band

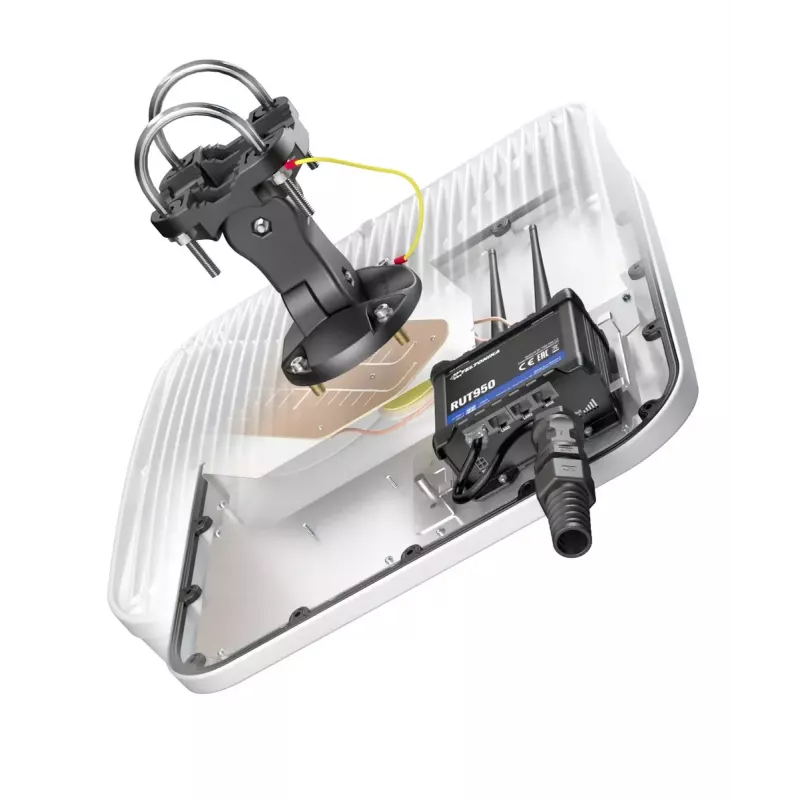

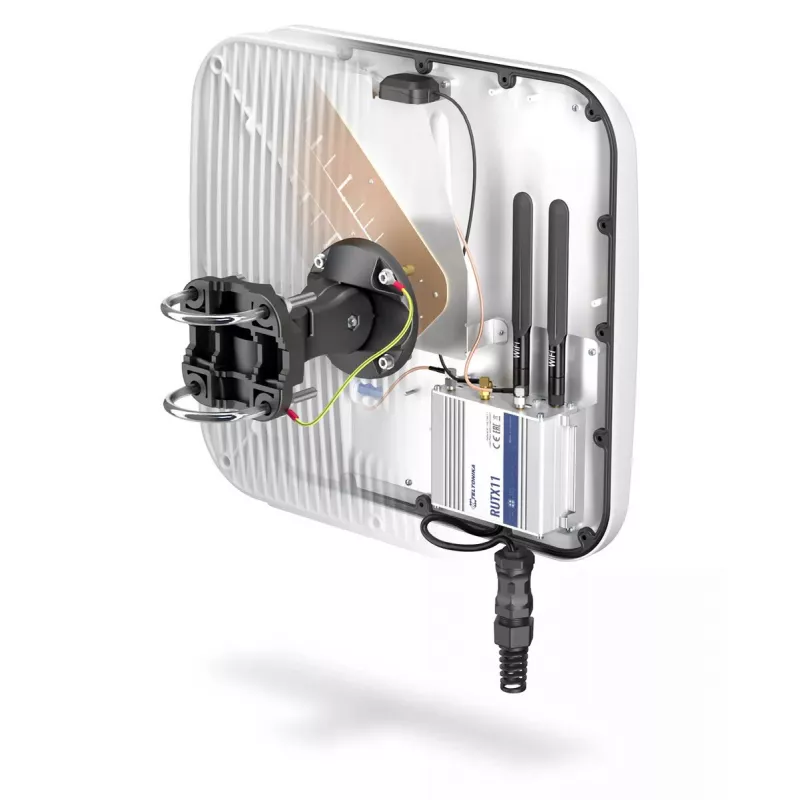

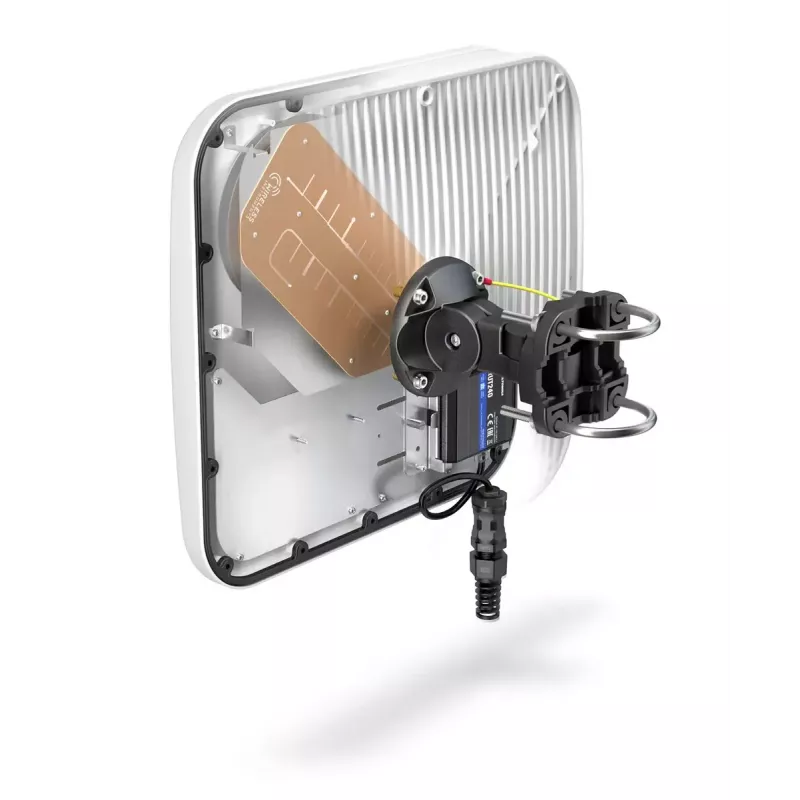

The QuWireless QuMax XR LTE High Band is a directional outdoor antenna with integrated enclosure designed to house compatible Teltonika routers (models RUT200/240/241/950/951/955/956/X09/X11). Built for long-distance links to base stations, the antenna supports multiple LTE bands with high gain and dual polarization to improve reception and transmission in fixed industrial installations. The enclosure is rated for outdoor use and provides space for genuine Teltonika internal GPS and Wi‑Fi antennas.

Advantages

The QuMax XR High Band offers high directional gain (up to 12–13 dBi across supported LTE bands) and dual polarization for stable links over long distances. Its integrated IP67-style enclosure allows mounting a Teltonika router inside, simplifying installation and protecting equipment in outdoor and industrial environments. The antenna covers a broad set of LTE bands and includes a PoE/LAN connector for convenient deployment.

Suitable for

• Fixed outdoor LTE links to distant base stations
• Industrial and remote site internet connectivity
• Installations requiring a protected enclosure for a Teltonika router
• Applications needing improved LTE signal and GPS/Wi‑Fi antenna placement

Key specifications

• Model: QuMax XR LTE High Band (MPN: AXRLH)
• Gain: up to 12–13 dBi (varies by band)
• Frequency range: 0.694–0.96 GHz and 2.3–2.7 GHz (covers multiple LTE bands)
• Polarization: dual
• Connector: PoE/LAN included
• Dimensions: 392 mm × 99 mm × 392 mm
• Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11

How to use

Mount the QuMax XR antenna at a location with clear line of sight toward the target base station and secure it using suitable mounting hardware. Install a compatible Teltonika router inside the antenna enclosure and fit genuine internal Teltonika GPS and Wi‑Fi antennas if required. Connect the router via the PoE/LAN connector and configure network settings according to the router documentation. Adjust azimuth and tilt for optimal signal strength and lock the antenna position once alignment is complete.

Recommendations

For best performance, place the antenna where it has unobstructed view to the base station, verify band compatibility with the mobile operator, and use genuine Teltonika internal antennas for GPS/Wi‑Fi functions. Regularly inspect mounting and cable connections in harsh environments.
