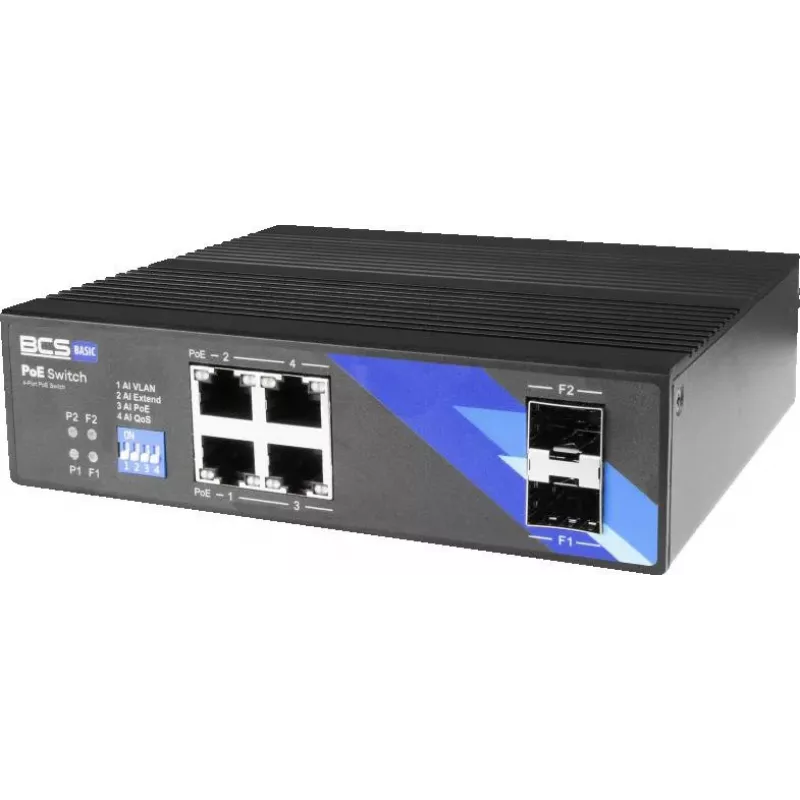

BCS BCS-B-ISP04G-2SFP Unmanaged Industrial Ethernet Switch, 4-Port Gigabit RJ45 + 2 SFP, DIN Rail, IP40

The BCS BCS-B-ISP04G-2SFP is a robust unmanaged industrial Ethernet switch designed for harsh environments. It features 4 Gigabit RJ45 ports and 2 Gigabit SFP slots, providing reliable network connectivity for industrial automation, surveillance, and transportation applications. With a rugged metal housing, IP40 rating, and wide operating temperature range, this switch ensures stable performance in extreme conditions.

Advantages

This switch offers exceptional reliability and flexibility for industrial networks. Its compact DIN-rail mount design saves space, while redundant DC power input (12-55V) ensures uninterrupted operation. The fanless design guarantees silent operation and reduces maintenance. With 6KV ESD and surge protection, it safeguards connected equipment against electrical disturbances.

Suitable for

• Industrial Ethernet networks in factories, warehouses, and outdoor installations
• Video surveillance systems requiring PoE-free Gigabit connectivity
• Transportation and utility infrastructure where temperature extremes occur
• Edge computing and IoT deployments needing robust switching

Key specifications

• 4 x 10/100/1000Base-T RJ45 ports
• 2 x 1000Base-X SFP slots
• Switching capacity: 12 Gbps
• Packet forwarding rate: 8.928 Mpps
• MAC address table: 8K
• Jumbo frame support: 9K bytes
• Power input: DC 12-55V (redundant)
• Power consumption: <5W
• Operating temperature: -40°C to 75°C
• Storage temperature: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Mounting: DIN rail
• Housing: Metal, IP40 rated
• ESD protection: 6KV
• Surge protection: 6KV
• MTBF: >300,000 hours
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x

Recommendations

For optimal performance, use industrial-grade SFP modules and ensure proper grounding. This switch is ideal for creating resilient network segments in demanding environments.
