DimasTech Vandalism Switch/Button 19mm Blackline Dot RGB PD218

The DimasTech Vandalism Switch/Button 19mm Blackline Dot RGB PD218 is a panel-mounted, vandal-resistant illuminated push button designed for durable control in public, commercial and industrial environments. The 19 mm diameter actuator features RGB illumination that can indicate status or provide visual feedback, while the robust metal construction and compact form factor make it suitable for mounting in secure panels, kiosks, access control systems and machinery control panels. The device is intended for indoor use and for protected outdoor installations where a rugged, illuminated switch is required.

Advantages

This Blackline Dot switch combines mechanical reliability with a vandal-resistant metal bezel and compact 19 mm footprint. RGB illumination enables flexible status indication and improved visibility in low-light conditions. The design supports repeated mechanical actuation and secure panel mounting, providing consistent performance in areas with frequent user interaction. Together, these features deliver a durable, easy-to-integrate control element for demanding environments.

Suitable for

• Access control panels and intercom systems
• Public kiosks, vending and ticketing machines
• Industrial control panels and machine interfaces
• Security and alarm systems requiring visual indication
• Indoor installations and protected outdoor enclosures

Key specifications

• Actuator diameter: 19 mm
• Illumination: RGB multi-color LED
• Mounting style: panel-mounted with secure bezel
• Construction: vandal-resistant metal bezel and rugged actuator
• Environmental suitability: indoor and protected outdoor use
• Intended function: momentary push-button activation for circuits, signaling, or access control

How to use

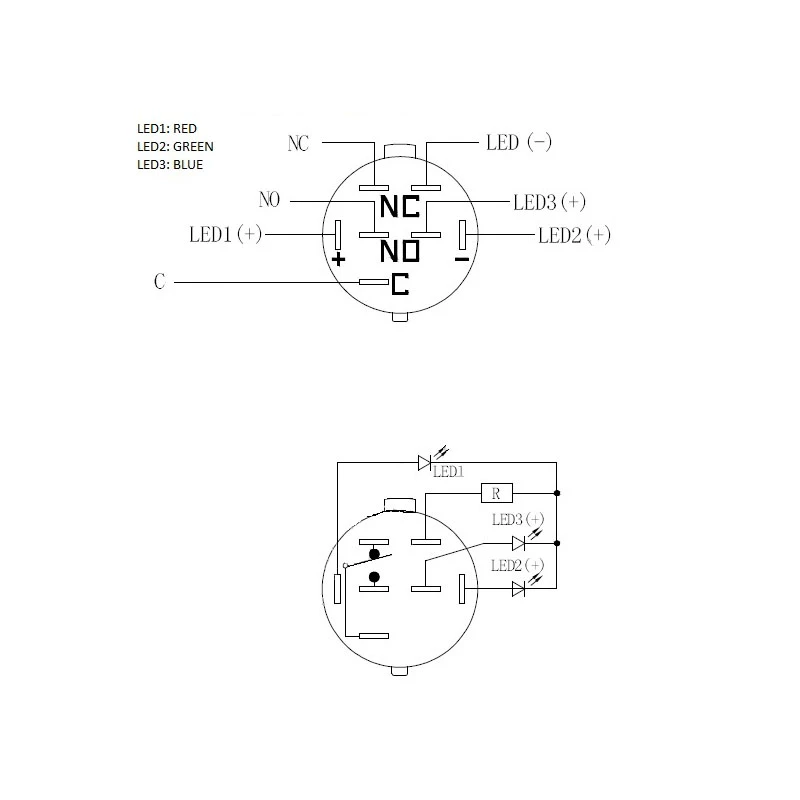

Install the switch into a properly prepared panel cutout sized for a 19 mm actuator and secure the bezel according to the panel mounting method. Wire the LED illumination to the appropriate RGB supply and control connections, and connect the mechanical contacts to the control circuit or input of the target device. Verify polarity and voltage requirements for the illumination before powering. After installation, test mechanical actuation and illumination color settings to ensure the button operates and indicates status as intended.

Recommendations

For reliable operation, mount the switch in a reinforced panel area and use sealed or protected enclosures for outdoor exposure. Ensure the LED supply voltage and control signals match the switch’s illumination specifications, and implement appropriate contact protection or debouncing in control electronics where frequent actuation occurs.
