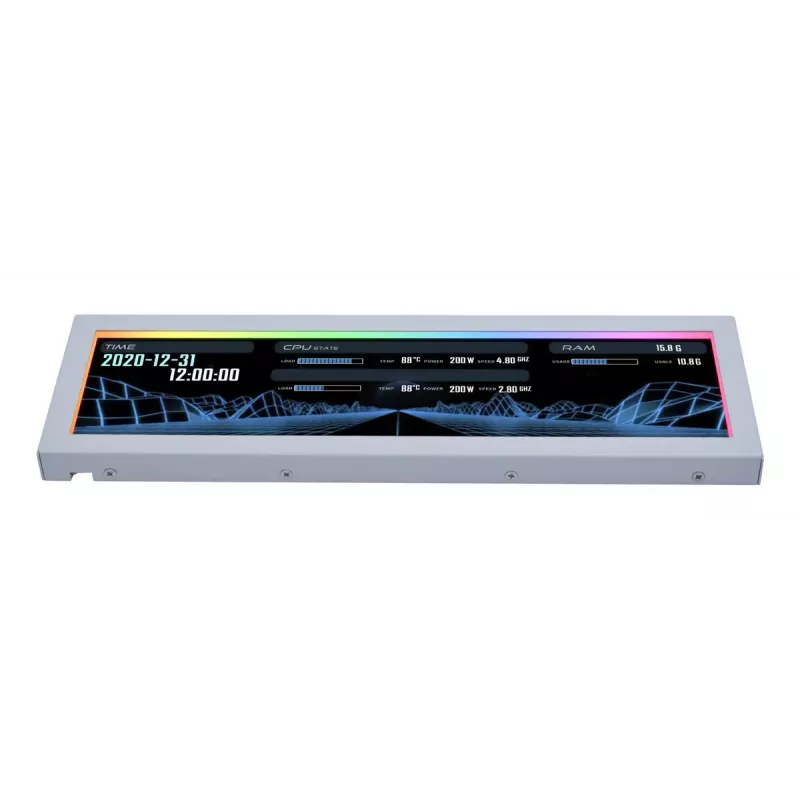

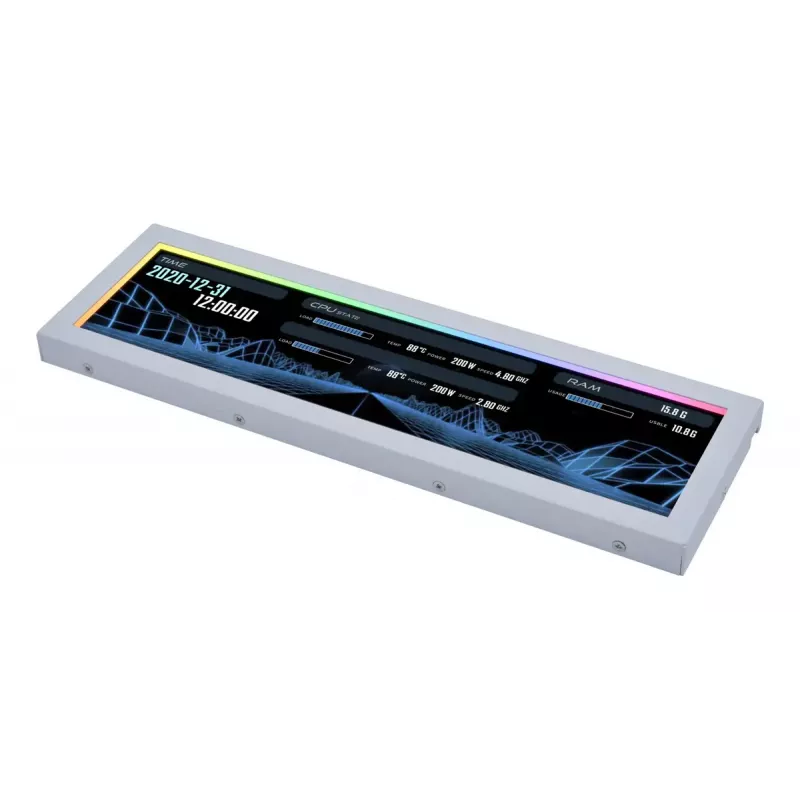

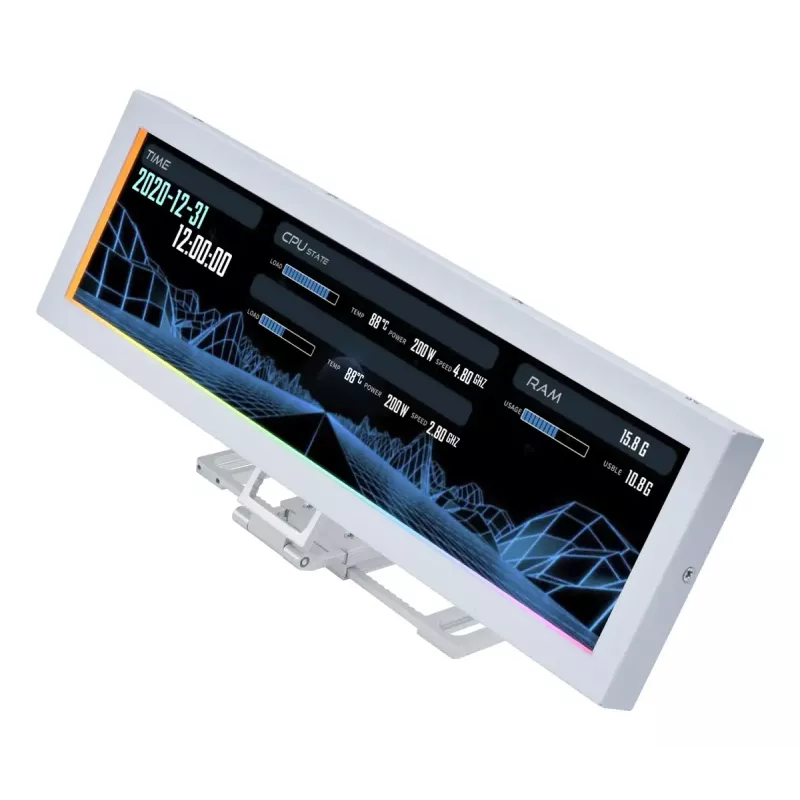

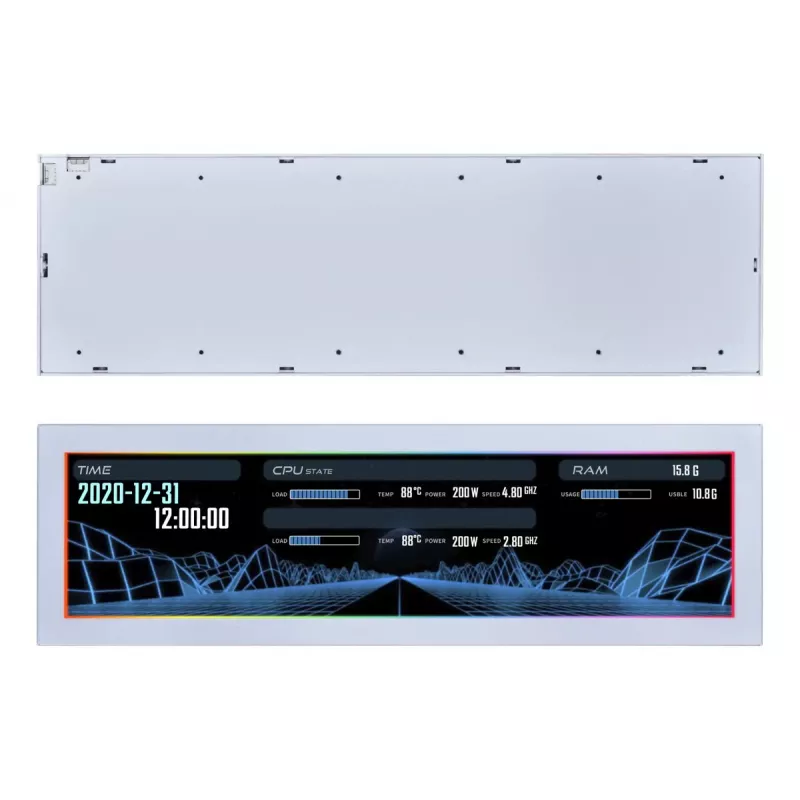

Display panel Lian Li SM088W — universal chassis display, white, 237×73×13 mm, 5 V input

The Lian Li SM088W Universal Display is an 8.8" IPS LCD designed for integration into PC builds and external mounting. With a 1920×480 resolution, 60Hz refresh rate and 500 nits brightness, the USB-powered screen functions as an independent display for animations, system statistics, images or video. The module is available in white and offers a slim 13 mm profile and a 237 mm length for compact, space-efficient installation.

Advantages

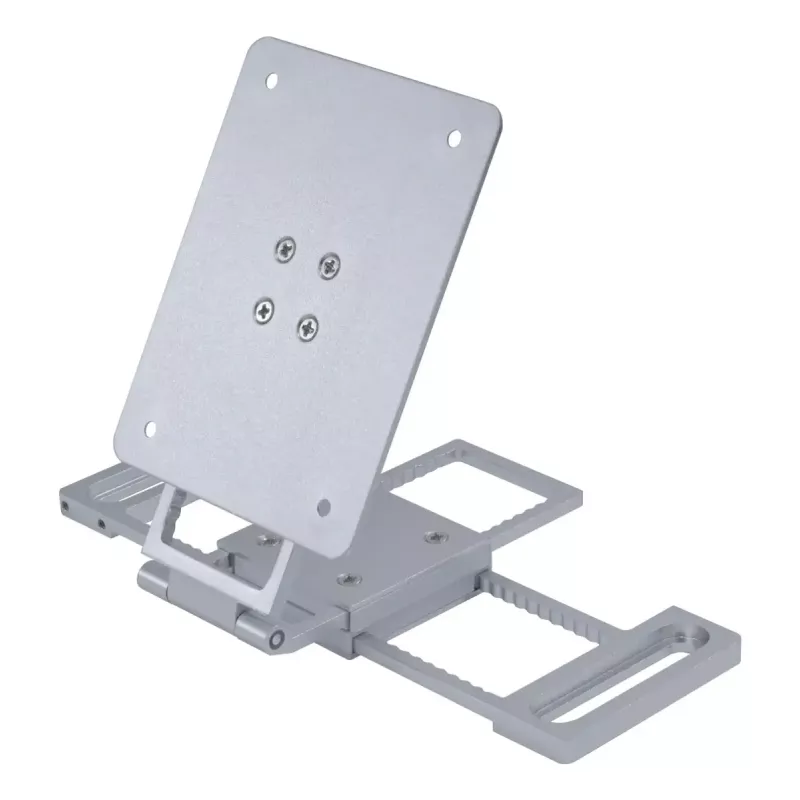

The display connects via USB without occupying GPU outputs and supports plug-and-play operation through a motherboard USB 9-pin header or a rear I/O Type-A port. It includes ARGB edge lighting controllable with L-Connect 3, a sliding rail and hinge system for precise angle adjustment, and multiple mounting options including 120 mm fan mounts with an adapter for 140 mm, adhesive flat-surface mounting, and three built-in mounting positions.

Suitable for

• Custom PC builds with minimalist or high-performance aesthetics
• Displaying system information (CPU/GPU metrics, temperatures)
• Showing custom animations, images or video playback
• Multi-screen setups or portrait/landscape orientation requirements

Key specifications

• Screen: 8.8" IPS LCD
• Resolution: 1920×480
• Refresh rate: 60 Hz
• Brightness: 500 nits
• Power/input: USB, 5 V
• Dimensions: 237 mm (width) × 73 mm (depth) × 13 mm (height)
• Mounting: 120 mm fan bracket compatibility, adapter for 140 mm, adhesive flat-surface mounting, sliding rail with hinge for angle adjustment
• Lighting: ARGB edge lighting (software controllable)
• Orientation: landscape and portrait supported

How to use

Mount the display using the included bracket on a 120 mm fan frame or the adapter for 140 mm mounts, attach it to a flat surface with the adhesive backing, or place it on case panels using the three built-in mounting positions. Connect the screen to a motherboard USB 9-pin header or a rear-panel USB Type-A port to power the device; no GPU output is required. Install L-Connect 3 on the host PC to customize templates, upload MP4/GIF/JPG/PNG content, control ARGB lighting, configure multi-screen arrangements, and enable secondary-screen or offline clock modes.

Recommendations

For optimal visibility, adjust the sliding rail and hinge to minimize glare and set the viewing angle toward the primary user. Use the adhesive mounting option on clean, flat surfaces and ensure the USB power source provides stable 5 V power. Manage content and lighting through L-Connect 3 and limit continuous high-brightness use if long-term power-on is expected.
