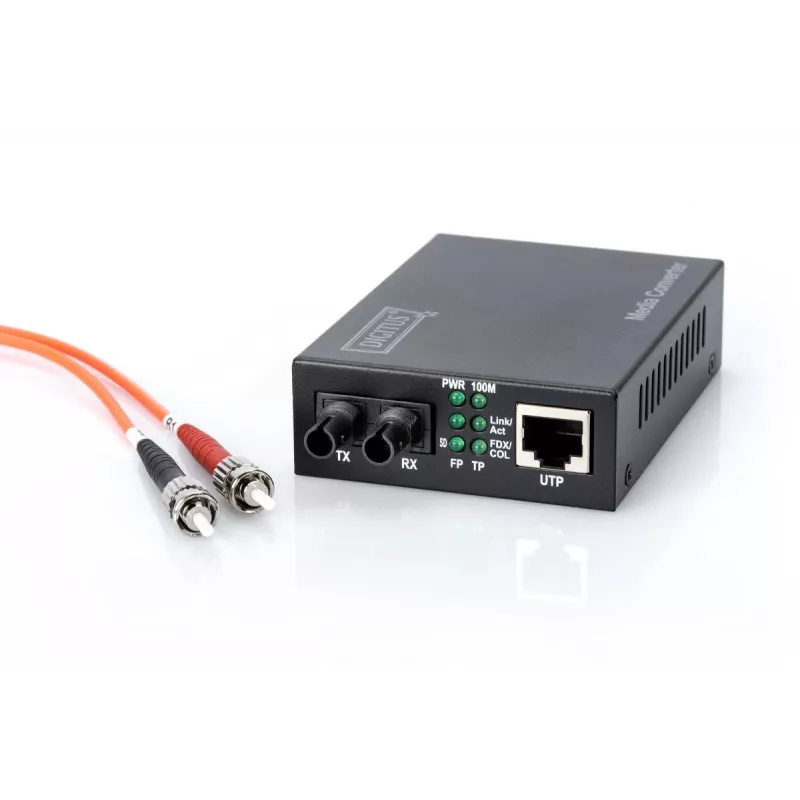

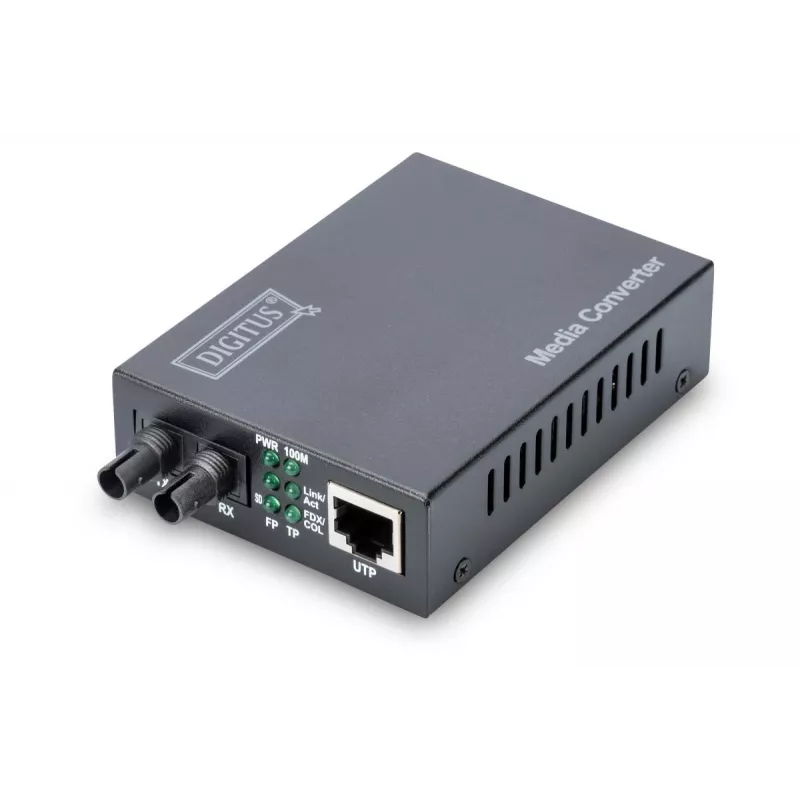

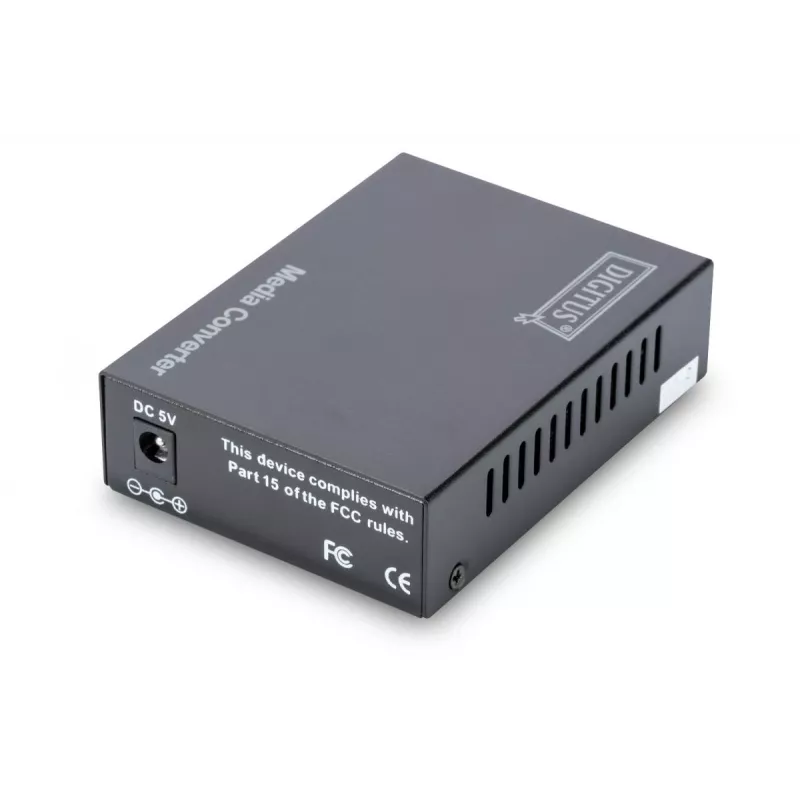

DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km

DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU ST connector, Up to 2km
R778
The perfect converter solution for various fiber media- Transmits data in high quality and additionally provides excellent reliability- Long range up to 2km by the multimode fiber dual- Automatic cable detectionThe Media Converters from DIGITUS are the ideal solution for the migration of Copper and ... Read More
Stock 2 Code 129402 Brand DIGITUS Model DN-82010-1 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The perfect converter solution for various fiber media

- Transmits data in high quality and additionally provides excellent reliability
- Long range up to 2km by the multimode fiber dual
- Automatic cable detection

The Media Converters from DIGITUS are the ideal solution for the migration of Copper and Fiber Network Signals. From now on, you are able to access the Fiber Technology and transfer network signals over several kilometers without renewing your whole Network Infrastructure. The huge variety of Products fulfil your individual needs. The intiutive operation guarantees a quick and easy Installation. The Link Fault Pass Through function offers a no-fear-networking. Your Network Administrator will be able to find and solve Network problems easily. Years of Experience and a wide range of products lets DIGITUS become a reliable Partner for your Network.

Key Highlights
  • Converts wire-based network signals into fiber optic signals
  • High quality and maximum reliability
  • 10/100Base-TX to 100Base-FX
  • Connections: 1x RJ45, 1x ST Duplex
  • Range: up to 2 km
  • Wavelength: 1310 nm
  • Multimode dual fiber
  • Automatic cable detection - Auto MDI / MDI-X function
  • Auto-detection of full and half-duplex
  • Diagnostic LEDs for status and activity monitoring
  • Link Fault Pass Through (LFP) function for simple fault detection
  • Suitable for 50/125µm and 62.5/125µm fiber optic cables
  • Transmission power: minimum -22 dBm, maximum -12 dBm
  • Reception sensitivity: Minimum -30 dBm
  • Supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
  • 128kB data buffer
  • Operating temperature: 0 to 55°C
  • Dimensions (L x W x H): 95mm x 70mm x 26mm
  • Weight: 200 g
  • Standalone converter with external power supply unit
  • Input voltage: 5V DC
  • Max. Current consumption: 800mA
  • Power consumption: 21.5W
Specifications
Auto MDI/MDI-X
Yes
Buffer size
128 KB
Connectivity technology
Wired
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Country of origin
China
DC-in jack
Yes
Dimensions (WxDxH)
95 x 70 x 26 mm
Duplex system
Full, Half
Ethernet interface type
Fast Ethernet
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
External power adapter
Yes
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Fiber mode structure
Multi-mode
Fiber optic connector
ST
Fiber ports quantity
1
Harmonized System (HS) code
85176990
Input voltage
5 V
Internal
Yes
LED indicators
Activity, Link, Power
Maximum transfer distance
2000 m
Networking standards
IEEE 802.3, IEEE 802.3u
Operating temperature (T-T)
0 - 55 °C
Package depth
60 mm
Package volume
2086.56 cm³
Package weight
500 g
Package width
216 mm
Power consumption (typical)
2.5 W
Power over Ethernet (PoE)
No
Product colour
Black
Rx power (min)
-30 dBmW
Transmission distance (max)
2 km
Tx power (max)
-12 dBmW
Tx power (min)
-22 dBmW
UK Trade Tariff code
85176200
User guide
Yes
Wavelength
1310 nm
Weight
200 g

Leaflet

Open Leaflet
