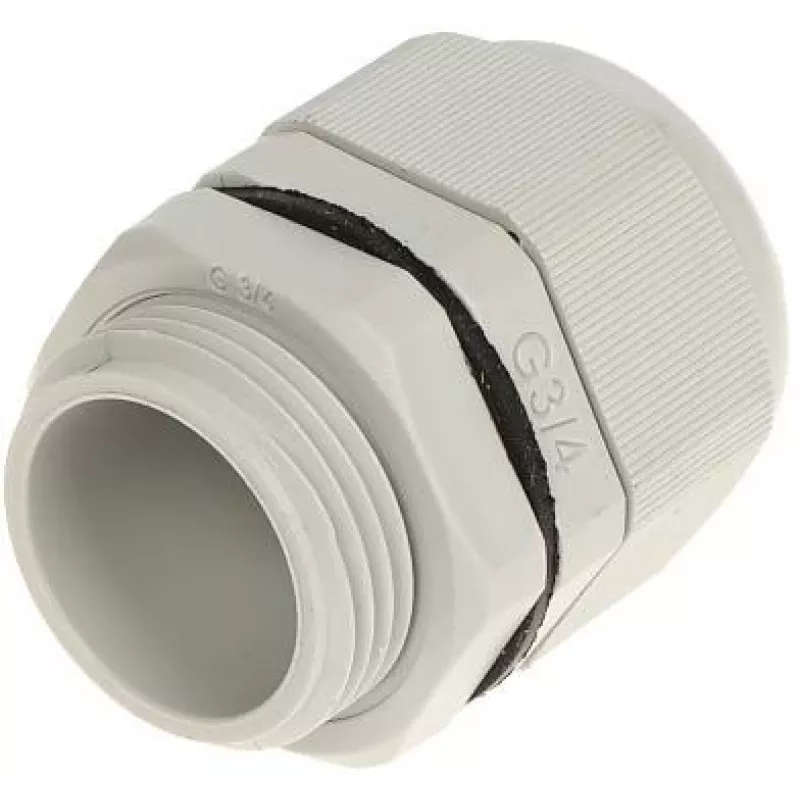

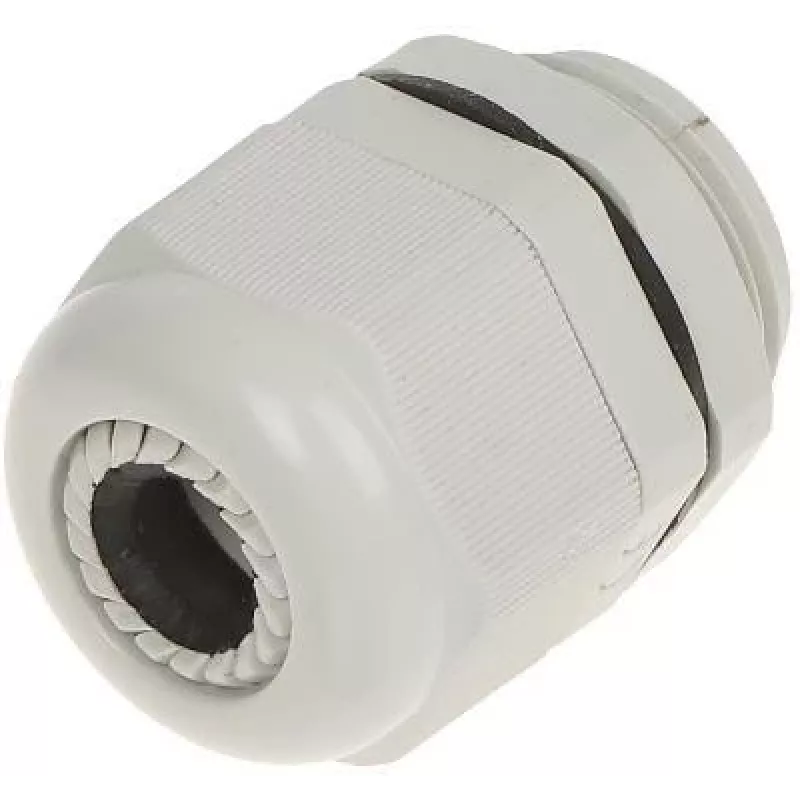

DELTA Insulated Cable Gland G3/4 IP68 13-18 mm Grey PA6

With an IP68 rating and operating range from -40°C to +100°C, this DELTA insulated cable gland delivers uncompromising environmental protection for critical electrical connections. The G3/4 parallel thread and 13-18 mm clamping range make it a versatile choice for enclosures, junction boxes, and machinery.

Overview

Engineered from halogen-free polyamide (PA6) in RAL 7035 grey, this strain relief cable gland combines mechanical robustness with excellent chemical and UV resistance. The NBR seal ensures a durable, watertight barrier, while the UL94 V-2 flammability rating adds an extra layer of safety. EN 50262 compliance guarantees consistent performance across industrial applications.

What stands out

• IP68 protection against dust and continuous immersion
• Wide temperature tolerance from -40°C to +100°C
• Halogen-free, UV-resistant PA6 body for long service life
• Pressure resistance up to 10 bar
• Integrated strain relief to protect cable connections

Technical details

• Thread type: G (BSP parallel), size G3/4
• Cable diameter range: 13 - 18 mm
• Material: Polyamide (PA6), colour grey RAL 7035
• Seal material: NBR (nitrile butadiene rubber)
• Flammability rating: UL94 V-2
• Wrench size: 30 mm; mounting hole diameter: 28.3 mm
• Standard compliance: EN 50262
• Halogen-free and UV resistant

Our verdict

A dependable, all-weather cable gland that excels in demanding environments. Its robust construction and certified performance make it a smart choice for professionals who refuse to compromise on safety and longevity.
