DeLOCK Tablet and Laptop Docking Station 4K HDMI USB Hub SD Micro SD PD 3.0

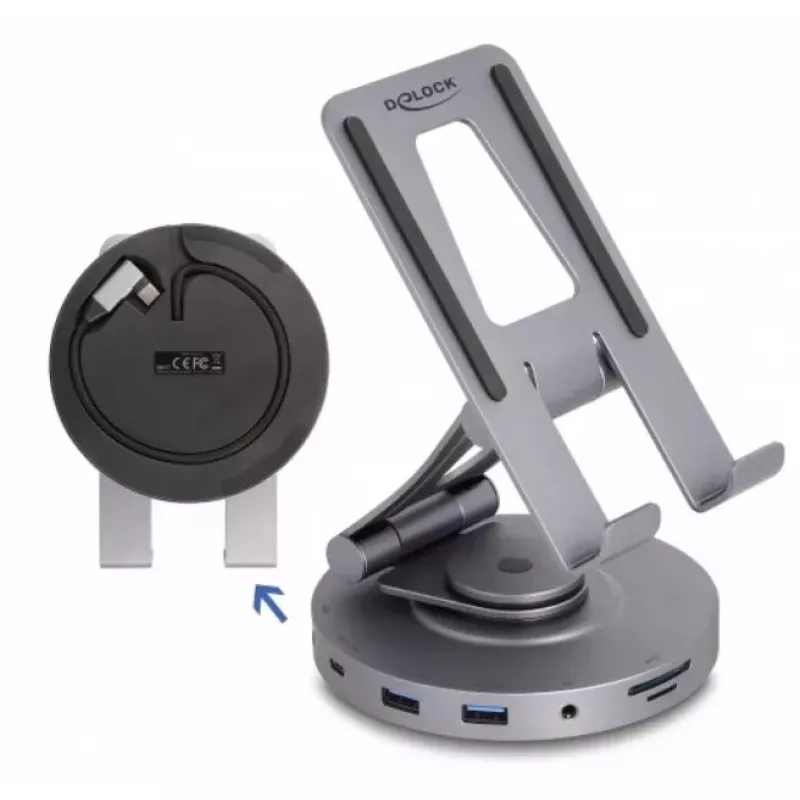

The DeLOCK Tablet and Laptop Docking Station is a wired USB hub and docking stand designed to expand connectivity for tablets and laptops. It features a 360° rotatable holder with rubber pads for slip-resistance and a recess that allows charging a device while it is upright. The dock provides HDMI output up to 4K at 60 Hz, several USB ports, SD and Micro SD card slots, and a USB-C Power Delivery port supporting up to 60 W.

Advantages

The integrated 360° rotatable mount and rubberized supports ensure stable positioning for devices and reduce the risk of slipping. The HDMI output supports up to 4K at 60 Hz for external displays, while USB-A and USB 2.0 ports enable connection of peripherals. The recessed holder permits charging while the device stands, and the USB-C PD 3.0 port can deliver up to 60 watts to charge the host device during use.

Suitable for

Key specifications

How to use

Place the docking stand on a stable surface and position your tablet or laptop in the rotatable holder. Adjust the rotation to the desired viewing angle; rubber pads prevent slipping. If required, connect the dock to the host device using a USB-C port with DP Alt Mode or Thunderbolt 3. Connect an external monitor via HDMI, attach USB peripherals to the Type-A ports, and insert SD or Micro SD cards into the respective slots. To charge the host device while in use, connect an external power adapter to the dock's USB-C PD port.

Recommendations

Use a compatible USB-C cable and a power adapter that supports USB Power Delivery up to 60 W to enable charging during operation. Ensure the host device supports DP Alt Mode or Thunderbolt 3 for video output. Place the dock on a flat surface and avoid excessive force when rotating the mount.
